BIOSTAR B660MX-E 12TH GEN INTEL MOTHERBOARD
- Intel B660 single chip
- Supports 12th Gen Processor
- WiFi 6 & 6E module
- Supports PCIe M.2 3.0 (32Gb/s)
Product Pricing
EMI Start From*
৳345
SPECIFICATIONS
Processor
Supported CPU
Support for 12th Generation Intel Core™ i9/ i7/ i5/ i3 processors and Intel Pentium
processors/ Intel Celeron processors in the LGA1700 package
processors/ Intel Celeron processors in the LGA1700 package
Mainboard
Chipset
Intel B660
Memory
Memory
Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Each DIMM supports non-ECC 4/8/16/32GB DDR4 module
Support Intel Extreme Memory Profile (XMP) memory modules
Storage
Supported Storage
Total supports 1x M.2 socket and 4x SATA III (6Gb/s) ports
4 x SATA III Connector (6Gb/s) : Supports AHCI
1 x M.2 (M Key) Socket (M2_PCIEG3_32G-SATA):
Supports M.2 Type 2240 /2260 /2280 SSD module
Supports PCI-E 3.0 x4 (32Gb/s) & SATA SSD
4 x SATA III Connector (6Gb/s) : Supports AHCI
1 x M.2 (M Key) Socket (M2_PCIEG3_32G-SATA):
Supports M.2 Type 2240 /2260 /2280 SSD module
Supports PCI-E 3.0 x4 (32Gb/s) & SATA SSD
Graphics
Graphics
Supports DX12
Supports HDCP
Supports HDCP
Networking & Connectivity
LAN
Intel I219V
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
WiFi
1 x WIFI Antenna Port
Audio & Microphone
Audio
(ALC897)
7.1 Channels, High Definition Audio, (No Front)
7.1 Channels, High Definition Audio, (No Front)
Ports
Slots
1 x PCIe 3.0 x1 Slot
1 x PCIe 4.0 x16 Slot
1 x PCIe 4.0 x16 Slot
Internal I/O Ports
4 x SATA III Connector (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
* M.2 (E key) Wi-Fi card is not provided
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
* M.2 (E key) Wi-Fi card is not provided

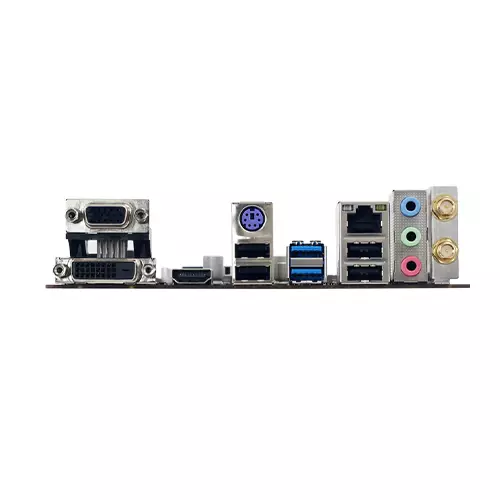

External I/O Ports
1 x WIFI Antenna Port
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI
1 x VGA+DVI Port
2 x USB 3.2 (Gen1) ports
4 x USB 2.0 ports
1 x LAN port
3 x Audio Jack
1 x PS/2 Keyboard/ Mouse Port
1 x HDMI
1 x VGA+DVI Port
2 x USB 3.2 (Gen1) ports
4 x USB 2.0 ports
1 x LAN port
3 x Audio Jack
USB
4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports(4 on rear I/Os and 4 via internal headers)
8 x USB 2.0 ports(4 on rear I/Os and 4 via internal headers)
HDMI
Supports HDMI 4K2K
Physical Specification
Form Factor
Micro ATX
Dimension
23.6cm x 20.8cm ( W x L )
Warranty Information
Warranty
3 Years
DESCRIPTION
Biostar B660MX-E 12th Gen Intel Motherboard in Bangladesh
Super Hyper PWM
Delivers stable power with 100% fixed voltage. Ensures all critical components are under protection. Offers excellent precision, performance, and reliability
PCIe 4.0
Supports a 16GT/s bit rate. Maintains backward compatibility. It's 2X bandwidth than PCIe 3.0
PCIe M.2 32Gb/s
Delivers the highest bandwidth. Provides lower latency. It's 5 times faster compared with SATA III 6Gb/s
Intel GbE LAN
Reduces your CPU load. Increases your network speed. Enhances network performance
Debug LED. Informs you on the status of your board or hardware. Helps you identify any issues with your board or hardware
Smart Update
Biostar Smart Update is a utility that can help users run an online update. It can download the drivers for your motherboard from the Biostar official website and install them automatically
WiFi 6 Support
Improves network efficiency. Provides a wider range to increase network capacity
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the BIOSTAR B660MX-E 12TH GEN INTEL MOTHERBOARD Price in Bangladesh 2026 ?
The Biostar B660MX-E Price in BD is 9,800৳ . This BIOSTAR B660MX-E 12TH GEN INTEL MOTHERBOARD Manufacturing by Biostar Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Biostar B660MX-E by 9,800৳ and its regular price is 11,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
