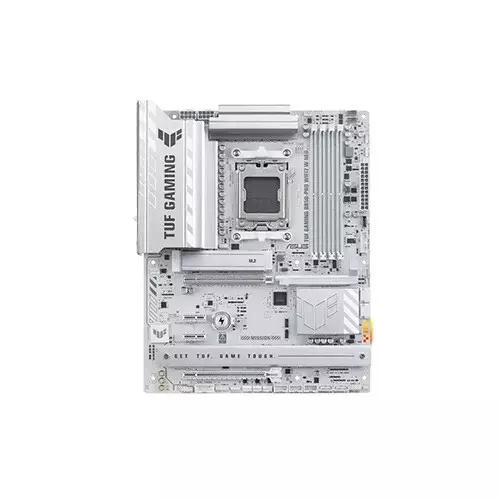

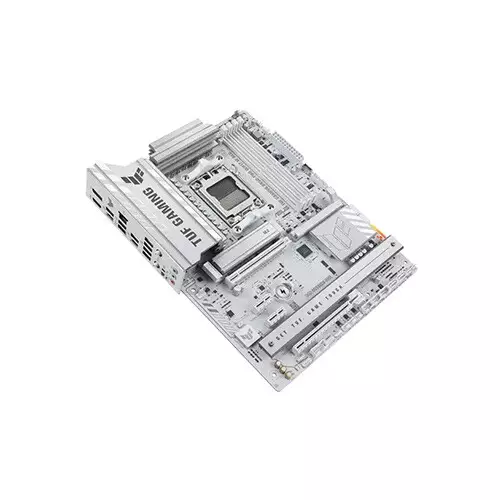

ASUS TUF GAMING B850-PRO WIFI7 W NEO Ryzen AM5 ATX Gaming Motherboard

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

AMD B850 Chipset

64MB (512Mb) Flash ROM, UEFI AMI BIOS

4 x DIMM slots, max. 256GB, DDR5

Supports up to

8400+MT/s(OC)*/8200+MT/s(OC)
 with Ryzen 9000 Series Processors,

9000+MT/s(OC)*/8600+MT/s(OC)
with Ryzen 8000 Series Processors,

8000+MT/s(OC)*/8000+MT/s(OC)
with Ryzen 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM

Dual-channel memory architecture

Supports AMD Extended Profiles for
Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP)

Max Manual Overclocking: Achievable
with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components.

XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS performance profile.

Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/.

Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.

Supported memory types, data rate (speed),
and number of DRAM modules vary
depending on the CPU and memory configuration

AMD RAIDXpert2 Technology

Ryzen 9000 & 8000 & 7000 Series
Processors: RAID 0/1/5/10

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s
ports

AMD Ryzen 9000 & 7000 Series Desktop
Processors

M.2_1 slot (Key M), type 2280
(supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type
2242/2260/2280/22110
(supports PCIe 4.0 x4 mode)

AMD Ryzen 8000 Series
Desktop Processors

M.2_1 slot (Key M), type 2280
(supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type
2242/2260/2280/22110
(supports PCIe 4.0 x4/x2 mode)*

AMD B850 Chipset

M.2_3 slot (Key M), type 2280
(supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Specifications vary by CPU types.

 The M.2_3 slot shares bandwidth with the PCIEX16(G4) slot. When either the
PCIEX16(G4) or M.2_3 slot is occupied,
that slot runs at PCIe 4.0 x4 mode.

1 x DisplayPort

1 x HDMI port

Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

Supports max. 8K@30Hz as specified in
DisplayPort 1.4.

Supports 4K@60Hz as specified in HDMI 2.1.

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Wi-Fi 7 (Realtek RTL8922AE)

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 160MHz bandwidth

Bluetooth v5.4 (support LE Audio)

Wi-Fi features may vary depending
on the operating system.

For Windows 11, Wi-Fi 7 will
require a version 24H2 or later
for full functionality. Windows 11
21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, only Wi-Fi 6 is supported.

Wi-Fi 6GHz frequency band and
bandwidth regulations may vary between countries.

The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications.

Realtek ALC1220P 7.1 Surround Sound
High Definition Audio CODEC*

- Impedance sense for front and
rear headphone outputs

- Internal audio Amplifier to enhance
the highest quality sound for
headphones and speakers

- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo
playback output and 113 dB SNR
recording input (Line-in)

- Supports up to 32-bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Due to limitations in HDA bandwidth, 32-bit/192 kHz is not supported for 7.1 Surround Sound audio.

AMD Ryzen 9000 & 7000 Series Desktop
Processors

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD B850 Chipset 1 x PCIe 4.0 x16 slot
(supports x4 mode) 2 x PCIe 4.0 x1 slots
Please check the PCIe bifurcation table
on the support site (https://www.asus.com/support/FAQ/1037507/) Specifications vary by CPU types.
The PCIEX16(G4) slot shares bandwidth with the M.2_3 slot. When either the PCIEX16(G4) or M.2_3 slot is occupied, that slot runs at PCIe 4.0 x4 mode. When both slots are occupied, each runs at PCIe 4.0 x2 mode.

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connectors

Storage Related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector
(supports USB Type-C)

1 x USB 5Gbps header
supports 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6
additional USB 2.0 ports

Miscellaneous

3 x Addressable RGB Gen 2 headers

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x 10-1 pin Front Panel System header

1 x Thunderbolt (USB4) header

4 x USB 10Gbps ports
(2 x Type-A + 2 x USB Type-C)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack button

1 x Clear CMOS button

Rear USB (Total 10 ports)

4 x USB 10Gbps ports
(2 x Type-A + 2 x USB Type-C)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 9 ports)

1 x USB 20Gbps connector
(supports USB Type-C)

1 x USB 5Gbps header supports
2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6
additional USB 2.0 ports

USB Type-C power delivery
output: max. 5V/3A.

Windows 11

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- MLO Wizard

ASUS DriverHub

- ASUS MB Manager

- ASUS AI Advisor

- TUF GAMING CPU-Z

- ASUS GlideX

- TurboV Core

- Norton 360 for Gamers (60 Days Free Trial)

- WinRAR (40 Days Free Trial)

DTS Audio Processing

Adobe Creative Cloud (Free Trial)**

UEFI BIOS

Integrated WiFi Driver Support

AI Cache Boost

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

Asynchronous Clock

ASUS TUF PROTECTION

- DIGI+ VRM
(- Digital power design with DrMOS)

- ESD Guards

- TUF LANGuard

- Overvoltage protection

- SafeSlot

- Stainless-steel back I/O

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- PCIe Slot Q-Release

- Q-Antenna

- Q-Dashboard

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow],
VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack button

- BIOS FlashBack LED

- Clear CMOS button

- ProCool

- Pre-mounted I/O shield

Aura Sync

- Addressable RGB Gen 2 headers

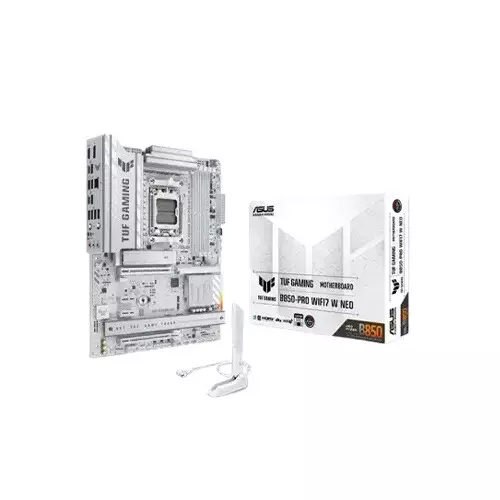

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x TUF Gaming sticker

2 x M.2 rubber packages

Documentation

1 x Quick start guide

ATX Form Factor

12 inch x 9.6 inch (30.5 cm x 24.4 cm)

3 Years
