ASUS TUF GAMING B850-E WIFI AMD AM5 DDR5 ATX Motherboard
- CPU - AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series
- Chipset - AMD B850 Chipset
- Memory - 4 x DIMM slots, max. 256GB, DDR5
- Form Factor - ATX , 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
7000 Series Desktop Processors*
Mainboard
Memory
Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Storage
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Graphics
1 x HDMI port***
* Graphics specifications may vary between CPU types.
Please refer to AMD CPU specifications.
** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Networking & Connectivity
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth v5.3**
* WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's
website for the latest specifications.
TUF LANGuard
Audio & Microphone
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* A chassis with an HD audio module in the front panel is required to support 7.1
Surround Sound audio output.
Ports
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header

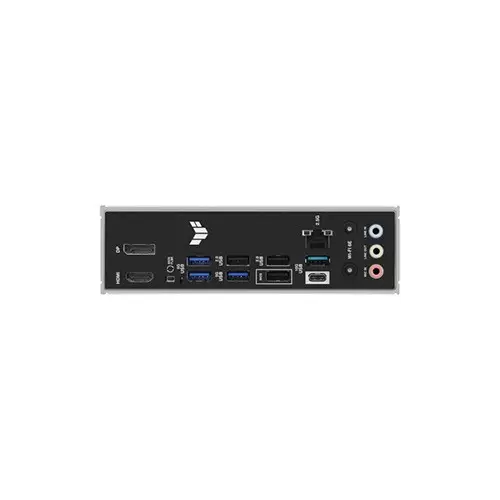

3 x USB 5Gbps ports (3 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C)
3 x USB 5Gbps ports (3 x Type-A)
3 x USB 2.0 ports (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A.
Software
wifi/techspec/#:~:text=ASUS%20Exclusive%20Software,%2D%20ASUS%20MyHotkey
Special Features
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable RGB Gen 2 headers
Others
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF Gaming sticker
1 x M.2 rubber package
2 x Screw packages for M.2 SSD
Documentation
1 x Quick start guide
Physical Specification
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x1 mode)
1 x PCIe 4.0 x1 slot
* Please check the PCIe
Technical Info
Warranty Information
DESCRIPTION
ASUS TUF GAMING B850-E WIFI AMD AM5 DDR5 ATX Motherboard Price in BD
The ASUS TUF GAMING B850-E WIFI is an ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series desktop processors with the AM5 socket. Powered by the AMD B850 chipset, it supports up to 256GB of DDR5 memory across four DIMM slots, with overclocked speeds of 8000+ MT/s depending on the processor and memory configuration. For storage, the ASUS AMD motherboard provides three M.2 slots and four SATA 6Gb/s ports. It supports PCIe 5.0 graphics connectivity with compatible Ryzen 9000 and 7000 Series processors, while Ryzen 8000 Series configurations vary. Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gb Ethernet offer flexible network connectivity for gaming and everyday computing.
The board also features HDMI 2.1 and DisplayPort 1.4 outputs, USB Type-C connectivity, BIOS FlashBack, and Aura Sync addressable RGB headers. ASUS TUF protection features, VRM heatsinks, M.2 cooling, and Q-Design technologies help simplify installation and system maintenance. The motherboard comes with a 3-year warranty.
Why Buy ASUS TUF GAMING B850-E WIFI From Tech Land BD
Tech Land BD offers a place to check the ASUS TUF GAMING B850-E WIFI motherboard's current price in Bangladesh and purchase options. Before buying, confirm the latest price, stock availability, warranty coverage, and delivery details. Check your processor's compatibility and memory requirements to get the right configuration for your PC build.
FAQ
Does the ASUS TUF GAMING B850-E WIFI support Ryzen 9000 processors?
Yes. It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket.
Can I install three M.2 SSDs on this motherboard?
Yes. It has three M.2 slots and four SATA 6Gb/s ports. Supported M.2 speeds vary depending on the installed Ryzen processor.
What networking options are available for gaming and file transfers?
The motherboard includes Wi-Fi 6E, Bluetooth 5.3, and Realtek 2.5Gb Ethernet, giving you both wireless and wired connectivity options.
