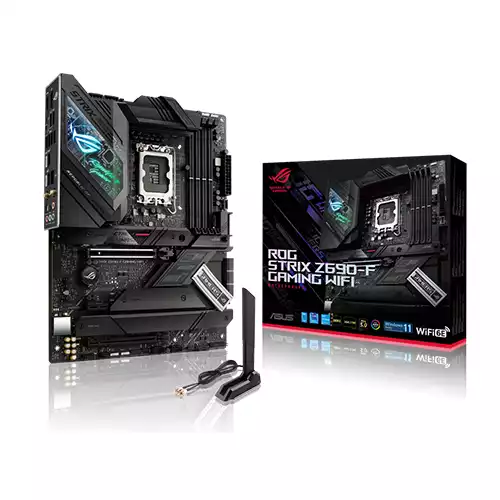

ASUS ROG STRIX Z690-F GAMING WIFI LGA1700 ATX Motherboard
ASUS ROG STRIX Z690-F GAMING WIFI LGA1700 ATX Motherboard
ASUS ROG STRIX Z690-F GAMING WIFI LGA1700 ATX Motherboard - 1
ASUS ROG STRIX Z690-F GAMING WIFI LGA1700 ATX Motherboard - 2

ASUS ROG STRIX Z690-F GAMING WIFI LGA1700 ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025063735
Brand : Asus
Model : ROG STRIX Z690-F GAMING WIFI
Warranty : 3 Years
  • ATX Form Factor
  • Intel Z690 Chipset
  • LGA 1700 Socket
  • 4 x Dual-Channel DDR5 RAM Slots

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel Z690 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Storage

Supported Storage SATA 6 x SATA III

M.2 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)

1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4)

1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, SATA (Unspecified))

U.2 None

Optane Memory Support Yes

RAID Support RAID 0, 1, 5 (M.2)

RAID 0, 1, 5, 10 (SATA)

Graphics

Graphics 1 x DisplayPort

1 x HDMI port

Audio & Microphone

Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Impedance sense for front and rear headphone outputs

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

Supports up to 32-Bit/384 kHz playback"

Audio Features

SupremeFX Shielding Technology

ALC4080 + Savitech SV3H712 AMP

Gold-plated audio jacks

Rear optical S/PDIF out port

Premium audio capacitors

Audio cover

500/1000 beshi hobe price barcode

Ports

Slots Intel® 12th Gen Processors*

1 x PCIe 5.0 x16 slot

Intel® 12th support PCIe 5.0 x16 mode

Intel® Z690 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode or x4/x4 mode)

1 x PCIe 3.0 x1 slot
Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

Storage related

4 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x BMC header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt header

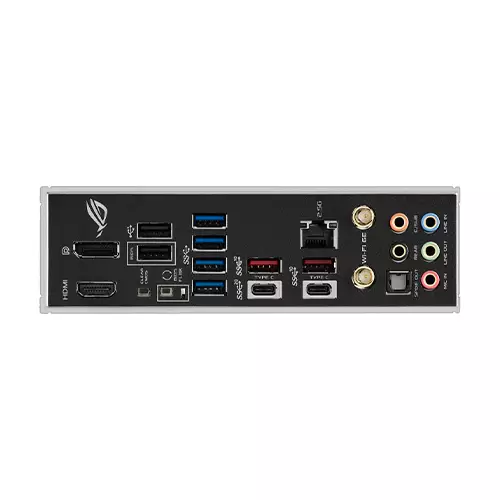

USB Rear USB:

Total 10 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:

Total 7 ports

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Physical Specification

Form Factor ATX
Dimension 30.5cm x 24.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

ASUS ROG Z690-F GAMING WIFI Motherboard

The ASUS ROG Z690-F GAMING WIFI Motherboard from ASUS. Designed around Intel's 12th Gen processors, this motherboard provides enhanced system-wide functionality by allowing you to install a wide range of components, making this ideal for gaming enthusiasts.Based off the Intel Z690 chipset, you get an LGA1700 socket, four dual-channel DDR5 RAM slots, six SATA III ports, and four M.2 interfaces, all working in tandem to provide enhanced system performance. Connect a variety of graphics and utility cards with one PCIe 5.0 x16, one PCIe 3.0 x16, and one PCIe 3.0 x1 slot. USB 3.2 Gen 1, Gen 2, and Gen 2x2 ports allow you to use a wide range of peripherals such as keyboards, mice, external drives, and more. Bluetooth 5.2 technology provides wireless connectivity for devices such as controllers and headphones. Wi-Fi 6 (802.11ax) connectivity allows you to use wireless networking or use the 2.5 Gigabit Ethernet port, both suitable for competitive online gaming. Additionally, the ASUS ROG Z690-F GAMING WIFI Motherboard supports both Windows 10 and 11 (64-bit) right out of the box.



[product_table id="34" limit="10" type="filter" filter_category="6082"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS ROG STRIX Z690-F GAMING WIFI LGA1700 ATX Motherboard Price in Bangladesh 2026 ?

The Asus ROG STRIX Z690-F GAMING WIFI Price in BD is 60৳ . This ASUS ROG STRIX Z690-F GAMING WIFI LGA1700 ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG STRIX Z690-F GAMING WIFI by 60৳ and its regular price is 567,890৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
