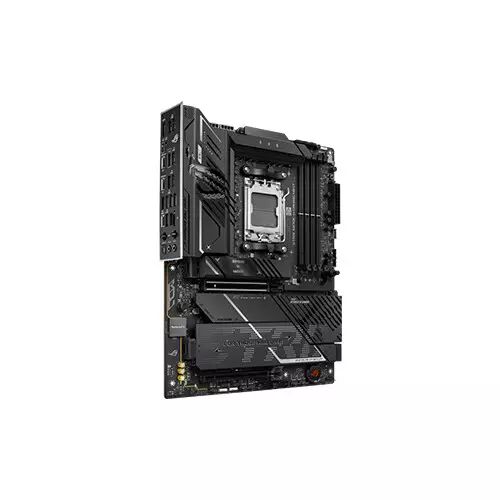

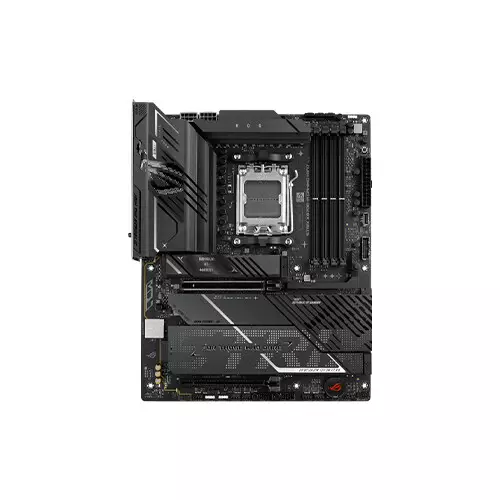

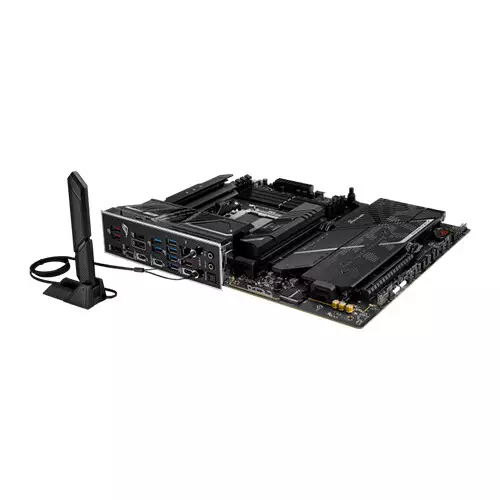

ASUS ROG STRIX X870E-H GAMING WIFI7 AM5 DDR5 ATX Gaming Motherboard

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

AMD X870E

256 Mb Flash ROM, UEFI AMI BIOS

4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen

9000 & 8000 & 7000 Series Processors

Dual-channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

Supports DIMM Fit / DIMM Fit Pro

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.

For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site.

Or visit https://www.asus.com/support/download-center/.

Adjustments will be made based on the specifications of mass-produced memory products available on the market.

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*

AMD Ryzen 8000 Series Desktop Processors*

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)

M.2_2 slot (Key M), type 2280/22110 (Not supports)**

AMD X870E Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* M.2_2 shares bandwidth with PCIEX16(G5).

When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.

** M.2_2 will be disabled when using AMD

Ryzen 8000 Series Desktop Processors.

1 x HDMI port**

2 x USB4 (40Gbps) ports support USB

Type-C display outputs***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports 4K@60Hz as specified in HDMI 2.1.

*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a

**** VGA resolution support depends on the processors or graphics cards' resolution.

1 x Realtek 5Gb Ethernet

ASUS LANGuard

Wi-Fi 7 (Realtek RTL8922AE)

2x2 Wi-Fi 7* (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth

*Wi-Fi features may vary depending on the operating system

For,

Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,

Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

For,

Windows 10, only Wi-Fi 6 is supported.

** Wi-Fi 6GHz frequency band and bandwidth Regulations may vary between countries.

Bluetooth v5.4

The Bluetooth version may vary, please Refer to the Wi-Fi module manufacturer's website for the latest specifications.

Realtek ALC1220P 7.1 Surround Sound

High Definition Audio CODEC*

- Impedance sense for front and rear

headphone outputs

- Internal audio Amplifier to enhance the

highest quality sound for headphones and speakers

- Supports: Jack-detection,

Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback

output and 113 dB SNR recording input (Line-in)

- Supports up to 32-bit/192 kHz

playback*

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio.

Make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

AMD Ryzen 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors*

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870E Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check the PCIe bifurcation table

on the support site (https://www.asus.com/support/FAQ/1037507/).

** Specifications vary by CPU types.

- To ensure compatibility of the device

installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

Storage Related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB Type-C)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable RGB Gen 2 headers

1 x Chassis Intrusion header

1 x CPU Overvoltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x Start button

1 x 10-1 pin Front Panel System header

1 x Thermal Sensor header

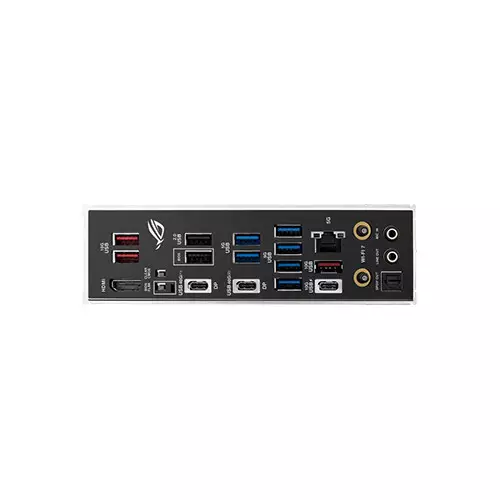

2 x USB4 (40Gbps) ports(2 x USB Type-C)

4 x USB 10Gbps ports (3 x Type-A + 1 x USB

Type-C with up to 30W PD/PPS Fast-charge)**

6 x USB 5Gbps ports (6 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x HDMI port

1 x Wi-Fi module

1 x Realtek 5Gb Ethernet

2 x Audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

Rear USB (Total 14 ports)

2 x USB4 (40Gbps) ports (2 x USB Type-C)

4 x USB 10Gbps ports (3 x Type-A + 1 x USB

Type-C with up to 30W PD/PPS Fast-charge)**

6 x USB 5Gbps ports (6 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps connector (supports USB Type-C)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C power delivery output: max. 5V/3A

** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Windows 11

ROG Exclusive Software

  ROG CPU-Z

  Dolby Atmos

ASUS Exclusive Software

Armoury Crate

  Aura Creator

  Aura Sync

  Fan Xpert 4 (with AI Cooling II)

 GameFirst

ASUS AI Advisor

ASUS DriverHub

  AIDA64 Extreme (60 days free trial)

  HWiNFO

ASUS GlideX

USB Wattage Watcher

TurboV Core

Adobe Creative Cloud (Free Trial)**

Norton 360 for Gamers (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

AI Overclocking Guide

AI Cache Boost

ASUS EZ DIY

  ASUS CrashFree BIOS 3

  ASUS EZ Flash 3

  ASUS UEFI BIOS EZ Mode

  ASUS MyHotkey

FlexKey

* For more software features, please visit the ASUS support site or refer to www.asus.com/support for additional information.

** For detailed information on the supported models and restricted regions for this redemption offer,

Please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.

Extreme Engine Digi+

  5K Black metallic capacitors

ASUS Q-Design

  M.2 Q-Latch

  M.2 Q-Release

 PCIe Slot Q-Release

  Q-Antenna

  Q-Dashboard

  Q-DIMM

  Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

  Q-Slot

ASUS Thermal Solution

  M.2 heatsink

  VRM heatsink design

ASUS EZ DIY

  BIOS FlashBack button

  BIOS FlashBack LED

  Clear CMOS button

  ProCool II

  Pre-mounted I/O shield

  SafeSlot

  SafeDIMM

Aura Sync

Addressable RGB Gen 2 headers

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Cable ties package

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

4 x M.2 rubber

Documentation

1 x Quick start guide

Manageability: WOL by PME, PXE

ATX Form Factor

12 inch x 9.6 inch

3-Year Brand Warranty
