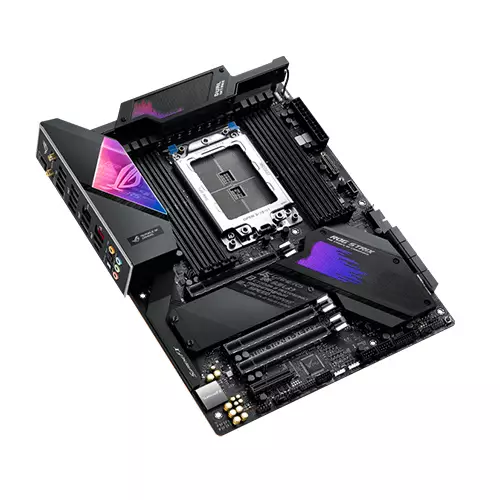

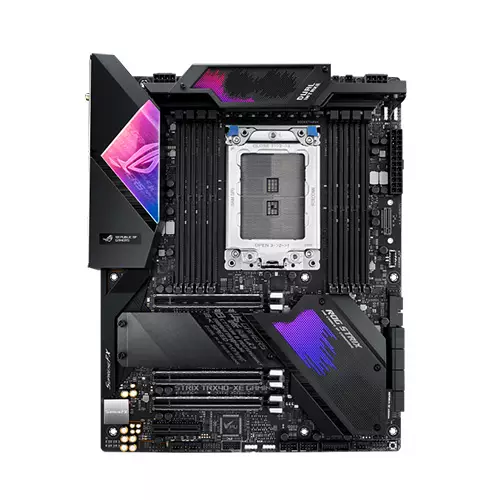

ASUS ROG STRIX TRX40-XE GAMING AMD ATX WiFi Motherboard

ASUS ROG STRIX TRX40-XE GAMING AMD ATX WiFi Motherboard

Name: ASUS ROG STRIX TRX40-XE GAMING AMD ATX WiFi Motherboard
Brand: Asus
SKU: P00025063057
Price: 4440 BDT
Availability: OutOfStock

0 Reviews

Stock : Discontinued

PID : P00025063057

Brand : Asus

Model : ROG STRIX TRX40-XE GAMING

Warranty : 3 Years

AMD TRX40 Chipset
SupremeFX S1220 8-Channel HD Audio
8 x Quad-Channel DDR4-4666 (OC)
NVIDIA SLI / AMD CrossFireX Support

SPECIFICATIONS

Processor

Supported CPU Supports CPU up to 64 cores
Build-in AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors

Mainboard

Chipset AMD TRX40

BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Memory

Memory 8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)
/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Quad Channel Memory Architecture

Storage

Supported Storage 2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors :
AMD TRX40 chipset :
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

Graphics

Multi-GPU
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 2-Way CrossFireX Technology

Networking & Connectivity

LAN Realtek® RTL8125-CG 2.5G LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s)
Anti-surge LANGuard
ROG GameFirst V Technology

WiFi Wi-Fi 802.11 ax, Bluetooth® 5.0
Supports 2x2 MU-MIMO
Intel® Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed

Audio & Microphone

Audio High quality120dBSNR stereo playback output108dBSNR recording input
- Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
ROG SupremeFX8-Channel High Definition Audio CODEC S1220
- Dual OP Amplifiers
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding™ Technology
- Sonic Studio III + Sonic Studio Virtual Mixer
- DTS® Sound Unbound
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III

Ports

Slots 3 x PCIe 4.0 x16 (x16/x16/x16)
1 x PCIe 4.0 x4
3rd Gen AMD Ryzen Threadripper Series Desktop processors

Internal I/O Ports 2 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x Chipset Fan Header
1 x VRM_HS_FAN Header
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
1 x USB 3.2 Gen 2 front panel connector
2 x Aura RGB Strip Header
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM header
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Thermal sensor connector(s)
1 x Power-on button(s)
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x System panel connector
1 x Speaker connector

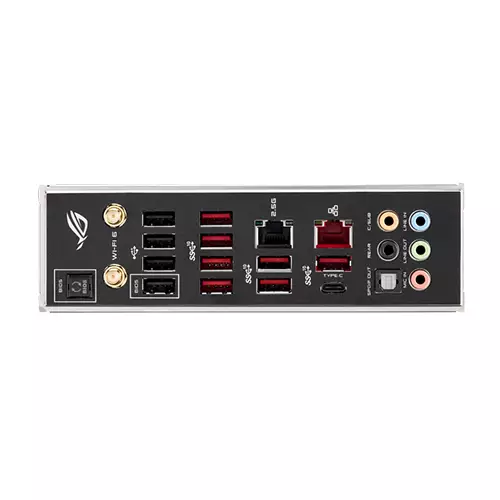

External I/O Ports 8 x USB 3.2 Gen 2 (7 x Type-A+1 x Type-C)
1 x USB BIOS FlashBack™ Button(s)
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x Anti-surge 2.5G LAN (RJ45) port

USB 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, 3 x Type-A+1 x Type-C)
3rd Gen AMD Ryzen™ Threadripper™ Processors :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red)
AMD TRX40 chipset :
ASMedia® USB 3.2 Gen 1 controller :
8 x USB 2.0 port(s)
1 x USB 3.2 Gen 2 front panel connector port(s)
4 x USB 3.2 Gen 1 port(s) (4 at mid-board)

Others

Other Features - USB BIOS FlashBack™
- BIOS FlashBack™ Button
LiveDash OLED 1.3”
- Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
5-Way Optimization by Dual Intelligent Processors 5
Gamer´s Guardian:
- DRAM Overcurrent Protection
- Highly Durable components
- Digi+ VRM
- SafeSlot
- ESD Guards on LAN, Audio,and USB ports
AURA :
- Aura Lighting Control
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector

Physical Specification

Form Factor ATX Form Factor

Dimension 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 03 Years Warranty

DESCRIPTION

ASUS ROG STRIX TRX40-XE GAMING Motherboard in Bangladesh

Take your recreation to the next level with the ASUS ROG Strix TRX40-XE ATX Motherboard for TRX4. High-powered by the AMD TRX40 chipset, ASUS ROG STRIX TRX40-XE GAMING Motherboard supports third-generation AMD Ryzen Threadripper processors with the TRX4 socket for high-end video games and content creation. The AMD TRX40 chipset takes full advantage of the massive PCIe 4.0 knowledge information measure to handle demanding tasks resembling 4K live streaming, video editing, and gaming at high settings. ASUS ROG STRIX TRX40-XE GAMING Up to 256GB of quad-channel code DDR4 RAM, reaching 4666 rates once overclocked is put in across eight memory slots to enhance the system's multitasking capabilities and speed. The ASUS ROG STRIX TRX40-XE GAMING motherboard conjointly options advanced cooling and supports up to 3 M.2 SSDs and eight SATA III storage drives, which may be placed into RAID 0, 1, or ten configurations. ASUS ROG STRIX TRX40-XE GAMING's three PCIe 4.0 x16 slots can accommodate a pair of-Way NVIDIA SLI or AMD CrossFireX configurations to maximize your system's frame rates at high resolutions whereas a further PCIe 4.0 x4 slot is obtainable for compatible devices. Seven USB 3.2 info 2 Type-A ports and one Type-C port is available to transfer knowledge from compatible devices at up to 10 Gb/s. hook up with compatible high-speed networks through the Gigabit Ethernet and a pair of.5 Gigabit LAN ports, or use the intrinsic 802.11ax Wi-Fi to transfer knowledge at up to 1.73 Gb/s wirelessly. The ROG Strix TRX40-XE delivers deep and immersive 8-channel audio through the SupremeFX S1220 codec, and you'll additionally customize your computing expertise by connecting light-weight strips to the available info 2 Aura adjust RGB lighting headers for dazzling effects. Windows ten 64-bit is needed to require advantage of all the ASUS ROG STRIX TRX40-XE GAMING motherboard features.

AMD TRX40 Chipset

ASUS ROG STRIX TRX40-XE GAMING WiFi Motherboard Supporting third-generation AMD Ryzen Threadripper processors, the TRX40 chipset is meant for visual effects artists, data scientists, and alternative professionals who need high-end computing power. The chipset takes advantage of PCIe 4.0 information measures for multi-GPU configurations, NVMe storage arrays, and more. Additionally, the platform ASUS ROG STRIX TRX40-XE GAMING WiFi Motherboard supports quad-channel DDR4 code RAM with unbarred overclocking for even bigger speed and power.

Storage and Memory

Provides three PCIe 4.0 M.2 slots and supports up to 22110 SATA and NVMe SSDs. The 8 SATA III ports can be used for 2.5-inch solid-state drives and hard drives. ROG STRIX TRX40-XE GAMING WiFi Motherboard Supports RAID 0, 1, and 10, up to 256 GB quad-channel DDR4-4666 (OC) memory can be installed in eight slots RAMCache III utility can automatically cache all your storage devices for faster loading of games and applications

Enhanced Cooling

The ASUS ROG STRIX TRX40-XE GAMING WiFi Motherboard sealed multi-layer radiator with fins ensures maximum surface contact to speed up heat dissipation. Covered with a large heat sink to prevent the speed increase when the SSD overheats. The active chipset heat sink is a combination of a fan and a heat sink that helps cool the chipset and prevent throttling during long data transfers. ASUS ROG STRIX TRX40-XE GAMING WiFi Motherboard Fan Xpert 4 provides manual or automatic control of fan speed. Very quiet mode reduces the fan speed below the standard minimum to keep the system quiet during light tasks.

SupremeFX Audio

The integrated ROG STRIX TRX40-XE GAMING comes with the SupremeFX S1220 codec offers a flat frequency response for detailed audio. ROG STRIX TRX40-XE GAMING Integrated audio functions 10-channel DACs, 7.1-channel simultaneous playback, and independent 2.0-channel multistream stereo sound at the outputs on the front panel. ROG STRIX TRX40-XE GAMING have 192 kHz playback support, a Stereo 120 dB signal-to-noise ratio at the input 108 dB signal-to-noise ratio at the input Electromagnetic shielding protects against interference from neighboring components for a cleaner sound Two integrated amplifiers supply your headphones or speakers with a speaker impedance of 32 -600Ω Nichicon capacitors are designed to produce warm, natural sound with high clarity. ASUS ROG STRIX TRX40-XE GAMING Motherboard Sonic Studio III software allows you to customize EQ profiles for different audio devices and applications. The DTS: Sound Unbound app works with Windows Sonic technology to deliver spatial sound that immerses you in virtual environments and entertainment.

REVIEWS

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS ROG STRIX TRX40-XE GAMING AMD ATX WiFi Motherboard Price in Bangladesh 2026 ?

The Asus ROG STRIX TRX40-XE GAMING Price in BD is 4,440৳ . This ASUS ROG STRIX TRX40-XE GAMING AMD ATX WiFi Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG STRIX TRX40-XE GAMING by 4,440৳ and its regular price is 34,560৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
