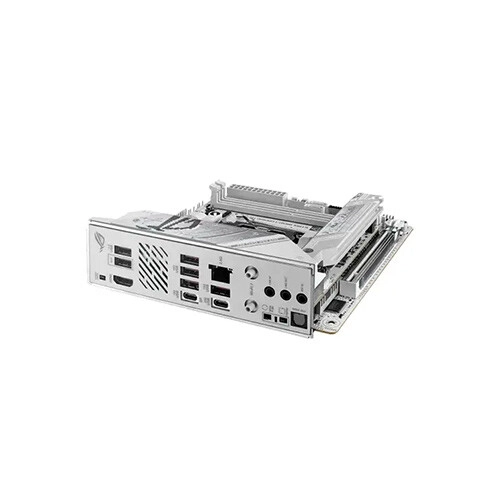

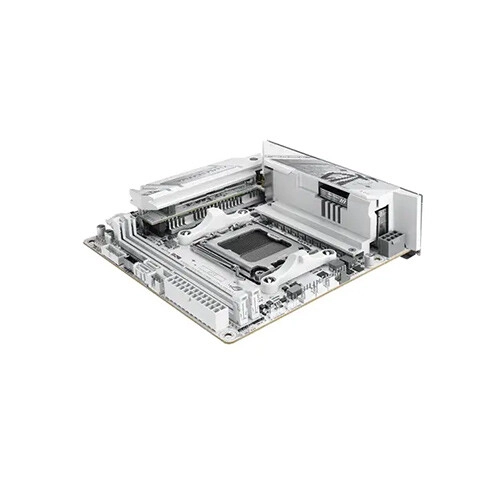

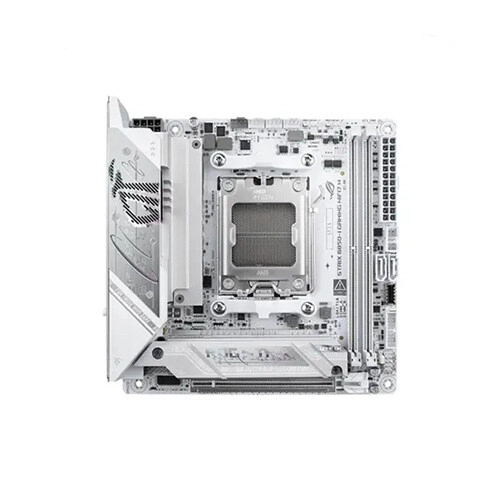

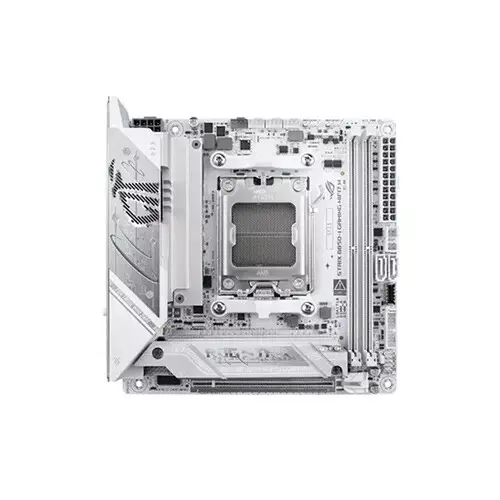

ASUS ROG Strix B850-I Gaming WiFi7 W Ryzen AM5 ATX Gaming Motherboard
- Memory Size - 128GB
- Memory type - DDR5
- Chipset - AMD B850
- Form Factor - Mini-ITX
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
AMD B850 Chipset
Mainboard
512 Mb Flash ROM, UEFI AMI BIOS
Memory
2 x DIMM slots, max. 128GB, DDR5
Supports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors,
9600+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM
Dual-channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate (speed),
and number of DRAM modules vary
depending on the CPU and memory configuration.
Storage
Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen 7000 & 9000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Graphics
1 x HDMI port
1 x USB 10Gbps ports
support USB Type-C display outputs
Graphics specifications may vary
between CPU types. Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
VGA resolution support depends on
the processor's or graphics card's resolution.
Networking & Connectivity
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth,
up to 2.9Gbps transfer rate.
Wi-Fi features may vary depending
on the operating system
For Windows 11, Wi-Fi 7 will
require 24H2 or later version for
full functions, Windows 11
21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, please note that no
driver is available; refer to the
Wi-Fi chipset vendor's website for details.
Wi-Fi 6GHz frequency band and
bandwidth regulations may vary between countries.
Bluetooth v5.4
Audio & Microphone
ROG SupremeFX 7.1 Surround Sound
High Definition Audio CODEC ALC4080*
- Impedance sense for front and
rear headphone outputs
- Supports: Jack-detection, Multi-streaming,
Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo
playback output and 110 dB SNR recording input
- Supports up to 32-bit/384 kHz playback
on the front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with Q-Release Slim
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot with Q-Rlease Slim
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Extra Flow Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector
(supports USB Type-C)
1 x USB 5Gbps header supports
2 additional USB 5Gbps ports
1 x USB 2.0 headers support 4
additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x CPU Overvoltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header

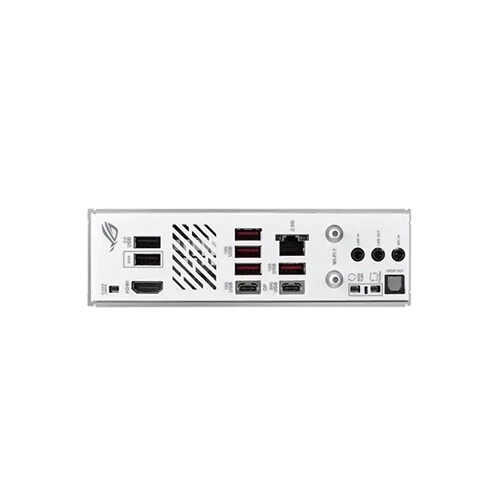

1 x USB 20Gbps port(s)
5 x USB 10Gbps port(s)
(4 x Type-A + 1 x USB Type-C with DP Alt mode)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
3 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
1 x FlexKey button
Rear USB (Total 8 ports)
1 x USB 20Gbps port(s) (1 x USB Type-C)
5 x USB 10Gbps port(s)
(4 x Type-A + 1 x USB Type-C)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 10Gbps
1 x USB 5Gbps header(s)
support(s) 2 additional USB 5Gbps ports
1 x USB 2.0 header(s) support(s)
2 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
Software
Windows 11
ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme
(60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- HWiNFO
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers
(60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Special Features
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Slide
- PCIe Slot Q-Release
Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM
[yellow], VGA [white], Boot Device
[yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
Aura Sync
- Addressable Gen 2 headers
Others
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 backplate Q-Latch package(s)
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 backplate rubber package(s)
Documentation
1 x Quick start guide
Physical Specification
Mini-ITX Form Factor
6.7 inch x 6.7 inch (17 cm x 17 cm)
Warranty Information
3 Years
DESCRIPTION
ASUS ROG Strix B850-I Gaming WiFi7 W Ryzen AM5 ATX Gaming Motherboard in Bangladesh
Buy the ASUS ROG Strix B850-I Gaming WiFi7 W Ryzen AM5 ATX Gaming Motherboard in Bangladesh from Tech Land BD:
Which processors support this motherboard?
What is the maximum RAM capacity?
Does it support PCIe 5.0 SSDs?
