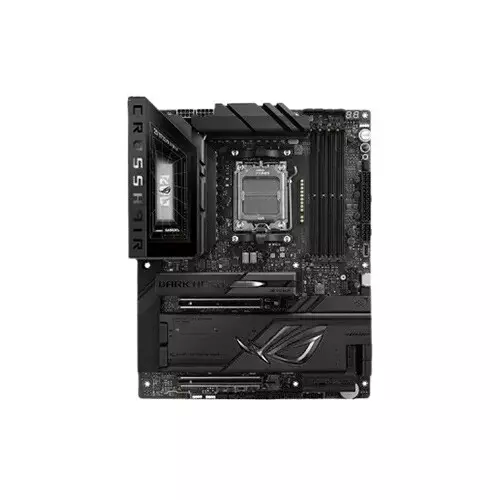

ASUS ROG CROSSHAIR X870E DARK HERO Ryzen AM5 ATX Gaming Motherboard

AMD Socket AM5 for AMD Ryzen
9000 & 8000 & 7000 Series Desktop Processors*

AMD X870E

64 MB (512Mb)

Flash ROM, UEFI AMI BIOS

4 x DIMM slots, max. 256GB, DDR5

Supports up to

8600+MT/s(OC)**/8200+MT/s(OC)
 with Ryzen 9000 Series Processors,

9600+MT/s(OC)**/9200+MT/s(OC)
with Ryzen 8000 Series Processors,

8000+MT/s(OC)**/8000+MT/s(OC)
with Ryzen 7000 Series Processors,

ECC and Non-ECC, Un-buffered DIMM*

Dual-channel memory architecture

Supports AMD Extended Profiles for
Overclocking (EXPO)

Supports DIMM Fit and DIMM Fit Pro

NitroPath DRAM Technology

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types,
data rate (speed), and number
of DRAM modules vary
depending on the CPU and
memory configuration.

For more information,
please refer to the CPU/Memory
Support list under the Support
tab of the product information site
or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

* Non-ECC, un-buffered DDR5
memory supports the On-Die ECC function.

** Max Manual Overclocking:
Achievable with advanced BIOS
configuration and potentially specialized
hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth.

Results may vary according to system components.

*** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS perormance profile.

AMD RAIDXpert2 Technology

Ryzen 9000 & 8000 & 7000 Series Processors:
RAID 0/1/5/10*

* SATA ports from ASM1162 cannot support RAID

Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series
Desktop Processors

M.2_1 slot (Key M), type
2242/2260/2280/22110
(supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type
2242/2260/2280 (supports PCIe 5.0 x4 mode)*

AMD Ryzen 8700 & 8600 &
8400 Series Desktop Processors

M.2_1 slot (Key M), type
2242/2260/2280/22110
(supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type
2242/2260/2280 (supports PCIe 4.0 x4 mode)*

AMD Ryzen 8500 & 8300 Series
Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type
2242/2260/2280 (Not supported)

AMD X870E Chipset

M.2_3 slot (Key M), type
2242/2260/2280 (supports
PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type
2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_5 slot (Key M), type 2230
(supports PCIe 4.0 x2 mode)

2 x SATA 6Gb/s ports

ASMedia ASM1162 Controller

2 x SATA 6Gb/s ports

1 x HDMI port*

2 x USB4 (40Gbps) ports support USB Type-C display outputs***

* Available only on processors featuring integrated graphics. Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

*Supports 4K@60Hz as specified in HDMI 2.1.

1 x Realtek 10Gb Ethernet 1 x Realtek 5Gb
Ethernet ASUS LANGuard

Wi-Fi 7 (MediaTek MT7927)

2x2 Wi-Fi 7* (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 320MHz bandwidth

Bluetooth v5.4

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-bit/384 kHz playback on the front panel.

Audio Features

- SupremeFX Shielding Technology

- ESS ES9219 QUAD DAC

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

AMD Ryzen 9000 & 7000 Series Desktop Processors*

2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**

AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*

2 x PCIe 4.0 x16 slots (only supports PCIEx16
(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4)

AMD Ryzen 8500 & 8300 Series Desktop Processors*

2 x PCIe 4.0 x16 slots (only supports
PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4)

* Please check the PCIe bifurcation
table on the support site
(https://www.asus.com/support
/FAQ/1037507/).

* Specifications vary by CPU types.

** When PCIEX16_1 runs at PCIe
5.0 x16, PCIEX16_2 will run at PCIe 3.0 x4. The bandwidth can be altered in the BIOS.

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

1 x W_PUMP+ header

1 x AIO Q-Connector

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

1 x 8-pin PCIe Power connector

Storage Related

5 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

2 x USB 20Gbps connectors (support USB Type-C)

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen2 headers

1 x Alteration PCIe mode switch

1 x FlexKey button

1 x Front Panel Audio header (F_AUDIO)

1 x ReTry button

1 x Start button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

1 x LN2 Mode jumper

2 x USB4 (40Gbps) ports (2 x USB Type-C)

9 x USB 10Gbps connector
(6 x Type-A + 3 x USB Type-C)

1 x HDMI port

1 x Wi-Fi module

1 x Realtek 10Gb Ethernet port

1 x Realtek 5Gb Ethernet port

2 x Gold-plated audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1 x Clear CMOS button

Rear USB (Total 11 ports)

2 x USB4 (40Gbps) ports (2 x USB Type-C)

9 x USB 10Gbps connector
(6 x Type-A + 3 x USB Type-C)

Front USB (Total 12 ports)

1 x USB 20Gbps connector
(supports USB Type-C with
up to 60W PD/QC4+)**

1 x USB 20Gbps connector
(supports USB Type-C)*

2 x USB 5Gbps headers support
4 additional USB 5Gbps ports

3 x USB 2.0 headers support 6
additional USB 2.0 ports

* USB Type-C power delivery
output: max. 5V/3A

**USB Type-C power delivery
output: 5/9/15/20V max. 3A,
PPS:3.3–21V max. 3A

Windows 11

ROG Exclusive Software

- ROG CPU-Z

- Dolby Atmos

- Internet Security (1-year full version)

- Polymo Lighting II

ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 4 (with AI Cooling II)

- GameFirst

- WiFi Q-Antenna

- MLO Wizard

ASUS DriverHub

- ASUS MB Manager

- HWiNFO

- ASUS AI Advisor

- AIDA64 Extreme (1 year full version)

- ASUS GlideX

- USB Wattage Watcher

- Turbo Vcore

WinRAR (40 Days Free Trial)

Adobe Creative Cloud (Free Trial)**

UEFI BIOS

AI Overclocking Guide

Integrated WiFi Driver Support

AI Cache Boost

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

- ASUS MyHotkey

Asynchronous Clock

Extreme OC Kit

- FlexKey button

- LN2 Mode

- ReTry button

- Start button

Extreme Engine Digi+

- 10K Black metallic capacitors

- MicroFine alloy choke

ASUS Q-Design

- M.2 Q-Latch

- M.2 Q-Release

- M.2 Q-Slide

- PCIe Slot Q-Release
(with PCIe SafeSlot)

- Q-Antenna

- Q-Code

- Q-Connector

- Q-Dashboard

- Q-LED (CPU [red], DRAM [yellow],
VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- 1 x DDR5 fan holder

- 1 x ROG assistant fan (60mm)

- 3D VC M.2 Heatsink

- M.2 heatsink backplate

- M.2 heatsink

- VRM heatsink design

- Metal backplate

ASUS EZ DIY

- Backplate

- BIOS FlashBack button

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Aura Sync

- Addressable Gen 2 headers

Front Panel USB 20Gbps with Quick
Charge 4+ Support

- Support: up to 60W fast charging
and USB Wattage Watcher*

- Output: 5/9/15/20V max. 3A,
PPS:3.3–21V max. 3A

- Compatible with PD3.0 and PPS

* To support 60W, please install
the power cable to the 6-pin PCIe
power connector, or else only
27W will be supported.

Cables

4 x SATA 6Gb/s cables

Additional Cooling Kit

1 x DDR5 fan holder

1 x ROG assistant fan (60mm)

1 x Screw package for cooling kit

1 x Thermal pad for M.2 22110

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Q-connector

1 x M.2 Q-Latch package

3 x M.2 Q-Slide package

5 x M.2 backplate rubber packages

1 x ROG stickers

1 x ROG VIP card

1 x ROG Bottle Opener

Documentation

1 x Quick start guide

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

3 Years
