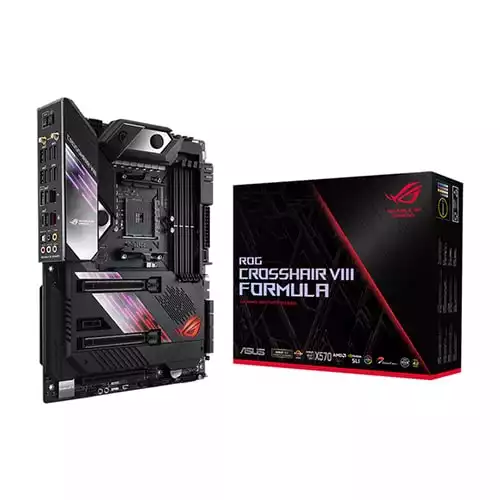

ASUS ROG Crosshair VIII Formula AMD X570 ATX gaming motherboard
ASUS ROG Crosshair VIII Formula AMD X570 ATX gaming motherboard
ASUS ROG Crosshair VIII Formula AMD X570 ATX gaming motherboard - 1
ASUS ROG Crosshair VIII Formula AMD X570 ATX gaming motherboard - 2

ASUS ROG Crosshair VIII Formula AMD X570 ATX gaming motherboard

0 Reviews
Stock : Discontinued
PID : P00025061344
SKU : ASUS-ROG-CROSSHAIR-VIII-FORMULA
Brand : Asus
Model : ROG Crosshair VIII Formula
Warranty : 3 Years
  • AMD AM4 Socket 3rd and 2nd AMD Ryzen
  • Chipset AMD X570
  • ATX Form Factor 12 inch x 9.6 inch
  • BIOS 256 Mb Flash ROM

SPECIFICATIONS

Processor

Supported CPU AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors

Mainboard

Chipset AMD X570
BIOS 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Memory

Memory 3rd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory
2nd Gen AMD Ryzen™ Processors
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Storage

Supported Storage 3rd Gen AMD Ryzen™ Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

Networking & Connectivity

LAN Intel I211-AT
Aquantia AQC111C 5G LAN
ASUS LAN Guard
ROG GameFirst V Technology

Audio & Microphone

Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Supports : Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback *
Audio Feature :
- Gold-plated jacks
- Optical S/PDIF out port(s) at back panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link

Ports

Slots 3rd Gen AMD Ryzen™ Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2nd Gen AMD Ryzen™ Processors
2 x PCIe 3.0 x16 (x16 or dual x8)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 4.0 x1
Internal I/O Ports 1 x PCH_FAN
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x Optional Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x LN2 Mode header(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Node Connector(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Thermal sensor connector
1 x Speaker connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports
USB 3rd Gen AMD RyzenTM Processors :
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A)
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
AMD X570 chipset :
4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C)
AMD X570 chipset :
8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
AMD X570 chipset :
4 x USB 2.0 port(s)

Physical Specification

Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 3 years

DESCRIPTION

ASUS ROG Crosshair VIII Formula gaming motherboard

Features :
  • AMD AM4 socket: Asus ROG Crosshair VIII Formula Ready for 2nd, and 3rd Gen AMD Ryzen™ processors and up to two M.2 drives, USB 3.2 Gen2, and AMD StoreMI to maximize connectivity and speed.

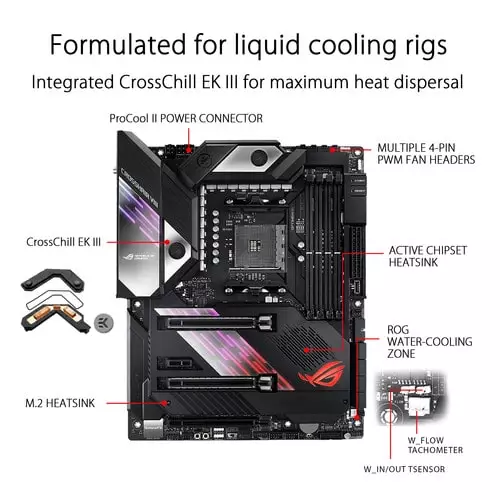

  • Comprehensive thermal design: the Asus ROG Crosshair VIII Formula with Integrated Crosschill EK III, active chipset heatsink, M.2 aluminum heatsink, and ROG Cooling Zone.
  • Robust power delivery: Asus ROG Crosshair VIII Formula Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes, and 10K Japanese-made black metallic capacitors

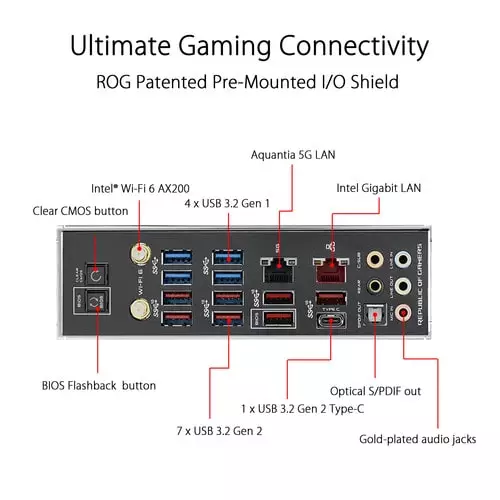

  • High-performance networking: Asus ROG Crosshair VIII Formula, On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 5G and Gigabit Ethernet courtesy of Aquantia and Intel, both with ASUS LANGuard protection and support for GameFirst V software.
  • 5-Way Optimization: The Asus ROG Crosshair VIII Formula, Automated system-wide tuning, providing overclocking and cooling profiles that are tailor-made for your rig.
  • DIY Friendly Design: the Asus ROG Crosshair VIII Formula, Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and premium components for maximum endurance.
  • Unmatched personalization: Asus ROG Crosshair VIII Formula with ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
  • Industry-leading ROG audio: Asus ROG Crosshair VIII Formula build with SupremeFX S1220 and ESS® ES9023P for enthusiast-grade audio performance driven by Japanese capacitors.
**03 Year Warranty

ASUS ROG Crosshair VIII Formula motherboard

The ASUS ROG Crosshair VIII Formula AM4 ATX Motherboard is built on the AMD X570 chipset supporting second- and third-generation AMD Ryzen processors with an AM4 socket. It has four memory slots for up to 128GB of dual-channel DDR4 RAM, which can run up to 4800 MHz when overclocked. For storage, Asus ROG Crosshair VIII Formula equipped with eight SATA III ports and two M.2 slots. Asus ROG Crosshair VIII Formula with three PCIe 4.0 x16 slots for graphics cards, which can run at x8/x8/x4 when all slots are filled, and a single PCIe 4.0 x1 slot for other PCI-based hardware. Other integrated features of Asus ROG Crosshair VIII Formula is include Intel AX200 802.11ax Wi-Fi, Intel I211-AT Gigabit Ethernet, Aquantia AQC111C 5GbE LAN, and ROG SupremeFX 8-channel HD audio.

[product_table id="34" limit="10" type="filter" filter_category="7271"]


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS ROG Crosshair VIII Formula AMD X570 ATX gaming motherboard Price in Bangladesh 2026 ?

The Asus ROG Crosshair VIII Formula Price in BD is 55,500৳ . This ASUS ROG Crosshair VIII Formula AMD X570 ATX gaming motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus ROG Crosshair VIII Formula by 55,500৳ and its regular price is 59,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
