Stock Status | Out Of Stock |
Product ID | 16897 |
Brand | Asus |
Product model | ROG Crosshair VIII Dark Hero |
Warranty | 3 years |
Total Reviews | Based on 0 reviews. - Write a review |
Out Of Stock
- ATX Form Factor
- AMD X570 Chipset
- Liquid Cooling : 1 x 4-Pin Pump
- 4 x Dual-Channel DDR4 RAM
- Stock availability is subject to change. Please confirm availability before shopping by calling us.
- The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
- Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
- We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
Processor | |
Supported CPU | AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors |
Mainboard | |
Chipset | AMD X570 |
Memory | |
Memory | 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory AMD Ryzen™ 4000 G-Series Desktop Processors AMD RyzenTM 2000 Series Processors Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
Storage | |
Supported Storage | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
Audio & Microphone | |
Audio | ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Dedicated audio PCB layers Unique de-pop circuit Audio Cover - Premium Japanese audio capacitors - Power pre-regulator: Reduces power input noise to ensure consistent performance Impedance sense for front and rear headphone outputs High quality120dBSNR stereo playback outputand113dBSNR recording input ESS® ES9023P Supports up to 32-Bit/192kHz playback Audio Feature : SupremeFX Shielding™ Technology Gold-plated jacks Optical S/PDIF out port(s) at back panel |
Networking & Connectivity | |
LAN | ASUS LANGuard Intel I211-AT Realtek® RTL8125-CG 2.5G LAN |
Ports | |
Slots | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors AMD RyzenTM 4000 G-Series / 2000 Series Processors AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1 |
Internal I/O Ports | 2 x M.2 Socket 3 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x Speaker connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
External I/O Ports | 1 x BIOS FlashBack™ Button(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () 1 x Anti-surge 2.5G LAN (RJ45) port Anti-surge LAN (RJ45) port |
USB | AMD Ryzen™5000 Series / 4000 G-Series/ 3000 Series Processors : AMD Ryzen™3000 G-Series / 2000 Series / 2000 G-Series Processors : 4 x USB 3.2 Gen 2 port(s) 4 x USB 3.2 Gen 1 port(s) AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) 6 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
Technical Info | |
BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
Physical Specification | |
Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Warranty Information | |
Warranty | 3 years |

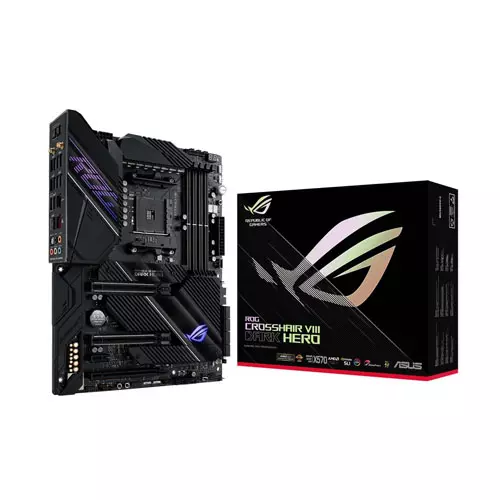

ASUS ROG Crosshair VIII Dark Hero Motherboard
Features : |
|
**03 Years Warranty. |
ROG CROSSHAIR VIII
DARK HERO
Upgraded power delivery, passive chipset cooling, and stealthy aesthetics allow the Crosshair VIII Dark Hero to strike from the shadows and form a menacing duo with AMD Zen 3.
Ryzen Brand Processors
Utilizing AMD CPU architecture, the ROG Crosshair VIII Dark Hero motherboard allows you to use Ryzen 5000 series, 4000 G-series, 3000 series, 3000 G-series, 2000 series, and 2000 G-series desktop processors. This wide array of components is ideal for creating an optimized gaming rig.
Enhanced Memory Performance
ASUS Optimem III improves signal integrity and mitigates digital noise, allowing memory kits to run at lower latencies and reduced voltages while operating at higher frequencies.
Extreme Cooling Power
The ROG Crosshair VIII Dark Hero is equipped with a wide array of cooling enhancements for extreme gaming sessions. A VRM and dual M.2 heatsink design works alongside the passive chipset heatsink to keep components from overheating, while multiple 4-pin fan headers and the ROG Water-Cooling Zone allow you to install a variety of fan- or water-cooling systems for increased cooling capabilities.
RGB Lighting with Aura Sync
With two 4-pin Aura RGB headers and two 3-pin Addressable gen 2 RGB headers, you can connect a variety of colorful devices to your motherboard for a stylized look. Additional lighting is integrated right onto the PCH, I/O, and Armor Zone areas with the Aura illumination system for additional luminescence. All of this is controlled with ASUS' Aura Sync program, which allows you to adjust lighting effects and colorization with ease. Additionally, you can configure RGB lighting in supported ROG gaming products with the included Armoury Crate software utility.
SupremeFX Audio
Equipped with Japanese-made Nichicon capacitors, the SupremeFX 7.1-channel surround sound creates a rich, high-definition sound experience. 120dB SNR stereo playback output provides a deep sound, allowing you to sink into your games easily. Sonic Studio III is also included, enabling you to fine-tune your audio experience while also allowing you to record various sounds with optional hardware. The audio jacks themselves are gold plated for optimal sound conductivity, and audio line shielding blocks electromagnetic interference from the motherboard or addons for cleaner sound.
DIY Friendly
An array of features focused on making troubleshooting issues easier is built right into the ROG Crosshair VIII Dark Hero motherboard. The pre-mounted I/O shield allows easier installation into the PC case, while ESD guards prevent electrostatic discharge from affecting the back panel USB, audio, and LAN ports. LED Q-code panel shows a two-digit code that reflects system status. FlexKey button acts as a system reset button, Aura lighting activation, safe boot, or BIOS function for quick access.
Enhanced Ports
The two PCIe 4.0 x16 slots have increased durability with Safeslot technology, made for greater shearing resistance and better device retention. Four Q-DIMM clips allow simple installation and handling for memory modules. To arrange front-panel cables, the Q-connector is included. Additionally, the back panel USB ports all supply 5-volt power delivery for external devices. Experience unthrottled transfer speed with AMD STOREMI technology that accelerates startup and software load times by combining SSD performance with optional HDDs.
Networking Capabilities
Experience ultrafast wireless-networking speeds with Wi-Fi 6 (802.11ax) capabilities that improve performance in dense environments, providing enhanced gaming speeds. If you prefer a wired connection, you may utilize the on-board 2.5G LAN Ethernet adapter for lag-free gaming. An additional Gigabit Ethernet controller is also available for teaming capabilities by increasing network bandwidth and transfer speeds with less CPU overhead.
