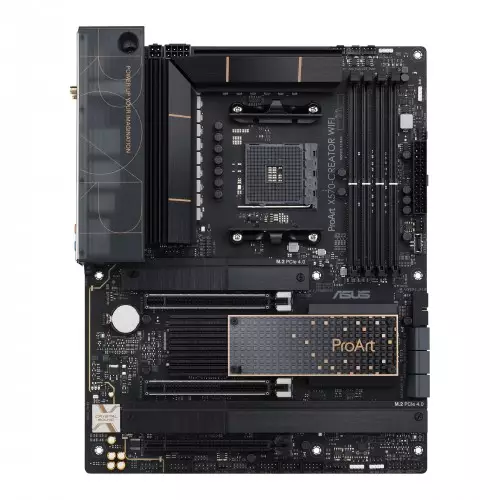

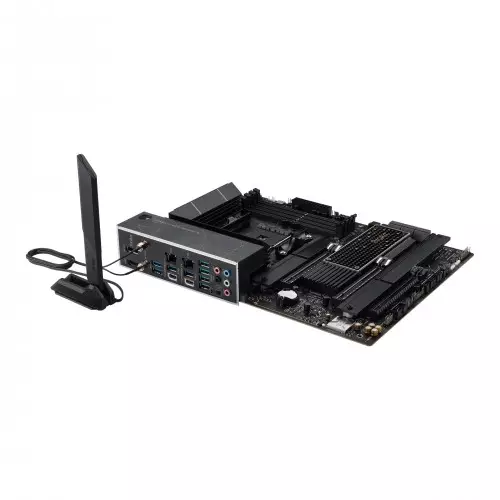

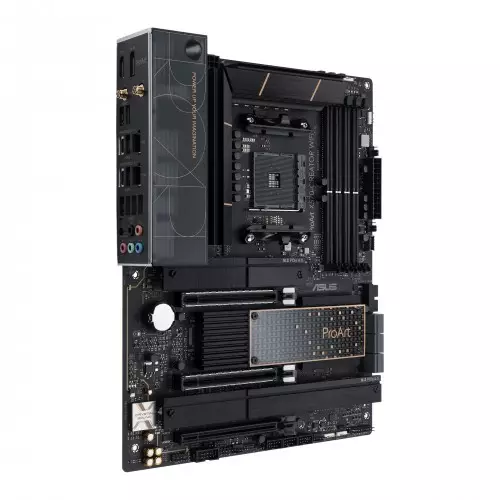

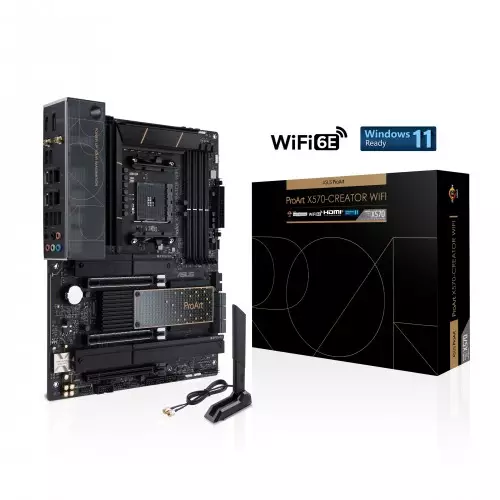

ASUS ProArt X570-CREATOR WIFI AMD AM4 ATX Motherboard
Best asus x570-creator wifi overview
Leverage the power of AMD Ryzen processors to create works of art with the ProArt X570-CREATOR WIFI AM4 ATX Motherboard from ASUS. Designed for creators, the ProArt supports resource-demanding components, allowing you to optimize your creation station for photo and video editing.
The X570 chipset and AM4 processor work together to provide enhanced speeds with PCIe 4.0 capabilities, boosting the overall performance of your rig. Six SATA III ports and three M.2 storage interfaces allow you to equip your system with a wide range of high-speed drives, ideal for large projects. Four dual-channel DDR4 RAM slots can hold up to 128GB of memory, essential for rendering complex photos and video content. Three PCIe 4.0 x16 expansion slots allow you to install graphics and utility cards to streamline your creation processes. Dual Thunderbolt Type-C provide support for resource-demanding devices like external drive bays while also enabling daisy-chaining capabilities for expansive workstation utility. Connect wireless devices like controllers and speakers with Bluetooth 5.2 technology. Two Ethernet ports provide 2.5 and 10 Gb speeds and support teaming functionality so you can quickly access the internet and network-based storage drive systems. Wi-Fi 6E (802.11) gives you wireless networking capabilities if you prefer a cable-free experience.
Thunderbolt 4
Aside from the traditional USB 3.2 Gen 1 and Gen 2 ports located on the back panel of the ProArt, you also gain two Thunderbolt 4 ports. Each port delivers up to 40 Gb/s bidirectional bandwidth, essential for resource-demanding peripherals. Thunderbolt 4 ports also support video out with 4K resolution for dual displays or 8K resolution for a single display. You can also daisy-chain additional peripherals such as storage drive arrays for a streamlined workstation.
Networking
Experience enhanced wireless networking with Wi-Fi 6E (802.11ax) technology. Able to deliver three times the bandwidth of the 5 GHz band, you can quickly access files in dense wireless environments. Intel 2.5 Gb and Marvell 10.5 Gb Ethernet ports provide hard-wired support, giving you the ability to access uncompressed files stored on network or cloud-based storage systems. The included Wi-Fi antenna offers four-way positioning and a magnetic base allowing you to get the best wireless signal possible. This antenna also supports 2.4, 5, and 6 GHz bands.
M.2 Storage
Three M.2 storage interfaces are backed by PCIe 4.0 technology which enhance data transfer throughput, essential for managing larger projects. You can setup a RAID configuration with up to two PCIe 4.0 drives. Easily add and remove M.2 storage drives with Q-Latch mechanisms which eliminate the need for traditional screws.
Power Layout
Sporting an optimized power design layout, the ProArt features robust power delivery consisting of alloy chokes and durable capacitors which are engineered to resist extremes temperatures. Digi+ VRM and 14+2 power stages combine high- and low-side MOSFETs and drivers into a single package designed to deliver efficiency demanded by AMD Ryzen processors. ProCool II socket ensures flush contact between power connectors and PSU lines, enhancing heat dissipation and providing lower electrical impedance.
Triple Expansion Slots
The ProArt sports three PCIe 4.0 x16 expansion slots allowing you to equip your rig with a wide range of peripherals. You can support multi-GPU setups, where slots 1 and 2 downgrade to x8 speeds, while the third slot runs in x4 mode. The first two slots on the ProArt feature SafeSlot protection that uses reinforced metal brackets that provide 1.6x stronger retention force and 1.8x shearing, keeping your cards safe and secure.
Memory
Four DDR4 RAM slots allow you to install 128GB of memory, greatly enhancing the productivity of your machine. OptiMem II technology allows you to run memory at higher frequencies due to the improved trace layout which reduce vias and crosstalk.
Heatsinks
Designed to keep you working and reduce heat buildup, the ProArt sports uniquely themed VRM heatsinks, a passive chipset heatsink, and two dedicated M.2 heatsinks. These are designed to dissipate heat efficiently, essential for long-term rendering and extended operation.
Headers
Utilize fan or liquid coolers with an arrangement of headers designed to deliver efficient cooling to your system. Multiple temperature sensors monitor and react to heat buildup and can be managed with the included Fan Xpert 4 software. Headers can automatically detect if your system is running PWM or DC fans, and dual pump headers allow you to use AIO or custom loop coolers.
