ASUS ProArt B550-Creator AMD ATX Motherboard
ASUS ProArt B550-Creator AMD ATX Motherboard
ASUS ProArt B550-Creator AMD ATX Motherboard - 1
ASUS ProArt B550-Creator AMD ATX Motherboard - 2

ASUS ProArt B550-Creator AMD ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025062805
Brand : Asus
Model : ProArt B550-CREATOR
Warranty : 3 Years
  • AM4 socket
  • Advanced Security
  • Intel 2.5Gb Ethernet
  • dual M.2 with heatsinks

SPECIFICATIONS

Processor

Supported CPU AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

Mainboard

Chipset B550 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory AMD Ryzen 5000 Series/ 3000 Series Desktop Processors
DDR4
4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *"
AMD RyzenTM 4000 G-Series Processors
DDR4
5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory"
OptiMem II
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.

Storage

Supported Storage Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
AMD RyzenTM 4000 G-Series Processor :
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
AMD B550 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Supports RAID 0, 1, 10

Graphics

Graphics 1 x HDMI™ 2.1 (4K@60Hz)
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs *
* Output at TBT4_E1 and TBT4_E2, the USB Type-C® ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. Graphics specifications may vary between CPU types..

Networking & Connectivity

LAN 2 x Intel I225-V 2.5Gb Ethernet

Audio & Microphone

Audio Impedance sense for front and rear headphone outputs
Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Supports up to 32-Bit/192 kHz playback*"
Audio Features
Power pre-regulator reduces power input noise to ensure consistent performance
Rear optical S/PDIF out port
Premium Japanese audio capacitors
Dedicated audio PCB layers
Audio cover
Unique de-pop circuit

Ports

Slots 2 x PCIe 4.0/3.0 x16 (x16, x8/x8)
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
2 x PCIe 4.0 x16 (x16 or dual x8)*
AMD RyzenTM 4000 G-Series Processor
2 x PCIe 3.0 x16 (x16 or dual x8)*
AMD B550 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)**
2 x PCIe 3.0 x1 slots***
Support PCIe bandwidth bifurcation for RAID on CPU function.
PCIe 3.0 x4 will be switched from Thunderbolt™ 4 to PCIEX16_3 if the slot is populated; by then Thunderbolt™ 4 will have no output
Internal I/O Ports 2 x Thunderbolt 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header(s)
2 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 20-5 pin System Panel header
1 x Thermal Sensor header

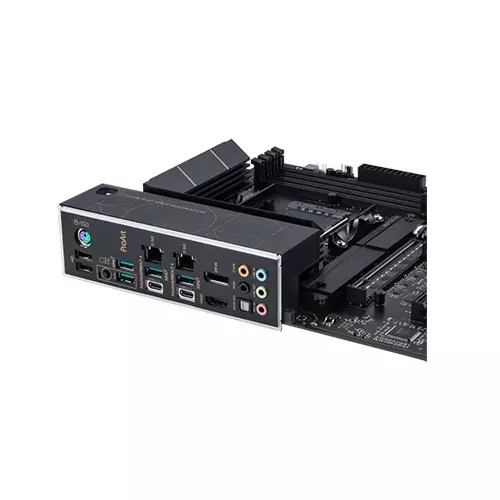

External I/O Ports 2 x Thunderbolt 4 USB Type-C® port(s)
4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI™ port
2 x Intel® I225-V 2.5Gb Ethernet ports
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
USB Rear USB:Total 8 ports
2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support
4 x USB 3.2 Gen 2 port(s) (4 x Type-A)
2 x USB 2.0 port(s) (2 x Type-A)
1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Physical Specification

Form Factor ATX
Dimension 30.5cm x 24.4cm

Warranty Information

Warranty 3 Year

DESCRIPTION

ASUS ProArt B550-Creator Motherboard in Bangladesh

ASUS ProArt B550-Creator Motherboard Featuring robust power delivery and PCI 4.0 support, ProArt B550-Creator maximizes the computing power of the newest AMD Ryzen processors to hurry up tasks like 3D rendering and video post-production also as working with and sharing large files. the huge performance demands of those next-generation processors are balanced with a comprehensive and efficient thermal solution, leading to the rock-solid system stability and reliability ASUS ProArt B550-Creator Motherboards are known for and professional content creators demand.

Lightning-speed connectivity

The ProArt B550-Creator motherboard comes with a comprehensive array of powerful I/O ports — including two Thunderbolt 4 ports, two Intel 2.5G Ethernet, and 4 USB 3.2 Gen 2 ports — enabling quick data transfers and extensive storage options with flexible, hassle-free connectivity. ASUS ProArt B550-Creator Motherboard Each Thunderbolt 4 port delivers up to 40 Gbps of bidirectional bandwidth for the newest high-speed devices and drives. Thunderbolt 4 also supports up to 2 external 4K UHD displays or one 8K display.

The two Intel 2.5G Ethernet (I225-V) ports enable faster transfers of huge files across local networks — ideal for copying large files to network-attached storage (NAS) devices, streaming high-res video, and sharing assets with colleagues. ProArt B550-Creator also features CreationFirst, exclusive network optimization software that allocates more bandwidth to hurry up essential apps for creative work.

Unthrottled performance

ProArt B550-Creator provides robust power delivery and comprehensive cooling to handle the newest AMD Ryzen 5000 Series desktop processors, ensuring incredible performance for even the foremost demanding creative tasks. Its 12+2 power stage VRM is prepared for the highest Ryzen chips, and 8pin ProCool auxiliary power connectors with solid pins ensure steady and stable power delivery to those stages.


To keep thermals in check, high-mass heatsinks with extensive surface areas also as high-quality thermal pads transfer heat from the VRM and choke areas. alongside an efficient M.2 heatsink design, ProArt B550-Creator effectively cools both the CPU and SSD for rock-solid system stability and fast storage performance, delivering seamless content-creation workflows.
