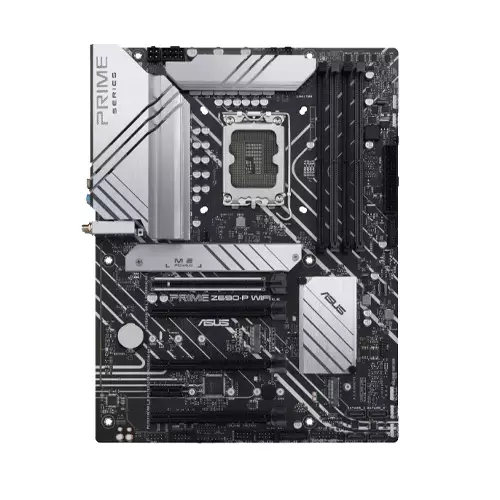

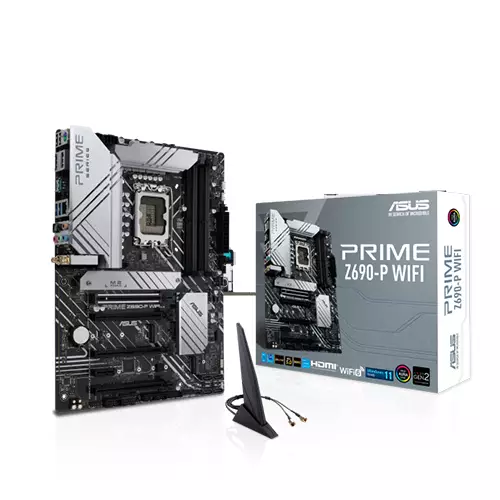

ASUS PRIME Z690-P D5 WIFI ATX LGA 1700 Motherboard
ASUS PRIME Z690-P D5 WIFI ATX LGA 1700 Motherboard
ASUS PRIME Z690-P D5 WIFI ATX LGA 1700 Motherboard - 1
ASUS PRIME Z690-P D5 WIFI ATX LGA 1700 Motherboard - 2

ASUS PRIME Z690-P D5 WIFI ATX LGA 1700 Motherboard

0 Reviews
Stock : Discontinued
PID : P00025063734
SKU : TL-ASUPRI
Brand : Asus
Model : PRIME Z690-P D5 WIFI
Warranty : 3 Years
  • ATX Form Factor
  • Intel Z690 Chipset
  • LGA 1700 Socket
  • 4 x Dual-Channel DDR5 Slots

SPECIFICATIONS

Processor

Supported CPU Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel Z690 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Storage

Supported Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® Z690 Chipset**

M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Graphics

Graphics 1 x DisplayPort

1 x HDMI port

Audio & Microphone

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Rear optical S/PDIF out port

Premium audio capacitors

Dedicated audio PCB layers

Ports

Slots Intel® 12th Gen Processors*

1 x PCIe 5.0/4.0/3.0 x16 slot

Intel® Z690 Chipset**

1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x16 slots (support x4 mode)

1 x PCIe 3.0 x1 slot
Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-5pin System Panel header

1 x Thunderbolt™ header

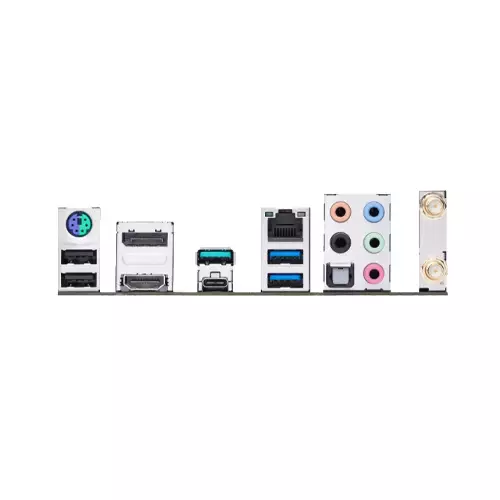

External I/O Ports 1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port

1 x PS/2 Keyboard/Mouse combo port
USB Rear USB:Total 6 ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB:Total 9 ports

1 x USB 3.2 Gen 1 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports*

Physical Specification

Form Factor ATX
Dimension 30.5cm x 23.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

ASUS PRIME Z690-P D5 WIFI Motherboard

The ASUS PRIME Z690-P WIFI Motherboard from ASUS. Designed for both business professionals and gamers, this motherboard offers robust performance whether you are looking to push the limits of raw power or build a streamlined machine for everyday tasks. An Intel Z690 chipset powers this motherboard, offering an LGA 1700 socket, four dual-channel DDR4 RAM slots, four SATA III ports, and three M.2 interfaces. Install a wide range of graphics and utility cards with a multitude of expansion slots, including one PCIe 5.0 x16, one PCIe 4.0 x16, two PCIe 3.0 x16, and one PCIe 3.0 x1. An array of USB ports and headers allow you to connect resource-demanding peripherals such as external drives and more with USB 3.2 Gen 1 and Gen 2 Type-A Ports. The USB 3.2 Gen 2x2 Type-C port provides greater power for devices like audio interfaces and mass storage devices. Bluetooth 5.2 technology allows you to connect wireless devices such as speakers and controllers for a cable-free experience. Wi-Fi 6 (802.11ax) networking allows you to connect to wireless access points, or use the integrated Realtek 2.5 Gigabit Ethernet port if you prefer a wired connection so you can easily access cloud storage or stream your favorite media. The ASUS PRIME Z690-P WIFI Motherboard supports Windows 10 (64-Bit) as well as Windows 11 (64-Bit) right out of the box.
