| Stock Status | Out Of Stock |
| Product ID | 11044 |
| Brand | Asus |
| Product model | PRIME X570-P CSM |
| Warranty | 3 year |
| Total Reviews | Based on 0 reviews. - Write a review |
| Processor | |
| Supported CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors |
| Mainboard | |
| Chipset | AMD X570 |
| Memory | |
| Memory | 3rd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen™ Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
| Storage | |
| Supported Storage | 3rd Gen AMD Ryzen™ Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
| Graphics | |
| Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors VGA output support : HDMI port - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz |
| Audio & Microphone | |
| Audio | Realtek® S1200A 8-Channel High Definition Audio CODEC * - Supports : Jack-detection, Front Panel Jack-retasking - Front panel audio connector (AAFP) Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| Networking & Connectivity | |
| LAN | Realtek RTL8111H ASUS LAN Guard |
| Ports | |
| Slots | 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1 |
| Internal I/O Ports | 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 1 x COM port(s) connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x PCH_FAN (1 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| External I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A *) |
| USB | 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A *) 3rd and 2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors : 2 x USB 3.2 Gen 1 port(s) (2 at back panel, blue, Type-A) AMD X570 chipset : 2 x USB 3.2 Gen 2 port(s) (2 at back panel, teal blue, Type-A) AMD X570 chipset : 4 x USB 3.2 Gen 1 port(s) (4 at mid-board) AMD X570 chipset : 5 x USB 2.0 port(s) (2 at back panel, , 3 at mid-board) |
| Technical Info | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Physical Specification | |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| Warranty Information | |
| Warranty | 03 Years |

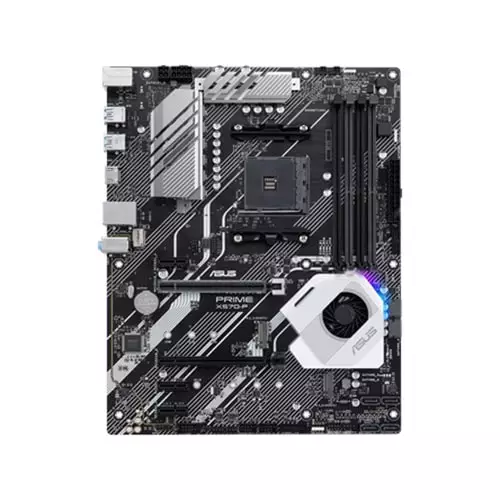

ASUS PRIME X570-P CSM AM4 ATX Motherboard
| Overview : |
|
| **03 Year Wrranty. |
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for ASUS product, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and highlight to help you stay in touch with the ASUS community
Aura Sync RGB headers
Outshine the competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync offers full lighting connected via the motherboard's RGB headers, with a variety of functional presets for external LED strips.* And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.
Addressable Gen 2 RGB header
Prime X570-P/CSM's Addressable Gen 2 RGB header is now capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
