Stock Status | Discontinue |
Product ID | 24720 |
Product SKU | TLH610MDD4 |
Brand | |
Product model | PRIME H610M-D D4 |
Warranty | 3 years |
Total Reviews | Based on 0 reviews. - Write a review |
Discontinue
- Stock availability is subject to change. Please confirm availability before shopping by calling us.
- The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
- Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
- We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
Processor | |
Supported CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
Mainboard | |
Chipset | Intel H610 Chipset |
Memory | |
Memory | 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
Storage | |
Supported Storage | Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H610 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports |
Graphics | |
Graphics | 1 x D-Sub port 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
Audio & Microphone | |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
Networking & Connectivity | |
LAN | 1 x Realtek 1Gb Ethernet |
Ports | |
Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |

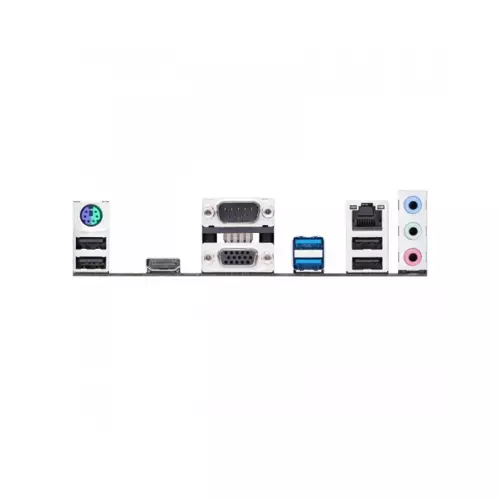

USB | Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) |
HDMI | 1 x HDMI port |
Technical Info | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Physical Specification | |
Form Factor | mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm ) |
Warranty Information | |
Warranty | 3 years |

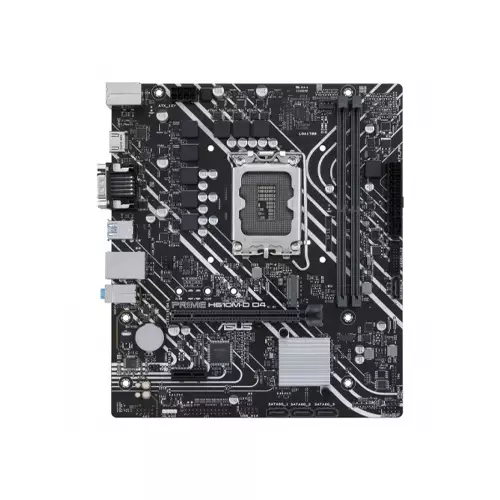

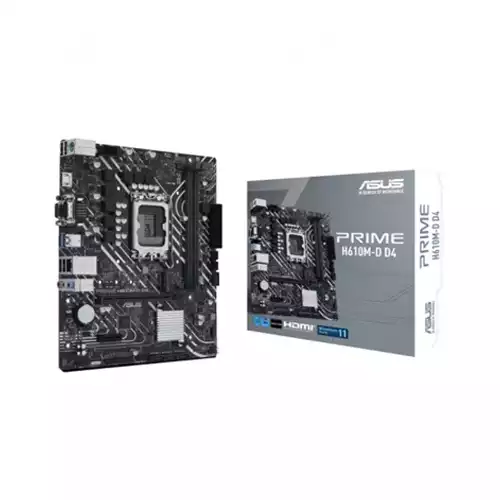

Best ASUS PRIME H610M-D D4 12th Gen Intel Motherboard BD
The ASUS PRIME H610M-D D4 supports 12th Gen Intel processors and Intel LGA 1700 socket and Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. This motherboard comes with an Enhanced power solution, six-layer PCB, ProCool socket, military-grade TUF components, and Digi+ VRM for maximum durability. It has a robust power design, comprehensive cooling solutions, and intelligent tuning options. It features 32Gbps M.2 slot, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1 support. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. The motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage, ASUS PRIME H610M-D D4 motherboards are the perfect foundation for your next high-core-count battle rig. The TUF GAMING platform gives you the arsenal you need to build and optimize your dream gaming rig, without unnecessary complexity. the new ASUS PRIME H610M-D D4 motherboards provide a high-performance gaming package with a long list of features ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
