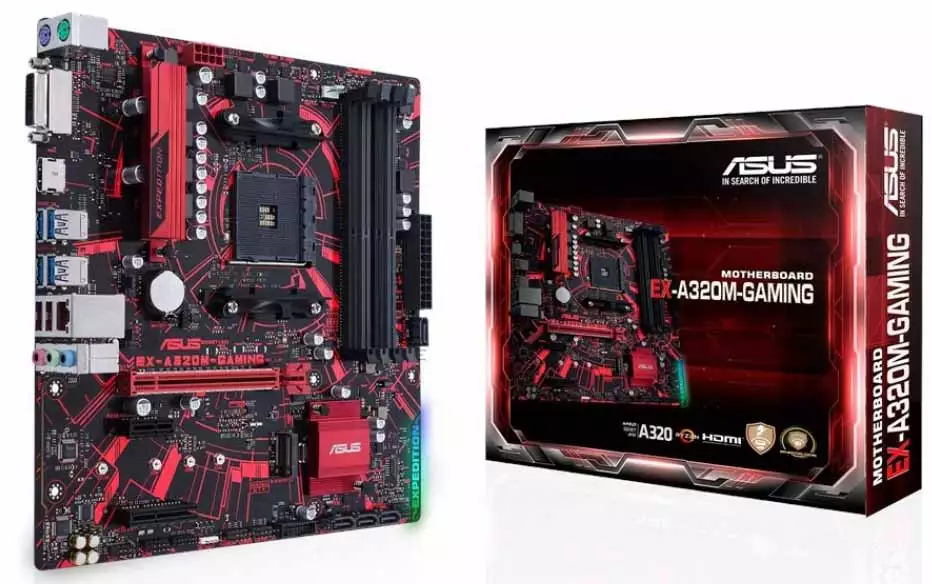

Asus EX-A320M AMD GAMING Motherboard
- Chipset: AMD A320
- Supported CPU: AMD AM4 Socket for AMD Ryzen™/AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/...
- LAN: Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
SPECIFICATIONS
Processor
Supported CPU
AMD AM4 Socket for AMD Ryzen™/AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation/7th Generation A-series/Athlon X4/Athlon™ Processors
Supports CPU up to 8 cores
Supports CPU up to 8 cores
Mainboard
Chipset
AMD A320
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Memory
Memory
AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory
ECC Memory (ECC model) support varies by CPU.
4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Un-buffered Memory
ECC Memory (ECC model) support varies by CPU.
Storage
Supported Storage
AMD Ryzen™ Processors :
1 x M.2 x4 Socket 3(SATA 6Gb/s & PCI-E Gen3 x4 link),
AMD 7th Generation A-series/Athlon™ Processors :
1 x M.2 Socket 3,
AMD A320 chipset :
4 x SATA 6Gb/s port(s),
1 x M.2 x4 Socket 3(SATA 6Gb/s & PCI-E Gen3 x4 link),
AMD 7th Generation A-series/Athlon™ Processors :
1 x M.2 Socket 3,
AMD A320 chipset :
4 x SATA 6Gb/s port(s),
Graphics
Graphics
Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively)
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively)
Networking & Connectivity
LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio & Microphone
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Ports
Slots
AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Generation A-series/Athlon™ Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD A320 chipset
1 x PCIe 2.0 x4 (x2 mode)
1 x PCIe x1
1 x PCIe 3.0/2.0 x16 (x16 mode)
AMD 7th Generation A-series/Athlon™ Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD A320 chipset
1 x PCIe 2.0 x4 (x2 mode)
1 x PCIe x1
Internal I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) ,
2 x USB 2.0
3 x Audio jack(s)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue) ,
2 x USB 2.0
3 x Audio jack(s)
USB
AMD A320 chipset :
6 x USB 3.0 port(s) (4 at back panel, , 2 at mid-board)
AMD A320 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
6 x USB 3.0 port(s) (4 at back panel, , 2 at mid-board)
AMD A320 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Physical Specification
Form Factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Warranty Information
Warranty
03 years
DESCRIPTION
Asus EX A320M AMD
Non-stop action: The best choice for iCafés, built-to-order gaming systems and quality-driven businesses.
Non-stop durability: Unbeatable features including anti-moisture coating, gold-plated PCIe x16 and LAN design, USB Guard, plus 5X Protection III.
Non-stop gaming: Aura sync, ASUS Beyond VR ready, Epic audio experiences
Non-stop challenger: ASUS iCafe LAB-certified reboot- and compatibility-tested for diskless-system use, top games and 100+ peripherals, 1000+ CPUs, memory modules, graphics cards, and more.
[product_table id="34" limit="10" type="filter" filter_category="7271"]
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the Asus EX-A320M AMD GAMING Motherboard Price in Bangladesh 2026 ?
The Asus Asus EX A320M Price in BD is 33,600৳ . This Asus EX-A320M AMD GAMING Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus Asus EX A320M by 33,600৳ and its regular price is 36,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
