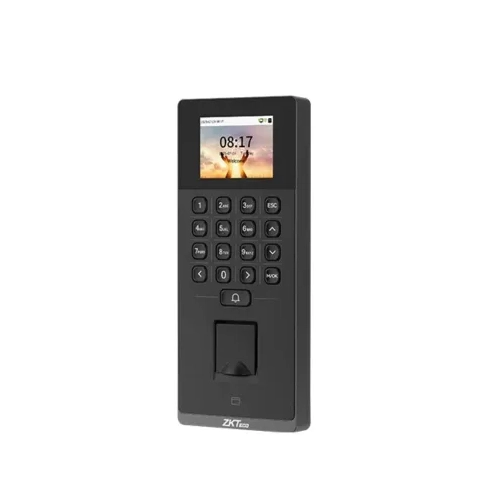

ZKTeco F34 Lite WiFi Fingerprint Access Control Terminal

ZKTeco F34 Lite WiFi Access Control Terminal

The ZKTeco F34 Lite WiFi Access Control Terminal is a biometric access control solution designed for offices, businesses, commercial spaces, and other environments requiring secure and convenient entry management. It supports fingerprint, card, and password authentication, allowing organizations to choose different verification methods according to their security requirements. The terminal supports up to 3,000 users, 3,000 fingerprint templates and 3,000 cards, while its transaction capacity reaches 200,000 records. ZKTeco also specifies TCP/IP connectivity and optional 2.4GHz Wi-Fi, along with interfaces for electric locks, door sensors and exit buttons.

Multiple Authentication Methods

The F34 Lite supports three primary authentication methods: fingerprint, card and password. This provides flexibility for organizations where different users may require different access methods. The physical keypad allows password-based authentication, while the optical fingerprint sensor provides biometric verification.

3,000 User Capacity

The terminal can accommodate up to 3,000 users, with capacity for 3,000 fingerprint templates and 3,000 cards. This makes it suitable for small and medium-sized organizations that need to manage access for a substantial number of employees or authorized users.

Fast Fingerprint Authentication

ZKTeco specifies fingerprint authentication at less than 0.5 seconds, with a FAR of ≤0.0001% and FRR of ≤0.01% under its specified fingerprint algorithm conditions. The standard biometric algorithm is ZKFingerprint V13.0, with V10.0 listed as optional.

200,000 Transaction Capacity

The F34 Lite can store up to 200,000 transaction records, allowing access events to be retained for later review and management. This is useful for organizations that need to maintain access records over time.

Wi-Fi and TCP/IP Connectivity

The F34 Lite supports TCP/IP networking and optional 2.4GHz Wi-Fi based on IEEE 802.11b/g/n/ax. The terminal also provides USB Type-A connectivity and Wiegand, RS485 and other access-control interfaces. The reference listing from Star Tech also identifies USB Type-A, TCP/IP, Wi-Fi, electric lock, door sensor and exit button among the available interfaces.

2.8-Inch Color Display

Star Tech lists the F34 Lite with a 2.8-inch display, while ZKTeco's current official documentation specifies a 2.4-inch TFT color LCD with 240 × 320 resolution for the F34 Lite. Because the retailer and current manufacturer information differ on this specification, it is safer not to treat the 2.8-inch figure as confirmed for every market/version.

IP65 Protection

The F34 Lite has an IP65 enclosure rating, protecting against dust and water ingress. This makes it suitable for installation in environments where the terminal may be exposed to dust or water splashes.

Access Control Interfaces

The terminal is designed to integrate with access-control hardware and supports connections for an electric lock, door sensor, exit button, alarm, and doorbell. It also provides a 12V output and RS485 interface for compatible access-control peripherals.

Power and Installation

ZKTeco specifies a DC 12V 1.5A power supply for the F34 Lite. Optional PoE support using IEEE 802.3at is also listed. The terminal is designed for wall mounting and is compatible with Asian Gang Box and Single Gang Box installations.

Why Buy ZKTeco F34 Lite from Tech Land BD?

Buy the ZKTeco F34 Lite WiFi Access Control Terminal from Tech Land BD for a reliable biometric access management solution featuring fingerprint, card, and password authentication, 3,000-user capacity, 200,000 transaction storage, TCP/IP connectivity, optional Wi-Fi, and IP65 protection. It is a practical choice for offices, businesses, and commercial environments requiring controlled and trackable access. Tech Land BD offers a convenient option for customers looking for ZKTeco access control solutions in Bangladesh.

FAQ

What authentication methods does the ZKTeco F34 Lite support?

It supports fingerprint, card, and password authentication.

How many users can the F34 Lite support?

It supports up to 3,000 users, with 3,000 fingerprint templates and 3,000 cards.

How many transaction records can it store?

The F34 Lite supports up to 200,000 transaction records.
