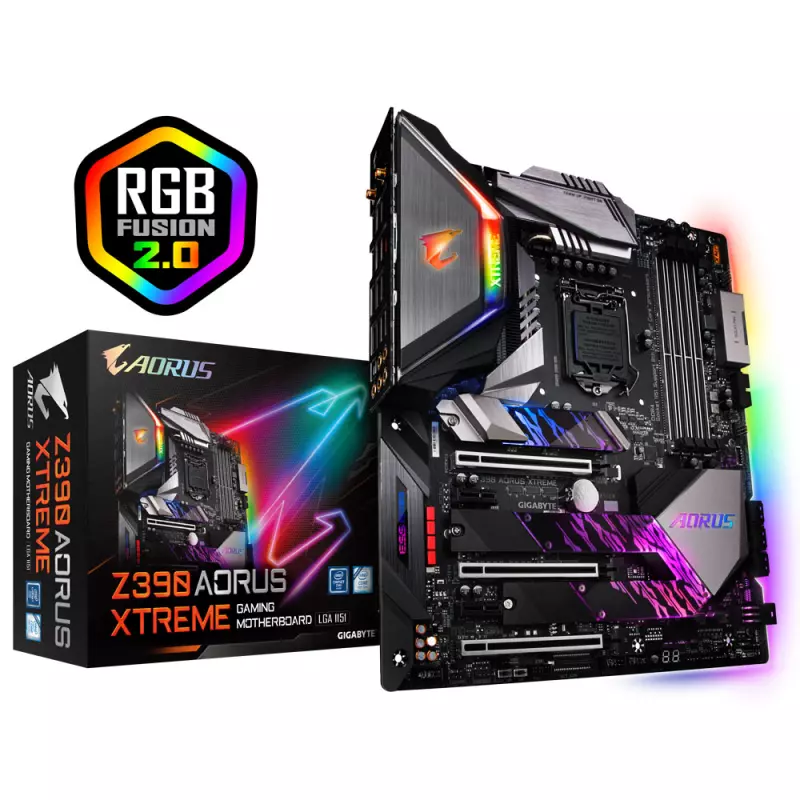

Gigabyte Z390 AORUS Xtreme Gaming motherboard
Gigabyte Z390 AORUS Xtreme Gaming motherboard
Gigabyte Z390 AORUS Xtreme Gaming motherboard - 1
Gigabyte Z390 AORUS Xtreme Gaming motherboard - 2

Gigabyte Z390 AORUS Xtreme Gaming motherboard

0 Reviews
Stock : Discontinued
PID : P0002506825
Brand : Gigabyte
Model : Gigabyte Z390 Xtreme
Warranty : 3 Years
  • Chipset: Intel® Z390 Express Chipset
  • Supported CPU: Support for 9th and 8th Generation Intel®
  • LAN: Intel® GbE LAN chip (10/100/1000 Mbit)
  • Slots: PCI: 1 x PCI Express x16 slot, running at x16 (PCIEX16)

SPECIFICATIONS

Processor

Supported CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/ Intel® Core™ i7 processors/ Intel® Core™ i5 processors/ Intel® Core™ i3 processors/ Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

Mainboard

Chipset Intel® Z390 Express Chipset
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 4 x DDR4 DIMM sockets supporting up to 128GB (32GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4* /x2 SSD support) (M2A_SOCKET)
* Actual bandwidth may vary by CPU.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 2.0 x4/x2 SSD support) (M2B_SOCKET)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Graphics

Graphics Integrated Graphics Processor

Networking & Connectivity

LAN Intel® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC1220-VB codec|
ESS ES9018K2M DAC and TI OPA1622 operational amplifiers|
* The front panel line out jack supports DSD audio.|
High Definition Audio||
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots PCI:
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
Graphics Slot: No
M.2 Socket: 2 x M.2 Socket 3 connectors
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x CPU cooler LED strip/RGB LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x RGB (RGBW) LED strip header
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C™ port, with USB 3.1 Gen 2 support
2 x USB 3.1 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x temperature sensor header
USB 1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header
4 x USB 3.1 Gen 1 ports, available through the internal USB headers
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
4 x USB 3.1 Gen 1 ports on the back panel
HDMI Yes

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 Year

DESCRIPTION



Gigabyte Z390 AORUS XTREME

●︎ Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

●︎ Intel® Optane™ Memory Ready

●︎ 16 Phases IR Digital VRM Solution with PowIRstage

●︎ Cutting-edge Thermal Design with Fins-Array Heatsink, Direct Touch Heatpipe and NanoCarbon Baseplate

●︎ Onboard Intel CNVI 802.11ac 2x2 Wave 2 Wi-Fi with All new AORUS Antenna

●︎ 127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA audio capacitors

●︎ AQUANTIA® 10GbE BASE-T LAN and Intel® Gigabit LAN with cFosSpeed

●︎ Intel® Thunderbolt™ 3 onboard

●︎ Exclusive RGB FAN COMMANDER and OC Touch for professional casemodders and overclockers

●︎ USB TurboCharger for mobile device fast charge support

●︎ RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show design, support Addressable LED & RGB LED strips

●︎ Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

●︎ Front USB 3.1 Gen 2 Type-C™ Header

●︎ Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface with Triple Thermal Guards

**3 years warranty.




Ultra Durable

GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on the Z390 AORUS XTREME and reinforce every slot to make each of them solid and durable.

Extreme Power Design

To unleash the full potential of the new Intel 8-core CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z390 AORUS XTREME is a true beast among motherboards.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte Z390 AORUS Xtreme Gaming motherboard Price in Bangladesh 2026 ?

The Gigabyte Gigabyte Z390 Xtreme Price in BD is 61,500৳ . This Gigabyte Z390 AORUS Xtreme Gaming motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Gigabyte Z390 Xtreme by 61,500৳ and its regular price is 63,200৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
