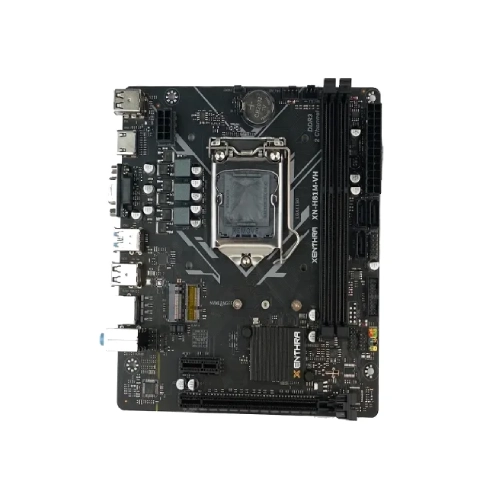

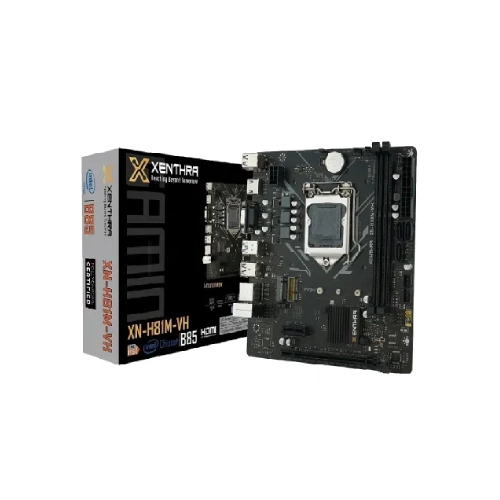

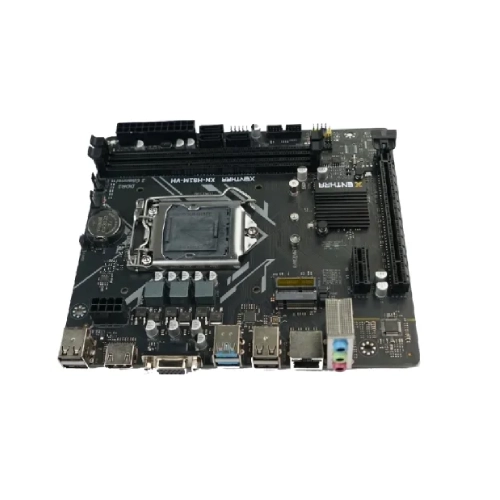

XENTHRA Intel XN-H81M-VH 4th Gen mATX Motherboard
- Intel H81 Chipset
- LGA1150 Socket
- DDR3 Dual Channel
- HDMI & VGA Output
Product Pricing
SPECIFICATIONS
Processor
Support for Intel 4th Gen Core i7 / i5 / i3, Pentium, Celeron, and Xeon E3-1200 v3 series
CPU Socket: LGA 1150
Intel B85 Express Chipset
Memory
2x DDR3 DIMM Slots, Dual-Channel, up to 16GB, 1600 / 1333 / 1066 MHz
Storage
1x M.2 (Supports NVMe PCIe 2.0 x4 & SATA NGFF), 1x SATA 3.0 (6Gbps), 2x SATA 2.0 (3Gbps)
Graphics
Integrated Graphics Support via compatible CPU
Networking & Connectivity
1x Realtek Gigabit RJ45 LAN
1x M.2 Wi-Fi / WLAN Slot (Module not included)
Audio & Microphone
3x 3.5mm Audio Jacks (Line-In, Line-Out, Mic-In)
Ports
2x FUSB 2.0 Headers (Supports 4 additional USB 2.0 front ports)
1x 4-Pin CPU Fan Connector, 1x 3-Pin System (SYS) Fan Connector
1x 14-Pin TPM 2.0 Header, 1x 2×5-Pin Diagnostic Card Header, 1x JCMOS Header
1x FPANEL Front Panel Header, 1x Front Panel Audio Header
24-Pin ATX Main Power + 4-Pin 12V CPU Power Receptacle
Physical Specification
700g
Warranty Information
3 Years
DESCRIPTION
XENTHRA XN-H81M-VH 4th Gen mATX Motherboard Best Price in Bangladesh
The XENTHRA XN-H81M-VH 4th Gen mATX Motherboard is a dependable platform for building or upgrading desktop PCs powered by Intel 4th Generation Core, Pentium, and Celeron processors. Designed with the Intel H81 chipset and LGA1150 socket, this motherboard provides stable performance for everyday computing, office work, multimedia, and home use. Its compact Micro ATX form factor fits easily into most standard PC cases while offering the essential features needed for a reliable system. The motherboard supports dual-channel DDR3 memory, allowing improved multitasking and system responsiveness. It includes a PCI Express x16 slot for installing a dedicated graphics card, making it suitable for users who want to enhance gaming or graphics performance.
For display connectivity, the XN-H81M-VH provides HDMI and VGA outputs, offering compatibility with both modern and legacy monitors. Storage devices can be connected through SATA ports, ensuring reliable support for HDDs and SSDs. Whether you're assembling a budget-friendly desktop, replacing an older motherboard, or extending the life of an existing Intel 4th Gen PC, the XENTHRA XN-H81M-VH delivers a practical combination of stability, compatibility, and value. Its straightforward design and essential connectivity make it an excellent choice for students, offices, and home users seeking a cost-effective motherboard solution.
Why Buy XENTHRA XN-H81M-VH 4th Gen mATX Motherboard from Tech Land BD?
XENTHRA XN-H81M-VH 4th Gen mATX Motherboard from Tech Land BD to receive a 100% genuine product at a competitive price. Enjoy fast nationwide delivery, secure online shopping, and reliable after-sales support from one of Bangladesh's trusted technology retailers.
FAQ
Which processors are compatible with the XENTHRA XN-H81M-VH?
The motherboard supports Intel 4th Generation Core i7, Core i5, Core i3, Pentium, and Celeron processors with the LGA1150 socket.
What type of memory does this motherboard support?
It supports DDR3 dual-channel memory through two DIMM slots. The maximum supported capacity depends on the motherboard revision and BIOS implementation.
Does the motherboard support a dedicated graphics card?
Yes. It includes a PCI Express x16 slot for installing a dedicated graphics card.
