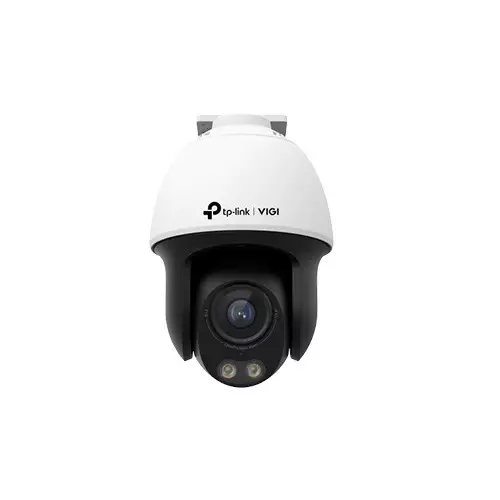

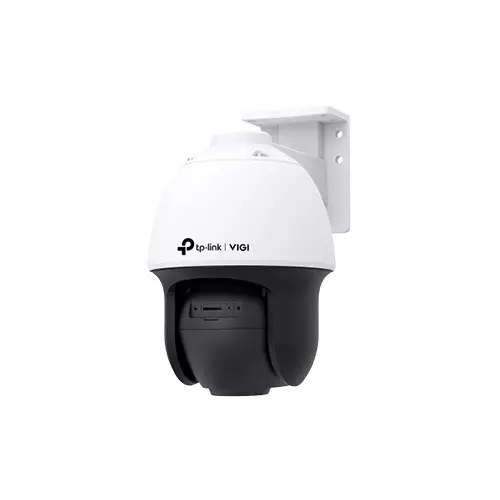

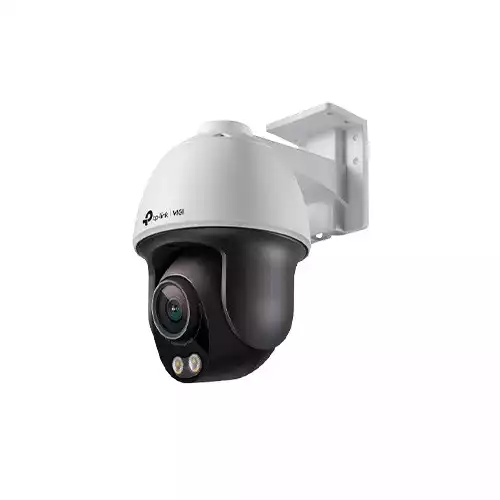

Tp-Link VIGI C540S 4MP Outdoor Color Pro Night Vision Pan Tilt Network Camera
- VIDEO Max. Resolution -2688 x 1520
- LENS Type - Fixed Focal Lens
- Image Sensor - 1/1.79” Progressive Scan CMOS
- Shutter Speed - 1/3 to 1/10000 s
Product Pricing
EMI Start From*
৳440
SPECIFICATIONS
Display
Image Sensor
1/1.79” Progressive Scan CMOS
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light,
HLC Adjustable by Client Software
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range - 120 dB
SNR - ≥ 52 dB
Image Parameters Switch - Yes
Privacy Mask - Up to 4 Masks
ROI - 1 Region
OSD Setting - Yes
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light,
HLC Adjustable by Client Software
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range - 120 dB
SNR - ≥ 52 dB
Image Parameters Switch - Yes
Privacy Mask - Up to 4 Masks
ROI - 1 Region
OSD Setting - Yes
Camera
IR Distance
DORI Distance
4 mm
Detect: 63 m (209 ft)
Observe: 26 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
4 mm
Detect: 63 m (209 ft)
Observe: 26 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
Camera Feature
Slow Shutter - Yes
Minimum Illumination
0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism - IR Cut Filter
Day/Night Switch - Day/Night/Auto/Schedule-Switch
Minimum Illumination
0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism - IR Cut Filter
Day/Night Switch - Day/Night/Auto/Schedule-Switch
Aperture
F1.0±5%
LENS
FOV
4mm:
Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127°
4mm:
Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127°
Lens type
Fixed Focal Lens
Shutter Speed
1/3 to 1/10000 s
Lens Mount
M16*P 0.5
Focal Length
4 mm
Networking & Connectivity
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Networks
ONVIF - Yes
API - Open Network Video Interface (Profile S)
Simultaneous Live View - 3 Main Streams & 3 Sub-Streams
Client - VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser - Google Chrome 57 and above
Firefox 52 and above - Safari 11 and above
Microsoft Edge 91 and above
Cloud - Yes
Network Storage
NAS (NFS, SMB/ CIFS)
API - Open Network Video Interface (Profile S)
Simultaneous Live View - 3 Main Streams & 3 Sub-Streams
Client - VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser - Google Chrome 57 and above
Firefox 52 and above - Safari 11 and above
Microsoft Edge 91 and above
Cloud - Yes
Network Storage
NAS (NFS, SMB/ CIFS)
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Audio & Microphone
Built-in Mic
Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker
Yes
Audio
Audio Communication - Yes
Audio Input - Yes
Audio Output - Yes
Audio Compression - Yes
Audio Sampling Rate - 8KHz
Environment Noise Filtering - Yes
Audio Bit Rate - 64 Kbps(G.711 alaw)
Audio Input - Yes
Audio Output - Yes
Audio Compression - Yes
Audio Sampling Rate - 8KHz
Environment Noise Filtering - Yes
Audio Bit Rate - 64 Kbps(G.711 alaw)
Battery And Power
Power Supply
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3at, class 0)
PoE (802.3at, class 0)
Power Consumption
Maximum: 9 W
Typical (Day Mode): 1.76 W
Typical (Night Mode with IR LED): 3.5 W
Typical (Night Mode with White LED): 3.8 W
Typical (Day Mode): 1.76 W
Typical (Night Mode with IR LED): 3.5 W
Typical (Night Mode with White LED): 3.8 W
Power
DC Power Port
Security
Security Feature
Password Protection, HTTPS Encryption,
IP Address Filter, Digest Authentication
IP Address Filter, Digest Authentication
Video Features
Video Resolution
2688 x 1520
Video Quality
Main Stream
Frame Rate
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Frame Rate
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Special Features
Certifications
CE, NTRA, VCCI, KC, BSMI, FCC, IC
Others
Button
Yes
Other Features
Angle Adjustment (Manual)
Range
Pan: 0° to 348°, Tilt: 0° to 105°
ILLUMINATOR
IR LED
Quantity: 2
Range: 30m
Wavelength: 850nm
White LED
Quantity: 2
Range: 30m
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
ALARM AND EVENT MANAGEMENT
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection,
People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection,
Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Output Notification - Message Push
Deep Learning Function
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes,
making post-event search faster and easier.
Multi-Target-Type Detection
Supports Simultaneous Detection and Capture of Human Body and Vehicle
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
PTZ
Pan/tilt Range - Pan: 0° to 348°, Tilt: 0° to 105°
Pan/tilt Speed
Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s
Tilt Speed:
Configurable from 8° to 44°/s, Preset Speed: 44°/s
Manual Control Speed - Configurable from 8° to 35°/s
Presets - 300
Patrol Scan - 8 patrols, up to 8 presets for each patrol
Power-off Memory
Yes; Auto restore to previous PTZ and lens status after power failure
Park Action - Yes; Preset; Patrol Scan
3D Positioning - Yes
Range
Pan: 0° to 348°, Tilt: 0° to 105°
ILLUMINATOR
IR LED
Quantity: 2
Range: 30m
Wavelength: 850nm
White LED
Quantity: 2
Range: 30m
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
ALARM AND EVENT MANAGEMENT
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection,
People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection,
Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage
Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Output Notification - Message Push
Deep Learning Function
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes,
making post-event search faster and easier.
Multi-Target-Type Detection
Supports Simultaneous Detection and Capture of Human Body and Vehicle
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
PTZ
Pan/tilt Range - Pan: 0° to 348°, Tilt: 0° to 105°
Pan/tilt Speed
Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s
Tilt Speed:
Configurable from 8° to 44°/s, Preset Speed: 44°/s
Manual Control Speed - Configurable from 8° to 35°/s
Presets - 300
Patrol Scan - 8 patrols, up to 8 presets for each patrol
Power-off Memory
Yes; Auto restore to previous PTZ and lens status after power failure
Park Action - Yes; Preset; Patrol Scan
3D Positioning - Yes
Physical Specification
Color
White
Package Contents
VIGI Network Camera
Quick Start Guide
Mounting Accessories
Quick Start Guide
Mounting Accessories
Operating Humidity
95% or Less (Non-Condensing)
Storage humidity
95% or Less (Non-Condensing)
Materials
Plastic
Operating Temperature
-30–60 °C
Dimension
120 × 172 × 203 mm
Storage Temperature
-40–60 °C
Technical Info
Model
VIGI C540S
Warranty Information
Warranty
1-Year
DESCRIPTION
Tp-Link VIGI C540S 4MP Outdoor Color Pro Network Camera Price in Bangladesh
TP-Link VIGI C540S Outdoor Color Pro Night Vision Pan Tilt Network Camera is a high-performance security solution designed for superior surveillance in outdoor environments. With its 4MP resolution (2688 × 1520), this camera captures clear and detailed footage, even in low-light conditions, thanks to its 0.0005 Lux low-light capability and built-in white LED lights. The pan-tilt functionality (348° pan, 105° tilt) ensures maximum coverage, while patrol scanning and 3D positioning allow for precise monitoring. Equipped with two-way audio, users can communicate remotely through the built-in microphone and speaker. The H.265+ compression technology reduces bandwidth usage and storage costs without compromising video quality. Advanced AI-powered smart detection features, including human and vehicle classification, intrusion detection, and motion alerts, enhance security by filtering out irrelevant movements. The VIGI C540S is weatherproof (IP66-rated), making it ideal for all weather conditions. With multiple connectivity options, including PoE support and a microSD slot (up to 256GB), this camera is perfect for businesses, homes, and commercial spaces. Get the TP-Link VIGI C540S today at Tech Land BD with a 1-year warranty!
Does the TP-Link VIGI C540S support full-color night vision?
Yes, it features 30m full-color night vision with IR and white LEDs, providing clear footage even in low-light conditions.
Can I use the camera for two-way communication?
Yes, the built-in microphone and speaker allow two-way audio communication for real-time interaction.
Is the VIGI C540S camera waterproof?
No, the VIGI C540S is not rated for waterproofing (N/A for IP protection). However, it is suitable for indoor or covered outdoor installations.
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the Tp-Link VIGI C540S 4MP Outdoor Color Pro Night Vision Pan Tilt Network Camera Price in Bangladesh 2026 ?
The TP-Link VIGI C540S Price in BD is 12,490৳ . This Tp-Link VIGI C540S 4MP Outdoor Color Pro Night Vision Pan Tilt Network Camera Manufacturing by TP-Link Comes With 1 Year Warranty & Based on 0 reviews. Tech Land BD Offers you TP-Link VIGI C540S by 12,490৳ and its regular price is 13,800৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
Related Products
Save: ৳1,100
TP-Link VIGI C340 4MP 2.8MM Outdoor IR Bullet IP Camera
৳4,800
৳5,900
Save: ৳1,000
Tp-Link VIGI C350 5MP Outdoor Full-Color Bullet Network Camera
৳4,800
৳5,800
Save: ৳800
TP-Link VIGI C440 4MP 2.8mm Turret IP Dome Camera
৳4,700
৳5,500
Save: ৳1,210
TP-Link VIGI C240 4MP 2.8 mm Lens Turret IP Dome Camera
৳3,690
৳4,900
Save: ৳900
Tp-Link VIGI C250 5MP Full-Color Dome Network Camera
৳4,700
৳5,600
Save: ৳1,000
TP-Link VIGI C220I 2MP IR Dome IP Camera
৳2,200
৳3,200
Save: ৳650
TP-Link EasyCam C320 VIGI 2MP Outdoor Full-Color Bullet Network Camera
৳2,600
৳3,250
Save: ৳700
Tp-Link VIGI C330 3MP 4MM Outdoor Full-Color Bullet Network Camera
৳3,200
৳3,900
Save: ৳650
TP-link VIGI C230I Mini 3MP IR Dome Network Camera
৳3,300
৳3,950
Save: ৳1,000
TP-Link VIGI C340 4MP 4mm Lens Outdoor IR Bullet IP Camera
৳3,950
৳4,950
