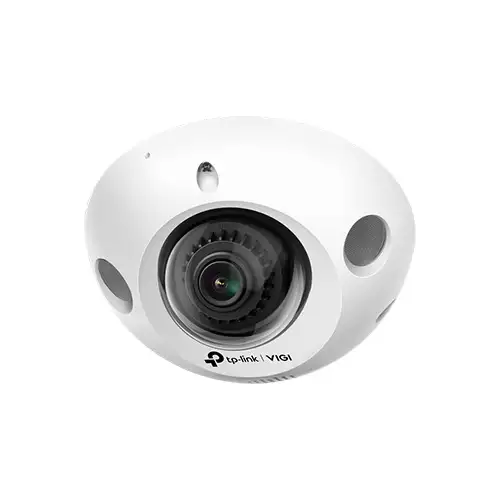

TP-link VIGI C230I Mini 3MP IR Dome Network Camera
- Image Sensor: 1/2.8” Progressive Scan CMOS
- Resolution: Max. 3MP (2304 × 1296) at 25/30 fps.
- Lens: 2.8mm, Aperture: F1.6, IR Distance: 30 meters
- Features: PoE, IK08, Two-Way Audio, DWDR, Smart Detection
Product Pricing
SPECIFICATIONS
Memory
Built-in Memory
Built-in memory Card Slot, Support MicroSD Card, Up to 256 GB
Display
Image Sensor
1/2.8” Progressive Scan CMOS
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, HLC Adjustable by Client Software, Rotation (90°/270°)
Image Enhancement: BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes
Viewing Angle
Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
Camera
IR Distance
30m
LENS
Aperture: F1.6
FOV: 2.8mm: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
DORI Distance
•2.8mm ;
•Detect: 49 m (161 ft)
•Observe: 20 m (67 ft)
•Recognize: 10 m (32 ft)
•Identify: 5 m (16 ft)
FOV: 2.8mm: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
DORI Distance
•2.8mm ;
•Detect: 49 m (161 ft)
•Observe: 20 m (67 ft)
•Recognize: 10 m (32 ft)
•Identify: 5 m (16 ft)
Lens type
Fixed Focal Lens
Shutter Speed
1/3 to 1/10000 s
Lens Mount
M12
Focal Length
2.8 mm
Networking & Connectivity
Networks
Protocol:
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF: Yes
API: ONVIF
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser: Open Network Video Interface (Profile S)
Cloud: Yes
Security:
Password Protection, HTTPS Encryption,
IP Address Filter, Digest Authentication
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF: Yes
API: ONVIF
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser: Open Network Video Interface (Profile S)
Cloud: Yes
Security:
Password Protection, HTTPS Encryption,
IP Address Filter, Digest Authentication
Audio & Microphone
Built-in Mic
Built-in Microphone
Built-in Speaker
Yes
Audio
Audio Communication: Two-Way Audio
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
Audio Input: Yes
Audio Output: Yes
Audio Compression: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)
Battery And Power
Power Supply
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
PoE (802.3af/at, class 0)
Power Consumption
12V DC: Max 7.5W
PoE: Class 0
PoE: Class 0
Power
DC Power Port
Ports
Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port
Video Features
Video
Max. Resolution: 2304 × 1296
Main Stream
Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080,1280x720
Sub-Stream
Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Bit Rate Control: CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate:
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Main Stream
Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080,1280x720
Sub-Stream
Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Bit Rate Control: CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate:
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Special Features
Certifications
CE/VCCI/BSMI/KC/ONVIF
Protection
IK08
Features
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Smart Features
Smart Event:
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection,
People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection,
Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning
Output Notification: Message Push
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection,
People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection,
Object Abandoned Detection, Object Removal Detection
Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning
Output Notification: Message Push
Others
Other Features
Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
Digital Noise Reduction: 3D DNR
WDR: DWDR
Quantity: 2
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
Day/Night Mechanism: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto
Digital Noise Reduction: 3D DNR
WDR: DWDR
Quantity: 2
Range: 30m
Wavelength: 850nm
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off
Physical Specification
Package Contents
•VIGI Network Camera
•Quick Start Guide
•Mounting Accessories
•Mounting Template
•Quick Start Guide
•Mounting Accessories
•Mounting Template
Operating Humidity
95% or Less (Non-Condensing)
Storage humidity
95% or Less (Non-Condensing)
Materials
Plastic
Operating Temperature
-30–60 °C
Dimension
114 × 114 × 58 mm
Storage Temperature
-40–60 °C
Weight
Net Weight: 0.23 kg
Gross Weight: 0.41 kg
Gross Weight: 0.41 kg
Technical Info
Range
Pan: -30° to 30°
Tilt: 0° to 85°
Rotate: -15° to 15°
Tilt: 0° to 85°
Rotate: -15° to 15°
Brand
TP-link
Model
VIGI C230I Mini
Warranty Information
Warranty
1-Year
DESCRIPTION
TP-link VIGI C230I Mini 3MP IR Dome Network Camera In Bangladesh
TP-Link VIGI C230I Mini 3MP IR Dome Network Camera is a compact yet powerful surveillance solution available at Tech Land BD, designed to deliver high-quality security monitoring in a sleek form factor. Featuring a 1/2.8” Progressive Scan CMOS sensor, this camera offers 3MP resolution with a 2304 × 1296 max resolution, ensuring sharp and detailed video footage. Equipped with a 2.8 mm fixed focal lens and an F1.6 aperture, it provides a wide 127.9° diagonal field of view, making it ideal for covering large areas. The camera supports H.265+/H.265/H.264+/H.264 video compression, reducing bandwidth and storage requirements while maintaining excellent video quality. With IR LEDs offering 30m night vision and IP67 waterproof and IK08 vandal-proof ratings, it is built to withstand challenging environments. Advanced features like human and vehicle classification, intrusion detection, line-crossing detection, and object abandoned/removal detection enhance security, while DWDR (Digital Wide Dynamic Range) and 3D DNR (Digital Noise Reduction) ensure clear images in varying lighting conditions. The camera supports PoE (Power over Ethernet) for easy installation and is compatible with the VIGI App, VIGI Security Manager, and ONVIF for seamless remote monitoring. Additionally, it includes two-way audio and a built-in microSD card slot for local storage. Whether for home, office, or commercial use, the TP-Link VIGI C230I Mini is a versatile and reliable security camera, available now at Tech Land BD.
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the TP-link VIGI C230I Mini 3MP IR Dome Network Camera Price in Bangladesh 2026 ?
The TP-Link VIGI C230I Mini Price in BD is 3,300৳ . This TP-link VIGI C230I Mini 3MP IR Dome Network Camera Manufacturing by TP-Link Comes With 1-Year Warranty & Based on 0 reviews. Tech Land BD Offers you TP-Link VIGI C230I Mini by 3,300৳ and its regular price is 3,950৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
