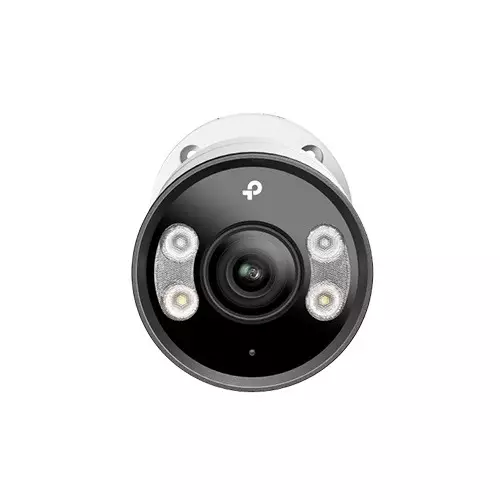

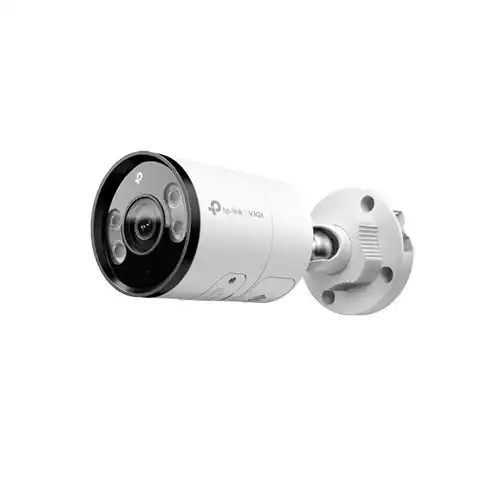

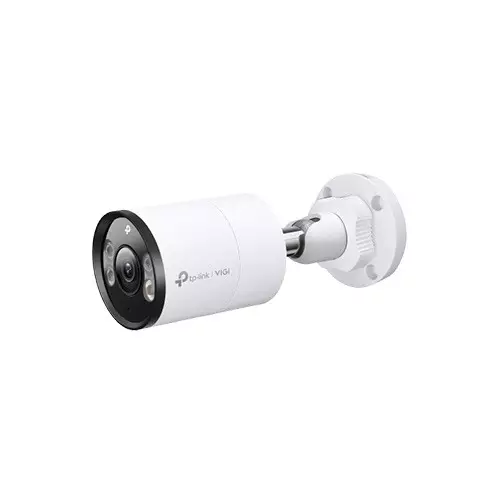

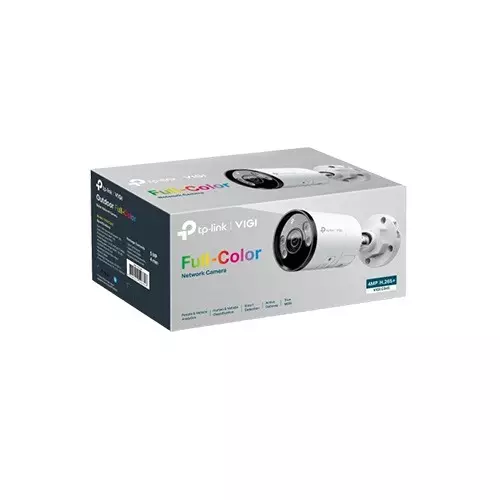

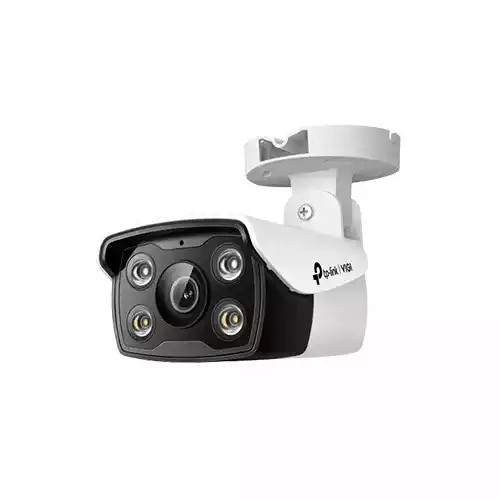

Tp-Link VIGI C345 4MP Outdoor Full-Color Bullet Network Camera

1/2.7” Progressive Scan CMOS

Image Settings

• Mirror

• Brightness

• Contrast

• Saturation

• Sharpness

• Exposure

• WDR

• White Balance

• Prevent Overexposure to Infrared Light

• HLC Adjustable by Client Software

Image Enhancement

BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range

120 dB



Note: When People & Vehicle Analytics is enabled, only DWDR is supported.

SNR - ≥ 52 dB
Image Parameters Switch - Yes

Privacy Mask - Up to 4 Masks

ROI - 1 Region

OSD Setting - Yes

Fixed Focal Lens

1/3 to 1/10000 s

M12*P 0.5

2.8/4/6 mm

TCP/IP, UDP, ICMP, HTTP, HTTPS,

DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Yes; Records Anything Going on within a 15-ft Radius of the Camera

Yes

Audio Communication - Two-Way Audio

Audio Input Yes

Audio Output - Yes

Audio Compression - Yes

Audio Sampling Rate - 8KHz

Environment Noise Filtering - Yes

Audio Bit Rate - 64 Kbps(G.711 alaw)

12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug

PoE: 802.3af/at, class 0, Max. 10.7 W

DC Power Port

Password Protection, HTTPS Encryption,

IP Address Filter, Digest Authentication

Max. Resolution - 2688 x 1520

Main Stream

• Frame Rate

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



• Resolution:

2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720



• Note:

If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Sub-Stream

• Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



• Resolution:

704x576,640x480, 352x288, 320x240



• Note:

If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

Bit Rate Control

CBR, VBR

Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264

H.264 Type

High Profile

H.264+

Main Stream Supported

H.265 Type

Main Profile*

H.265+

Main Stream Supported*

Video Bit Rate

• Main Stream: 256 Kbps to 6 Mbps

• Sub-Stream: 64 Kbps to 512 Kbps

CE, NTRA, VCCI, KC, BSMI, FCC, IC

IP67

yes

On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**



Deep Learning Function

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes,
making post-event search faster and easier.



Output Notificatio - Message Push



ALARM AND EVENT MANAGEMENT

Smart Event

• Human & Vehicle Classification

• Intrusion Detection

• Line-Crossing Detection

• Region Entering Detection

• Region Exiting Detection

• Object Abandoned Detection

• Object Removal Detection

• Loitering Detection

• Smart Frame

• People Detection

• Vehicle Detection

Basic Event

• Motion Detection

• Video Tampering Detection

• Exception ( Illegal Login)

• Scene Change Detection

Alarm Linkage

• Memory Card Video Recording

• Message Push

• Audible Warning

• White Light Flashing



Cloud - Yes



ONVIF - Yes

API - Open Network Video Interface (Profile S)

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Client

VIGI App, VIGI Security Manager, Web UI, VIGI VMS

Web Browser

• Google Chrome 57 and above

• Firefox 52 and above

• Safari 11 and above

• Microsoft Edge 91 and above





ILLUMINATOR

IR LED

• Quantity: 2

• Range: 30m

• Wavelength: 850nm

White LED

• Quantity: 2

• Range: 30m

Illuminator On/Off Control

Auto/Scheduled/Always on/Always off



Angle Adjustment (Manual)

Range

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°



DORI Distance

• 2.8 mm

Detect: 64 m (210 ft)

Observe: 27 m (89 ft)

Recognize: 13 m (43 ft)

Identify: 6 m (20 ft)



• 4 mm

Detect: 80 m (262 ft)
Observe: 33 m (108 ft)

Recognize: 16 m (52 ft)

Identify: 8 m (26 ft)



• 6 mm

Detect: 120 m (394 ft)

Observe: 50 m (164 ft)

Recognize: 24 m (79 ft)

Identify: 12 m (39 ft)



FOV

• 2.8 mm:

Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118°



• 4 mm:

Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°



• 6 mm:

Horizontal FOV: 52.7°, Vertical FOV: 29°, Diagonal FOV: 60.8°



Slow Shutter - Yes

Minimum Illumination

0.005 Lux; 0 Lux with IR/White light
Day/Night Mechanism

IR Cut Filter

Day/Night Switch

Unified/ Scheduled/ Auto

White

VIGI Network Camera

Quick Start Guide

Waterproof Cable Attachments

Mounting Accessories

95% or Less (Non-Condensing)

95% or Less (Non-Condensing)

Metal

-30–60 °C

74 × 184 × 74 mm

-40–60 °C

0.525 Kg

Tp-Link

VIGI C345

3-Years
