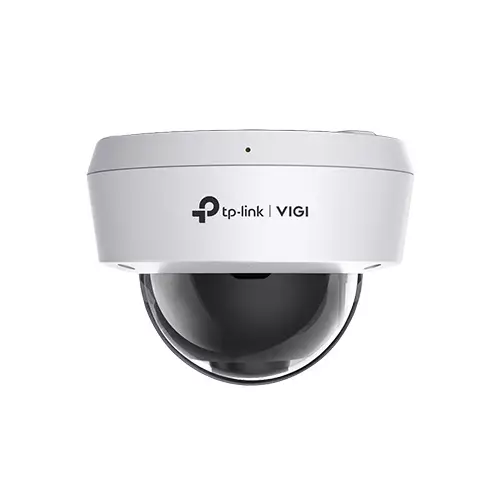

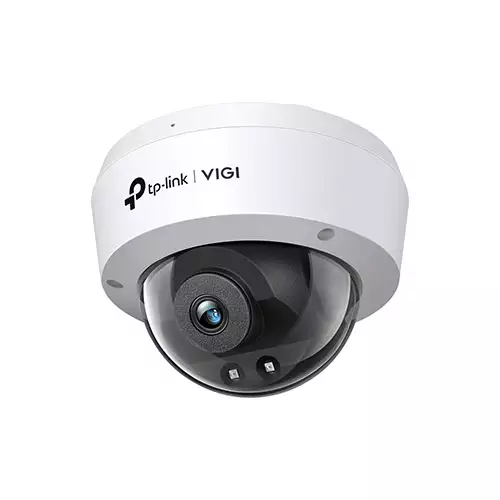

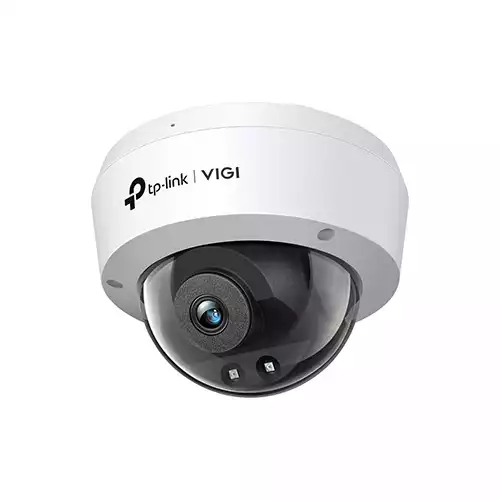

TP-link VIGI C230I 4MM 3MP IR Dome Network Camera
TP-link VIGI C230I 4MM 3MP IR Dome Network Camera
TP-link VIGI C230I 4MM 3MP IR Dome Network Camera - 1
TP-link VIGI C230I 4MM 3MP IR Dome Network Camera - 2

TP-link VIGI C230I 4MM 3MP IR Dome Network Camera

0 Reviews
Stock : In Stock
PID : P0792506310
Brand : TP-Link
Model : VIGI C230I 4MM
Warranty : 1-Year
  • Image Sensor: 1/2.8” Progressive Scan CMOS
  • Resolution: Max. 3 MP (2304 × 1296) at 25/30 fps.
  • Lens: 2.8mm, Aperture: F2.2, IR Distance: 45 meters
  • Features: PoE, IP67, IK10, DWDR, 3D DNR, Smart Detection

Product Pricing

Discount Price

৳3,000 ৳3,950
+ Available Payment Method

SPECIFICATIONS

Display

Image Sensor 1/2.8” Progressive Scan CMOS
Image mage Settings

• Mirror

• Brightness

• Contrast

• Saturation

• Sharpness

• Exposure

• WDR

• White Balance

• Prevent Overexposure to Infrared Light

• HLC Adjustable by Client Software

• Rotation(90°/270°)


Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes

Camera

IR Distance • Quantity: 2

• Range: 30m

• Wavelength: 850nm
LENS Aperture

• 2.8 mm: F2.2

• 4 mm: F2.0


FOV

• 2.8 mm: Horizontal FOV: 97.8°, Vertical FOV: 52.9°, Diagonal FOV: 117.9°


• 4 mm: Horizontal FOV: 82.8°, Vertical FOV: 44.5°, Diagonal FOV: 98.1°



DORI Distance

• 2.8 mm:

Detect: 49 m (161 ft)

Observe: 20 m (67 ft)

Recognize: 10 m (32 ft)

Identify: 5 m (16 ft)


• 4 mm:

Detect: 65 m (214 ft)

Observe: 27 m (89 ft)

Recognize: 13 m (43 ft)

Identify: 7 m (21 ft)
Lens type Fixed Focal Lens
Shutter Speed 1/3 to 1/10000 s
Lens Mount M12
Focal Length 2.8 mm/4 mm

Networking & Connectivity

Protocols • TCP/IP

• UDP

• ICMP

• HTTP

• HTTPS

• DHCP, DNS, RTSP

• NTP

• UPnP

• SSL/TLS

• FTP/SFTP

• RTP

• IPv4

• IPv6

• ARP
Networks ONVIF: Yes

API: Open Network Video Interface (Profile S)

Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

Client: VIGI App, VIGI Security Manager, Web UI


Web Browser:

• Google Chrome 57 and above

• Firefox 52 and above

• Safari 11 and above

• Microsoft Edge 91 and above


Cloud: Yes


Security:

Password Protection, HTTPS Encryption,

IP Address Filter, Digest Authentication

Audio & Microphone

Built-in Mic Yes; Records Anything Going on within a 15-ft Radius of the Camera
Audio Audio Input: Yes


Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environment Noise Filtering: Yes

Audio Bit Rate: 64 Kbps(G.711 alaw)

Battery And Power

Power Supply 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug

PoE: 802.3af/at, class 0, Max. 5.5 W
Power DC Power Port

Ports

Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Video Features

Video Max. Resolution: 2304 × 1296


Mainstream

• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720



Sub-Stream

• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution: 704x576, 640x480, 352x288, 320x240



Bit Rate Control: CBR, VBR



Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264



H.264 Type: High Profile

H.264+: Mainstream Supported

H.265 Type: Main Profile

H.265+: Mainstream Supported



Video Bit Rate:

• Mainstream: 256 Kbps to 4 Mbps

• Sub-Stream: 64 Kbps to 512 Kbps

Special Features

Certifications CE, NTRA, VCCI, BSMI
Protection IP67 Waterproof, IK10 Vandal Proof
Smart Features ALARM AND EVENT MANAGEMENT

Smart Event

• Intrusion Detection

• Line-Crossing Detection

• Region Entering Detection

• Region Exiting Detection

• Object Abandoned/Removal Detection

• Abnormal Sound Detection

• People Detection

• Vehicle Detection


Basic Event

• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)

• Video Tampering Detection

• Exception ( Illegal Login)



Alarm Linkage: Message Push

Output Notification: Message Push

Others

Other Features Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Unified/ Scheduled/ Auto



Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Physical Specification

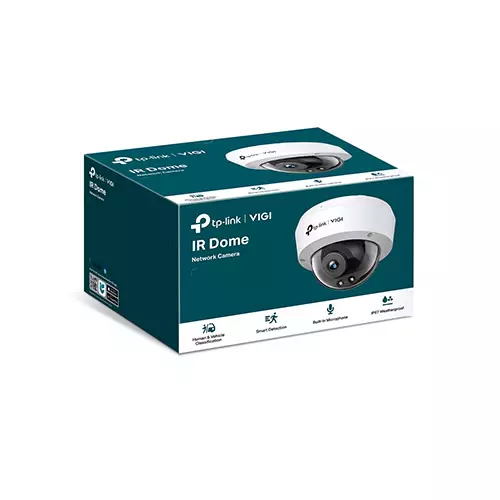

Package Contents • VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories
Operating Humidity 95% or Less (Non-Condensing)
Materials Plastic
Operating Temperature -30–60 °C
Dimension 115× 115× 86 mm (4.53× 4.53× 3.39 in)
Storage Temperature -40–60 °C
Weight Net Weight: 0.27 Kg
Gross Weight: 0.45 Kg

Technical Info

Range • Pan: 0° to 355°
• Tilt: 0° to 75°
Brand Tp-Link
Model VIGI C2301I V1.20

Warranty Information

Warranty 1-Year

DESCRIPTION

TP-link VIGI C230I 4MM 3MP IR Dome Network Camera in Bangladesh

TP-Link VIGI C230I 4MM 3MP IR Dome Network Camera is a high-performance surveillance solution available for purchase at Tech Land BD, designed to deliver exceptional security and monitoring capabilities. Featuring a 1/2.8” Progressive Scan CMOS sensor, this camera offers a 3MP resolution with a 2304 × 1296 max resolution, ensuring crystal-clear video quality. Equipped with a fixed focal lens (2.8 mm or 4 mm), it provides wide-angle coverage with horizontal FOVs of 97.8° and 82.8°, respectively, making it ideal for both indoor and outdoor use. The camera supports H.265+/H.265/H.264+/H.264 video compression, reducing bandwidth and storage requirements while maintaining high-quality footage. With IR LEDs offering a 30m night vision range and IP67 waterproof and IK10 vandal-proof ratings, it ensures reliable performance in harsh environments. Advanced features like motion detection, intrusion detection, line-crossing detection, and abnormal sound detection enhance security, while DWDR (Digital Wide Dynamic Range) and 3D DNR (Digital Noise Reduction) optimize image clarity in challenging lighting conditions. The camera supports PoE (Power over Ethernet) for easy installation and is compatible with the VIGI App and VIGI Security Manager for seamless remote monitoring. Whether for home, office, or commercial use, the TP-Link VIGI C2301I is a robust and versatile security camera, available now at Tech Land BD.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the TP-link VIGI C230I 4MM 3MP IR Dome Network Camera Price in Bangladesh 2026 ?

The TP-Link VIGI C230I 4MM Price in BD is 3,000৳ . This TP-link VIGI C230I 4MM 3MP IR Dome Network Camera Manufacturing by TP-Link Comes With 1-Year Warranty & Based on 0 reviews. Tech Land BD Offers you TP-Link VIGI C230I 4MM by 3,000৳ and its regular price is 3,950৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
