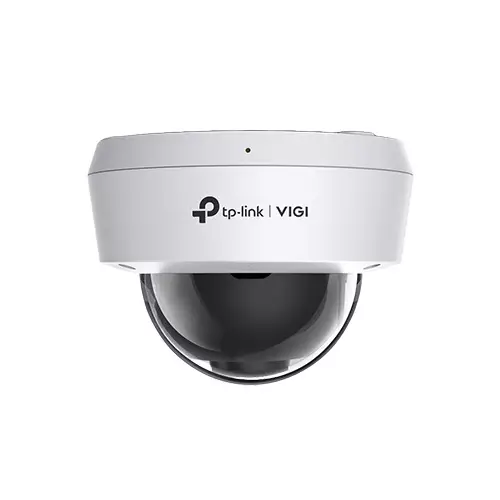

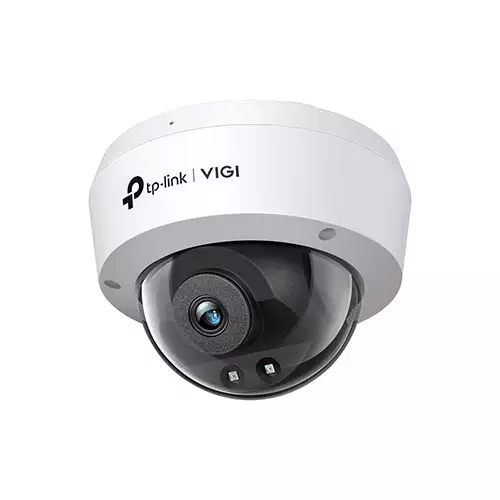

TP-link VIGI C2201 V1.2 2MP IR Dome Network Camera
TP-link VIGI C2201 V1.2 2MP IR Dome Network Camera
TP-link VIGI C2201 V1.2 2MP IR Dome Network Camera - 1
TP-link VIGI C2201 V1.2 2MP IR Dome Network Camera - 2

TP-link VIGI C2201 V1.2 2MP IR Dome Network Camera

0 Reviews
Stock : Discontinued
PID : P0792506311
Brand : TP-Link
Model : VIGI C2201 V1.2
Warranty : 1-Year
  • Image Sensor: 1/3” Progressive Scan CMOS
  • Resolution: Max. 2 MP (1920 × 1080) at 25/30 fps.
  • Lens: 2.8mm, Aperture: F2.2, IR Distance: 45 meters
  • Features: PoE, IP67, IK10, DWDR, 3D DNR, Smart Detection

SPECIFICATIONS

Display

Image Sensor 1/3” Progressive Scan CMOS
Image Image Settings

• Mirror

• Brightness

• Contrast

• Saturation

• Sharpness

• Exposure

• WDR

• White Balance

• Prevent Overexposure to Infrared Light

• HLC Adjustable by Client Software

• Rotation(90°/270°)


Image Enhancement: BLC/3D DNR/HLC/SmartIR

Wide Dynamic Range: DWDR

SNR: ≥ 52 dB

Image Parameters Switch: Yes

Privacy Mask: Up to 4 Masks

ROI: 1 Region

OSD Setting: Yes

Camera

IR Distance • Quantity: 2

• Range: 30m

• Wavelength: 850nm
LENS Aperture

2.8 mm: F2.2

4 mm: F2.0


FOV

• 2.8 mm: Horizontal FOV:88.2°, Vertical FOV: 48.7°, Diagonal FOV: 106.5°


• 4 mm: Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1°



DORI Distance

• 2.8 mm:

Detect: 45 m (149 ft)

Observe:19 m (62 ft)

Recognize: 9 m (30 ft)

Identify: 5 m (15 ft)



• 4 mm:

Detect: 60 m (198 ft)

Observe: 25 m (83 ft)

Recognize: 12 m (40 ft)

Identify: 6 m (20 ft)
Lens type Fixed Focal Lens
Shutter Speed 1/3 to 1/10000 s
Lens Mount M12
Focal Length 2.8 mm/4 mm

Networking & Connectivity

Protocols • TCP/IP

• UDP

• ICMP


• HTTP

• HTTPS

• DHCP, DNS, RTSP

• NTP

• UPnP

• SSL/TLS

• FTP/SFTP

• RTP

• IPv4

• ARP
Networks ONVIF: Yes

API: Open Network Video Interface (Profile S)

Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

Client: VIGI App, VIGI Security Manager, Web UI

Web Browser


• Google Chrome 57 and above

• Firefox 52 and above

• Safari 11 and above

• Microsoft Edge 91 and above


Cloud: Yes

Security:


Password Protection, HTTPS Encryption,

IP Address Filter, Digest Authentication

Audio & Microphone

Built-in Mic Yes, Records Anything Going on within a 15-ft Radius of the Camera
Audio Audio Input: Yes

Audio Compression: Yes

Audio Sampling Rate: 8KHz

Environment Noise Filtering: Yes

Audio Bit Rate: 64 Kbps(G.711 alaw)

Battery And Power

Power Supply PoE: 802.3af/at, class 0, Max. 5.5 W

Ports

Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE

Video Features

Video Max. Resolution: 1920 × 1080


Main Stream


• Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



• Resolution:

1920x1080, 1280x960, 1280x720



Sub-Stream

• Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps


• Resolution:

704x576, 640x480, 352x288, 320x240



Bit Rate Control: CBR, VBR


Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264

H.264 Type: High Profile

H.264+: Main Stream Supported

H.265 Type: Main Profile

H.265+: Main Stream Supported

Video Bit Rate

• Main Stream: 256 Kbps to 4 Mbps

• Sub-Stream: 64 Kbps to 512 Kbps

Special Features

Certifications CE, NTRA, VCCI, BSMI
Protection IP67 Waterproof, IK10 Vandal Proof
Smart Features mart Event

• Human & Vehicle Classification

• Intrusion Detection

• Line-Crossing Detection

• Region Entering Detection

• Region Exiting Detection

• Object Abandoned/Removal Detection

• Abnormal Sound Detection

• People Detection

• Vehicle Detection


Basic Event

• Motion Detection

• Video Tampering Detection

• Exception ( Illegal Login)


Alarm Linkage: Message Push

Output Notification: Message Push

Others

Other Features Minimum Illumination: Color: 0.01 Lux; 0 Lux with IR

Day/Night Mechanism: IR Cut Filter

Day/Night Switch: Unified/ Scheduled/ Auto



Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Physical Specification

Package Contents • VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories
Operating Humidity 95% or Less (Non-Condensing)
Storage humidity 95% or Less (Non-Condensing)
Materials Plastic
Operating Temperature -30–60 °C
Dimension 115× 115× 86 mm (4.53× 4.53× 3.39 in)
Storage Temperature -40–60 °C
Weight Net Weight: 0.27 Kg

Gross Weight: 0.45 Kg

Technical Info

Range • Pan: 0° to 355°

• Tilt: 0° to 75°
Brand TP-link
Model VIGI C2201 V1.2

Warranty Information

Warranty 1-Year

DESCRIPTION

TP-link VIGI C2201 V1.2 2MP IR Dome Network Camera in Bangladesh

TP-Link VIGI C2201 V1.2 2MP IR Dome Network Camera is a reliable and advanced surveillance solution available at Tech Land BD, designed to meet your security needs with exceptional performance. Featuring a 1/3” Progressive Scan CMOS sensor, this camera delivers 2MP resolution with a 1920 × 1080 max resolution, ensuring high-quality video footage. It comes with a fixed focal lens (2.8 mm or 4 mm) offering wide-angle coverage, with horizontal FOVs of 88.2° and 74.6°, respectively, making it suitable for both indoor and outdoor monitoring. The camera supports H.265+/H.265/H.264+/H.264 video compression, reducing bandwidth and storage usage while maintaining excellent video clarity. With IR LEDs providing 30m night vision and IP67 waterproof and IK10 vandal-proof ratings, it is built to withstand harsh environments. Advanced features like human and vehicle classification, intrusion detection, line-crossing detection, and abnormal sound detection enhance security, while DWDR (Digital Wide Dynamic Range) and 3D DNR (Digital Noise Reduction) ensure clear images in varying lighting conditions. The camera supports PoE (Power over Ethernet) for easy installation and is compatible with the VIGI App and VIGI Security Manager for seamless remote monitoring. Whether for home, office, or commercial use, the TP-Link VIGI C2201 is a durable and versatile security camera, available now at Tech Land BD.


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the TP-link VIGI C2201 V1.2 2MP IR Dome Network Camera Price in Bangladesh 2026 ?

The TP-Link VIGI C2201 V1.2 Price in BD is 3,350৳ . This TP-link VIGI C2201 V1.2 2MP IR Dome Network Camera Manufacturing by TP-Link Comes With 1-Year Warranty & Based on 0 reviews. Tech Land BD Offers you TP-Link VIGI C2201 V1.2 by 3,350৳ and its regular price is 4,050৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
