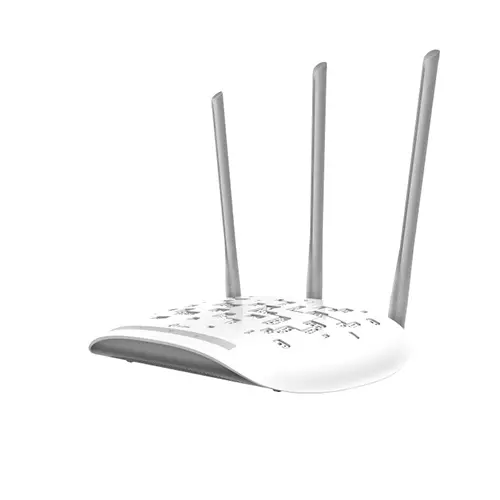

TP-LINK TL-WA901N Wireless Access Point Overview
Interface
| 1× 10/100M Ethernet Port(RJ45) Support Passive PoE
|
Button
| Power On/Off Button Reset Button WPS Button
|
External Power Supply
| 9VDC / 0.85A
|
Wireless Standards
| IEEE 802.11n IEEE 802.11g IEEE 802.11b
|
Dimensions
| 7.7 × 5.3 × 1.4 in
|
Antenna Type
| 3 Fixed Omni-Directional Antennas
|
Frequency
| 2.4 GHz
|
Signal Rate
| 450 Mbps at 2.4 GHz
|
Reception Sensitivity
| 11g 54M: -76dBm 11n 20Mbps: -73dBm 11n 40Mbps: -70dBm
|
Transmit Power
| CE: <20dBm; FCC: <30dBm
|
Wireless Modes
| Access Point, Range Extender Client, Multi-SSID
|
Wireless Functions
| Enable/Disable Wireless Radio WDS Bridge, WMM,
|
Wireless Security
| 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
|
DHCP
| Server, DHCP Client List
|
Certification
| CE, FCC, RoHS
|
Quality of Service
| WMM
|
Management
| SNMP
|
Advanced Functions
| Up to 30 meters PoE is supported
|
Protocol Support
| IPv4, IPv6
|
warranty | 1 Year |
TP-LINK TL-WA901N Wireless Access Point in Bangladesh
TL-WA901N 450Mbps Wireless N Access Point. 450Mbps wireless transmission rate brings smooth wireless N experience Supports multiple operating modes: Access Point, Range Extender, Multi-SSID and Client modes Easily setup a WPA-PSK/WPA2-PSK encrypted secure connection at a push of the WPS button Up to 30 meters (100 feet) of flexible deployment with included Power over Ethernet Injector
Wireless N Speed & Range
Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through three antennas with smart antenna technology to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!
Multiple Operating Modes Easy to Build WLAN
Supports Client, Multi-SSID, Range Extender, and AP operation modes to enable various wireless applications to give users a more dynamic and comprehensive experience when using your AP. Multiple operating modes also helps you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.
Passive PoE Supported More Flexible Deployment
The TL-WA901N is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.
