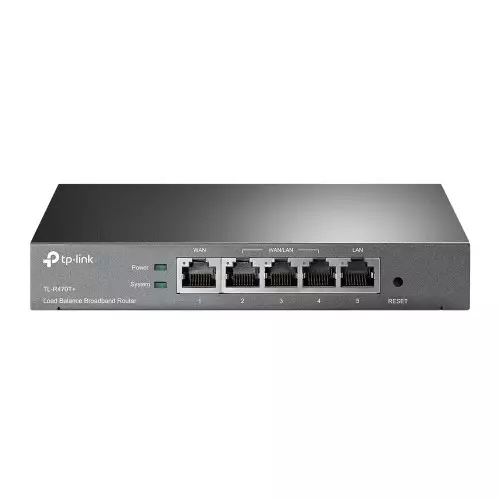

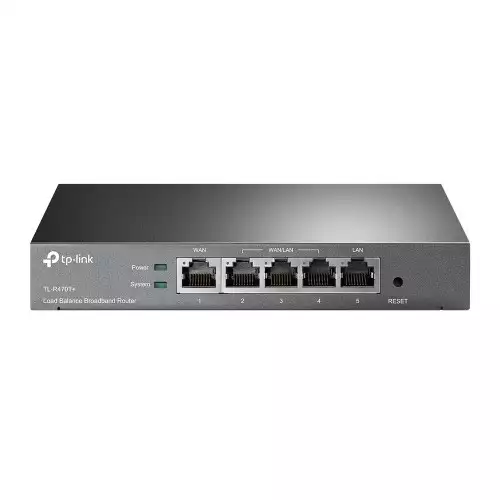

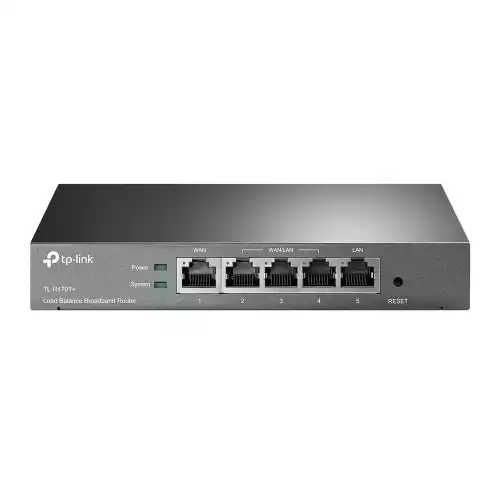

TP-Link TL-R470T+ 5 Port Multi-Wan Load Balance Router Specification |
HARDWARE FEATURES
| - Standards and Protocols: IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS
- Interface: 1 Fixed Ethernet WAN Port
1 Fixed Ethernet LAN Port
3 Changeable Ethernet WAN/LAN Ports - Network Media: 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m)
- Button: Reset Button
- Power Supply; Internal Universal Power Supply
AC100-240V~50/60Hz input - Flash: 4MB
- DRAM: 64MB
- LED: PWR, SYS, WAN, LAN, WAN/LAN
|
BASIC FUNCTIONS
| - WAN Connection Type: Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable
- DHCP: DHCP Server/Client, DHCP Address Reservation
- MAC Clone: Modify WAN/LAN MAC Address
- Switch Setting: Port Mirror, Rate Control, Port Configuration, Port VLAN
|
ADVANCED FUNCTIONS
| - ACL: IP/MAC/URL/WEB Filtering
- IGMP: IGMP Proxy/IGMP Snooping
- Forwarding: Virtual Server, Port Triggering, DMZ
- Load Balance: Policy Routing, Link Backup
- Routing: Static Routing
- Security:FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding
- Traffic Control: Bandwidth Control, Session Limit
|
| Others | - Dimensions ( W x D x H ): 8.2*5.0*1.0in. (209*126*26mm)
- Concurrent Session: 10000
- Service: PPPoE Server, E-Bulletin, Dynamic DNS, UPnP
|
Three Changeable WAN/LAN Ports
The TL-R470T+ features three changeable ports that can be set to either LAN or WAN, allowing the router to support up to four WAN ports to satisfy various Internet access requirements through one device. The router also has an integrated smart load balancing function which automatically selects the most efficient line according to load and bandwidth requirements, providing users with consistent network uptime and reliable Ethernet connectivity.
Abundant Security Features
For defense against external threats, TL-R470T+ can automatically detect and block Denial of services (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats. Moreover, this router provides IP/MAC/URL/WEB filtering functions, which forcefully prevent attacks from intruders and viruses. For applications such as FTP, H.323, SIP, IPsec, and PPTP which are not well compatible with NAT, TL-R470T+ offers administrators one-click enable of ALG choices corresponding to the above five applications.
Efficient Access Management
By setting a PPPoE Server to allocate PPPoE accounts to private network users, the router only allows users with legal accounts that have passed authentication to access the Internet. Cooperating with IP-based Bandwidth Control, it is capable of confining bandwidth usage of certain PPPoE accounts. Moreover, the E-Bulletin function is able to release a bulletin in the form of a webpage to certain user groups periodically, which notifies the users about the expiration date of the PPPoE account. With the above features, the router will prioritize different users in surfer jurisdictions for more efficient management.
