TP-LINK TL-FC311A-20 SPECIFICATION |
Standards and Protocols
| IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z
|
Operating Temperature
| 0˚C to 50˚C (32˚F to 122˚F)
|
Storage Temperature
| -40˚C to 70˚C (-40˚F to 158˚F)
|
Operating Humidity
| 10% to 90% RH non-condensing
|
Storage Humidity
| 5% to 90% RH non-condensing
|
Interface
| - • 1× Gigabit SC Fiber Port
- • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
|
Network Media
| - • Single-mode Fiber
- • UTP category 5, 5e cable (maximum 100m)
|
Power Supply

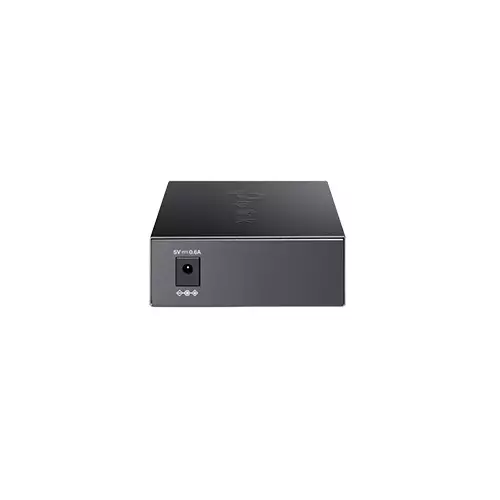

| External Power Adapter: 5 V/0.6 A
|
LED
| PWR, Link/Act
|
Dimensions ( W x D x H )
| 3.7 × 2.9 × 1.1 in(95 × 73 × 27 mm) |
Wave Length
| 1550 nm TX, 1310 nm RX
|
Fiber Type
| 9/125 μm single-mode fiber
|
Package Contents
| - • Media Converter TL-FC311A-20
- • Power Adapter
- • Installation Guide
|

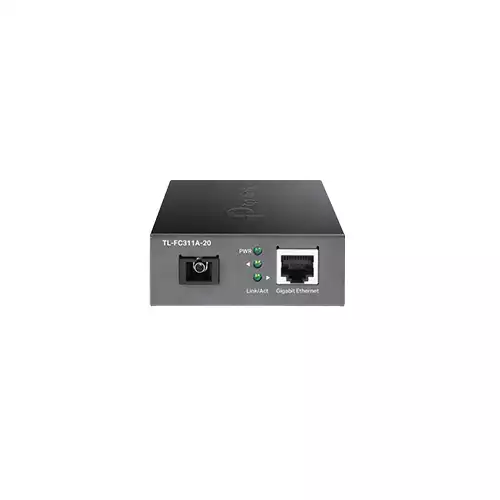

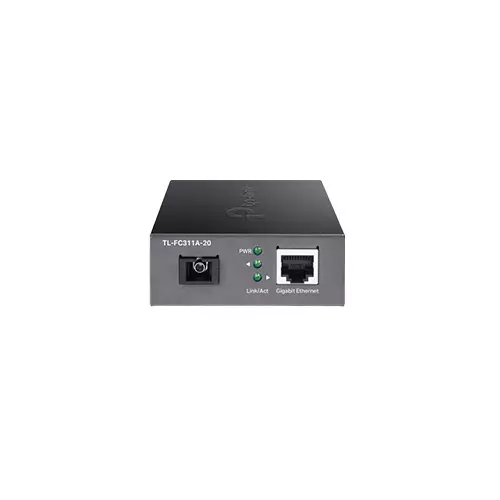

TP-LINK TL-FC311A-20 GIGABIT WDM MEDIA CONVERTER IN BANGLADESH
FEATURES
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20 km
What This Product Does

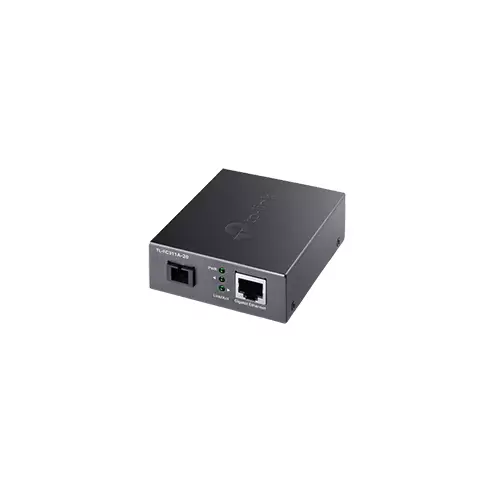

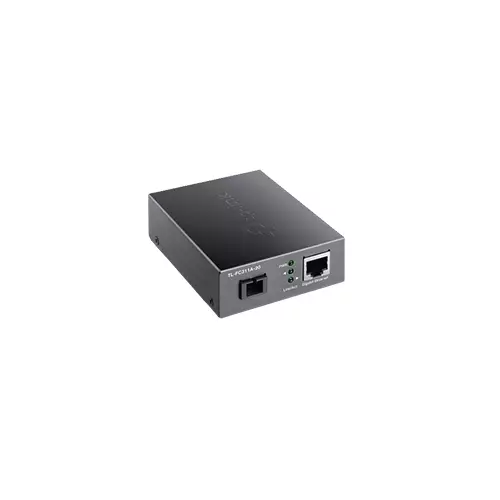

TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in the TX port in which duplex mode is automatically negotiated.
