TP-LINK TL-FC111A-20 SPECIFICATION |
Standards and Protocols
| IEEE802.3, IEEE802.3i, IEEE802.3u
|
Operating Temperature
| 0˚C to 50˚C (32˚F to 122˚F)
|
Storage Temperature
| -40˚C to 70˚C (-40˚F to 158˚F)
|
Operating Humidity
| 10% to 90% RH non-condensing
|
Storage Humidity
| 5% to 90% RH non-condensing
|
Interface
| - • 1× 100 Mbps SC Fiber Port
- • 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
|
Network Media
| 100BASE-Tx: 2-pair UTP/STP of Cat. 5 or above (≤100 m) |
Power Supply
| External Power Adapter: 5 V/0.6 A
|
LED
| PWR, Link/Act
|
Dimensions ( W x D x H )
| 94.5*73*27 mm |
Wave Length
| 1550 nm TX, 1310 nm RX
|
Standards and Protocols
| IEEE 802.3, IEEE 802.3i, IEEE802.3u
|
Basic Function
| - Auto-negotiation of half-duplex / full-duplex transfer mode
- Full-duplex flow control (IEEE 802.3x)
- Half-duplex flow control (Backpressure)
- Extends fiber distance up to 20km (12.4 miles)
|
Ports
| - 1x 100M single SC/UPC port
- 1x 10/100M RJ45 port (Auto MDI/MDIX)
|
WDM TX
| 1550 nm
|
WDM RX
| 1310 nm
|
Network Media 10BASE-T
| - UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
|
Network Media 100BASE-T
| - UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100Ω STP (maximum 100m)
|
Network Media 100BASE-FX
| Single-mode fiber
|
LED Indicators
| PWR, Link/Act
|
Dimensions (W*D*H)
| - 3.7 × 2.9 × 1.1 in.
- (95 × 73 × 27 mm)
|
Power Supply
| External Power Adapter: 5 V/0.6 A
|
Safety & Emission
| FCC, CE, RoHS
|
Fiber Type
| 9/125 μm single-mode fber (≤20 km)
|
Environment
| - Operating Temperature: 0℃~50℃ (32℉~122℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
|

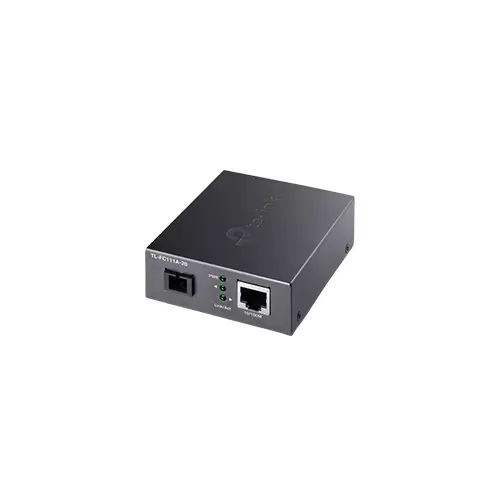

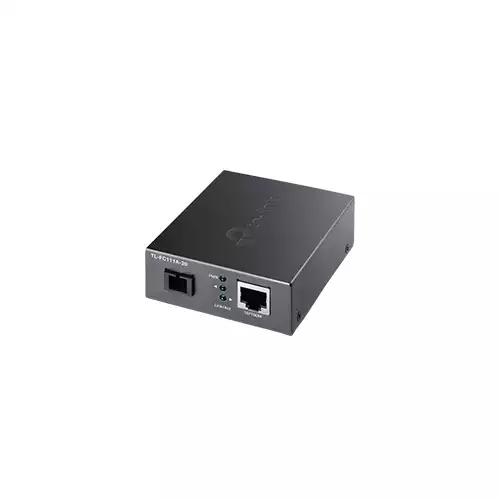

TP-LINK TL-FC111A-20 10/100 MBPS WDM MEDIA CONVERTER IN BANGLADESH
FEATURES
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- 9/125 μm SMF (Single-Mode Fiber)
- Bidirectional WDM communication on a single fiber
- Ranges up to 20km (12.4 miles)
- Work with TL-FC111B-20 as a pair
What This Product Does
TL-FC111A-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
TL-FC111A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works on the other end as a pair by receiving data at a wavelength of 1550nm and sending data at a wavelength of 1310nm.
