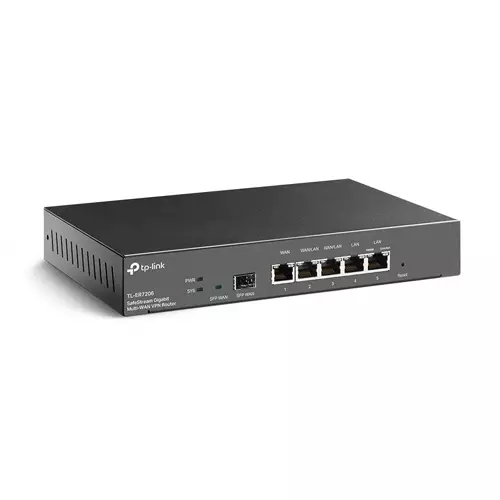

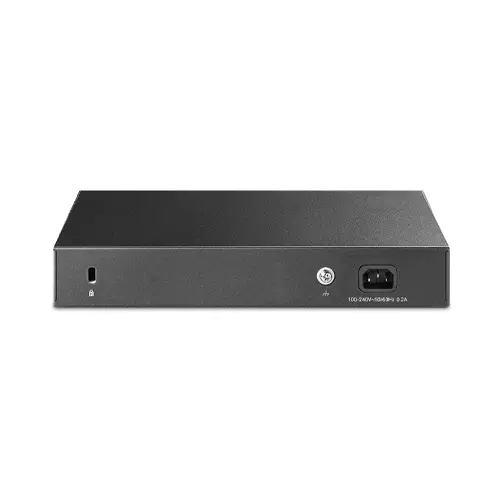

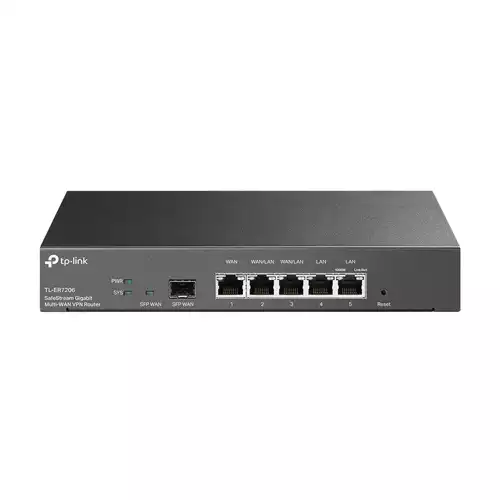

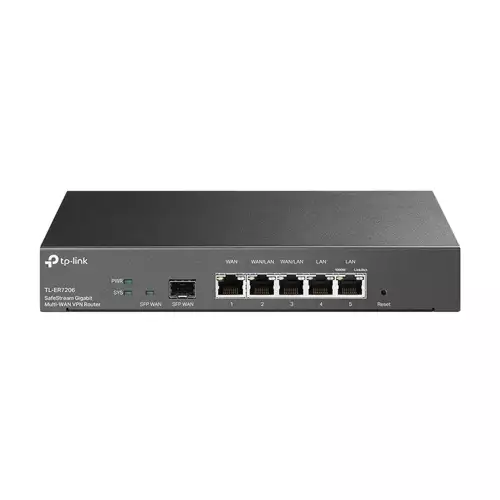

Tp-Link TL-ER7206 Multi-WAN VPN Router
Standards and Protocols
| IEEE 802.3, 802.3u, 802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP,
HTTP, DNS, IPsec, PPTP, L2TP
|
Interface
| 1 Fixed Gigabit SFP WAN Port
1 Fixed Gigabit RJ45 WAN Port
2 Fixed Gigabit RJ45 LAN Ports
2 Changeable Gigabit RJ45 WAN/LAN Ports
|
Network Media
| 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
|
Button
| Reset Button
|
Power Supply
| 100–240 V~50/60 Hz
|
Flash
| SPI 4MB + NAND 128MB
|
DRAM
| 512MB
|
LED
| PWR, SYS, SFP WAN, Speed, Link/Act
|
Dimensions
| 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
|
| Warranty | 2 years |
Tp-Link TL-ER7206 Multi-WAN VPN Router in BangladeshA Professional, Secure, and Reliable Gateway with Centralized Management Capability.SafeStream Gigabit Multi-WAN VPN Router
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
