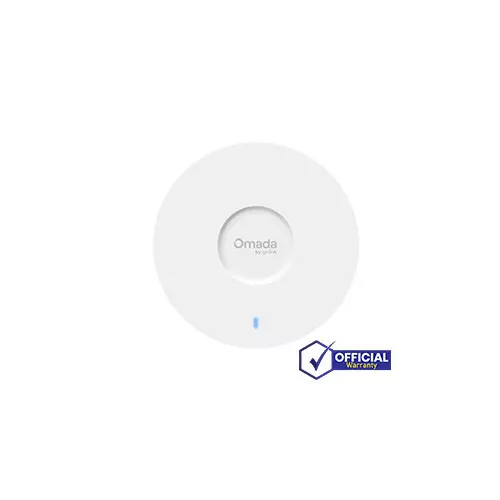

TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point
TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point
TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point - 1
TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point - 2
TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point - 3
TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point - 4

TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point

0 Reviews
Stock : Call For Price
PID : P0682606009
Brand : TP-Link
Model : EAP653 UR V2
Warranty : 2 Years
  • Dual-Band WiFi 6
  • 2,000 ft² Coverage
  • Fast Connectivity
  • 160MHz, MU-MIMO & OFDMA
Call For Price

SPECIFICATIONS

Networking & Connectivity

Transmit Power

 CE:

7-20 dBm(2.4 GHz, EIRP)

6-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP)

6-29 dBm(5 GHz, U-NII-2C, EIRP)


FCC:

4-26 dBm (2.4 GHz)

4-27 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3)
Number of Antennas

2.4 GHz: 2× 5 dBi

5 GHz: 3× 5 dBi
Data Rate

 5 GHz: Up to 2402 Mbps

2.4 GHz: Up to 574 Mbps
MU-MIMO Support

Yes
Network Standards

IEEE 802.11ax/ac/n/g/b/a
Frequency Range

2.4 GHz and 5 GHz
Wireless Security

 Captive Portal Authentication

 Access Control

Wireless Mac Address Filtering

 Wireless Isolation Between Clients

 SSID to VLAN Mapping

 Rogue AP Detection

 WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Battery And Power

DC Input Power

802.3at PoE

 12V DC / 1.5 A

48V Passive PoE


Note: DC Power adapter is not included.
Power

EU: 14.2 W

 US: 15.5 W

Ports

Port

1× Gigabit PoE+ Port

Others

Button

Reset
Other Features

Wireless Functions:

 1024-QAM

 4× Longer OFDM Symbol

 OFDMA

 Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

 Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

 QoS(WMM)

 MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)

 HE160 (160 MHz Bandwidth)‡

 Seamless Roaming(802.11k/v/r)△

 Omada Mesh△

 Band Steering

 Load Balance

 Airtime Fairness

 Beamforming

 Rate Limit

 Reboot Schedule

 Wireless Schedule

 Wireless Statistics based on SSID/AP/Client

Omada App: Yes

Centralized Management:

 Omada Central (Cloud-Based)

Omada Hardware Controller

 Omada Software Controller

Cloud Access: Yes. Require the use of an Omada controller.

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1, v2c, v3

System Logging Local/Remote Syslog: Yes

SSH: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

Zero-Touch Provisioning: Yes. Require the use of an Omada controller.

Certification: CE, FCC, RoHS, ISED

Physical Specification

Environment

 Operating Temperature: 0–40 ℃ (32–104 ℉)

 Storage Temperature: -40–70 ℃ (-40–158 ℉)

 Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
Package Contents

 EAP653 UR

 Mounting Kits

 Installation Guide
Dimension

6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

Warranty Information

Warranty

2 Years

DESCRIPTION

Tp-link Omada Eap653 Ur V2 WiFi 6 Ax3000 Ceiling Mount Access Point Price in Bd

The TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point is a powerful networking solution designed to deliver high-speed wireless performance for offices, educational institutions, hotels, retail stores, and large residential environments. Equipped with advanced WiFi 6 technology, this access point provides combined dual-band speeds of up to 2976 Mbps, including 574 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band. Its 4-stream dual-band architecture, 160MHz channel support, MU-MIMO, OFDMA, and 1024-QAM technologies ensure efficient data transmission and reliable connectivity for multiple devices simultaneously. The EAP653 UR V2 offers wireless coverage of up to 2,000 square feet (185 square meters), making it ideal for high-density network environments. Seamless integration with the Omada SDN platform enables centralized cloud management, remote monitoring, and simplified network administration. Its elegant ceiling-mount design blends perfectly into professional spaces while delivering consistent wireless coverage. Customers searching for the TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point price in BD can find genuine products, competitive pricing, and dependable customer support at Tech Land BD.

Why Buy Tp-link Omada Eap653 Ur V2 From Tech Land Bd?

The TP-Link Omada EAP653 UR V2 is an excellent choice for users seeking enterprise-grade wireless performance, broad coverage, and easy network management. Its WiFi 6 capabilities improve network efficiency, reduce latency, and support a larger number of connected devices. Whether you are upgrading an existing infrastructure or deploying a new wireless network, this access point offers outstanding value and long-term reliability. To get the best TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point price in BD, choose Tech Land BD for authentic products, professional assistance, warranty coverage, and a hassle-free purchasing experience.

FAQ

Q1: What is the maximum wireless speed of the TP-Link Omada EAP653 UR V2?

A: It delivers AX3000 dual-band speeds of up to 2976Mbps, including 574Mbps on 2.4GHz and 2402Mbps on 5GHz.



Q2: How much coverage does the EAP653 UR V2 provide?

A: The access point can cover up to 2,000 square feet (185 square meters), depending on the installation environment.



Q3: Does the EAP653 UR V2 support centralized cloud management?

A: Yes, it fully supports Omada SDN centralized cloud management for remote monitoring, configuration, and maintenance.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point Price in Bangladesh 2026 ?

The TP-Link EAP653 UR V2 Price in BD is 21,490৳ . This TP-Link Omada EAP653 UR V2 WiFi 6 AX3000 Ceiling Mount Access Point Manufacturing by TP-Link Comes With 2 Years Warranty & Based on 0 reviews. Tech Land BD Offers you TP-Link EAP653 UR V2 by 21,490৳ and its regular price is 25,000৳ Which is also Call For Price Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
