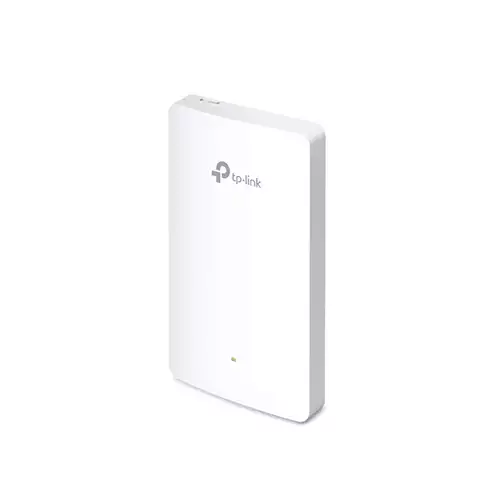

TP-LINK EAP225-Wall Omada Wireless Wall-Plate Access Point
EMI Start From*
TP-LINK EAP225-Wall Wireless Access Point Overview
Interface | 2 × 10/100Mbps Ethernet Port |
Physical Security Lock | Yes |
Button | Reset |
Power Supply | 802.3af or 802.3at PoE |
Power Consumption | 9 watts or |
Dimensions | 5.6 × 3.4 × 0.8 in. |
Antenna | 2 Dual-Band Antennas |
Mounting | Wall Plate Mounting |
Wireless Standards | IEEE 802.11n/g/b/ac |
Frequency | 2.4GHz and 5GHz |
Signal Rate | 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps |
Wireless Functions | 16 SSIDs Automatic Channel Assignment Transmit Power Control |
Wireless Security | Access Control SSID to VLAN Mapping 802.1X Support |
Transmission Power | 21dBm max. (2.4 GHz) 21 dBm max. (5 GHz) |
Omada Cloud Access | Yes |
Omada App | Yes |
Omada Cloud Controller | Yes |
Centralized Management | Omada Hardware Controller Omada Hardware Controller Omada Software Controller |
Controller Software | Yes |
Warranty | 1 Year |
TP-LINK EAP225-Wall Wireless Access Point in Bangladesh
AC1200 wireless with 100Mbps Ethernet backhaul. Designed for office cubical and hotel room wired and wireless connections. Easy-mount construction allows installation into a 1-gang electric wall-box. Compact, low-profile design fits discreetly with any existing interior style. Cloud management and Omada App are supported for ultra convenience and easy management. Power over Ethernet (802.3af/802.3at) support makes deployment effortless and flexible. Enterprise-class Wi-Fi security helps to decrease network security threats. Supports management VLAN for enhanced network management.
Complete In-Room Wi-Fi Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Effortless Deployment and Scalability
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

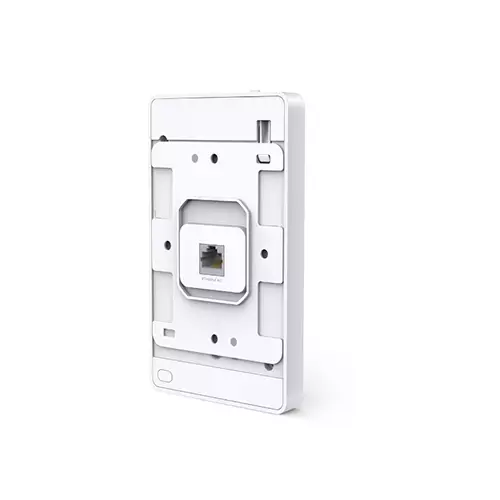

Installation Made Easy
Upgrade Ethernet wall jacks to high-performance Wi-Fi access points. The EAPs can be fitted to existing EU or US wall junction boxes, making installation quick and non-disruptive

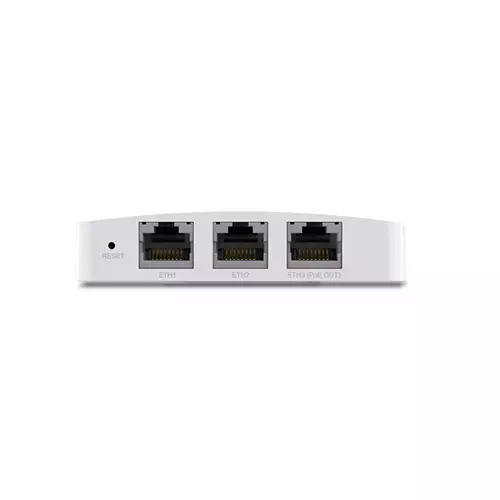

Three Ethernet Jacks, One PoE Outlet
More than just a wireless access point, EAP225-Wall acts as a switch and provides three standard Ethernet jacks together with a Power over Ethernet outlet, capable of powering wired devices such as IP phones, IP cameras, intercoms, and more
Blends Into Your Wall
The EAP225-Wall wireless access point blends into any business setting with a refined, minimalist appearance.
Gigabit Wi-Fi Speeds with MU-MIMO Technology
EAP225-Wall delivers combined dual-band speeds of up to 1200Mbps. Armed with the latest 802.11ac Wave 2 MU-MIMO technology, it can exchange data with multiple clients at the same time to allow more devices to connect without any slowdown to the network.
