TP-Link CPE610 CPE Router Specification
|
| General | - Antenna: 2×2 MIMO antenna
- Button: 1 Reset Button
- Frequency: 5.15~5.85GHz
- Network Standard: IEEE 802.11a/n
- Efficiency: >84.29
- Color: White
- Dimension:
- CPE: 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
- POE ADAPTER: 85.8×43.9×29.7 mm
|
Data Rate
| - Up to 300Mbps (40MHz,Dynamic)
- Up to 144.4Mbps (20MHz,Dynamic)
- Up to 72.2Mbps (10MHz,Dynamic)
- Up to 36.1Mbps (5MHz, Dynamic)
|
Wireless
| - Pharos MAXtream TDMA Technology
- Selectable Channel Width: 5/10/20/40MHz
- Auto Channel Selection
- Transmit Power Control
- Dynamic Frequency Selection(DFS)
- WDS Enable/Disable
- Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
- 64/128/152-bit WEP Encryption
- SSID Broadcast Enable/Disable
- Multi-SSID with VLAN Tagging(AP Mode only)
- Distance/ACK Timeout Setting
- Wireless MAC Address Filter
- Wireless Advanced:
- Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
|
Interface
| - CPE610:
- 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button - POE ADAPTER:
1 AC Jack with Earth Ground
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
|
Encryption
| - Security:
- WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption - Security: SPI Firewall/ Ping Forbidden/DoS Protection
|
Ports
| - CPE610:
- 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
- POE ADAPTER:
1 10/100Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps Shielded Ethernet Port (Data)
|
Power Mode
| - Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
- Voltage range:
16-27VDC 100-240VAC, 50/60Hz
|
TP-Link CPE610 CPE Router Comes with 01 Years Warranty
|
TP-Link CPE610 CPE Router in Bangladesh

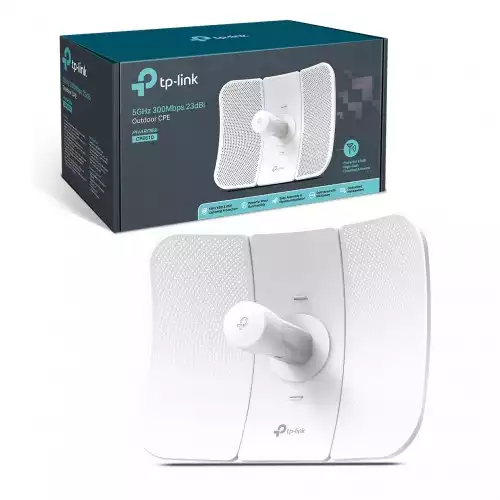

The TP-Link CPE610 5GHz 300Mbps 23dBi Outdoor CPE Router has a 23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission. With 23dBi high-gain directional 2×2 MIMO Cassegrain antenna and dedicated metal reflector, the CPE610 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps 23dBi Outdoor CPE610 an ideal choice and cost-effective solution for outdoor wireless networking applications. CPE610 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
