R&M CAT6 U/UTP FRPVC SPECIFICATION |
Standard
| ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
|
Color
| |
Conductor
| Bare solid copper
|
Insulation
| HDPE, overall Ø 0.92±0.02 mm
|
Twisting
| 2 wires to the pair
|
Cable Lay-Up
| 4 pairs to the core with cross separator
|
Sheath
| PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal
|
Application
| Primary (Campus), Secondary (Riser), Tertiary (Horizontal) IEEE 802.3an: 10Base-T; 100Base-TX; 1000Base-T IEEE 802.5 16 MB; ISDN; TPDDI; ATM
|
Standards
| ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1
|
Fire Rating
| Flame retardant- PVC
|
Cable Designation
| U/UTP Cat.6 250MHz
|
Packaging
| Drum 305 m
|
Outer Diameter
| 5.8±0.3mm
|
Pulling Pressure
| 11Kg nominal
|
Segregation Class
| B |
Tensile Strength
| 16.5N/mm²
|
Weight
| 13.0kg nominal
|

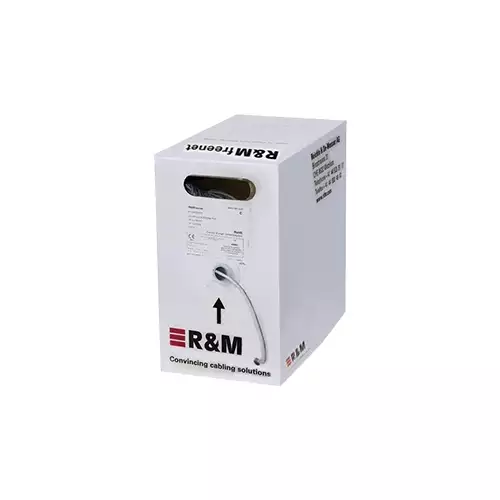

R&M CAT6 U/UTP FRPVC CABLE BOX (YELLOW/BLUE/GREY) in Bangladesh
R&M Cat 6 U/UTP Cable Box comes with Bare solid copper Conductor, HDPE, overall Ø 0.92±0.02 mm, 2 wires to the pair Twisting, 4 pairs to the core with cross separator Cable lay up, PVC, gray RAL 7035, Sheath Thickness: 0.50mm nominal. It is ISO/IEC 11801 2nd ed.; EN 50173-1; ANSI/TIA-568-C.2 IEC 61156-5 2nd ed.; IEC 61156-7; EN 50288-6-1 Standard. This Cable Box also featured with U/UTP Cat.6 250MHz Cable designation, 5.8±0.3mm Outer diameter, 13.0kg nominal/305m Weight, 11Kg nominal Pulling Pressure, B Segregation class with > 16.5N/mm² Tensile Strength. It also comes with ≥ 25 mm during operation (without load), ≥ 50 mm during installation (with load) Bending radius with During operation -20°C…+ 60°C, During installation 0°C…+ 50°C. This Cable Box also features with different kinds of Electrical Properties (at 20°C ± 5°C), these are ≤ 9.38 Ω / 100 m Conductor resistance, ≤ 2 % Resistance unbalance, 1000 V; DC, 1 min, core/core Test voltage, ≥ 5000 MΩ km; 500 V Insulation resistance, 44 pF / m max Capacitance, ≤ 1500 pF/km Capacitance unbalances, 100 ± 15 Ω; impedance @ 100 MHz Mean characteristics, Approx. 69 % Nominal velocity of propagation, ≤ 536 ns / 100 m; At 1 MHz Propagation delay, ≤ 45 ns / 100 m Delay skew, ≥ 40 dB Coupling attenuation.
