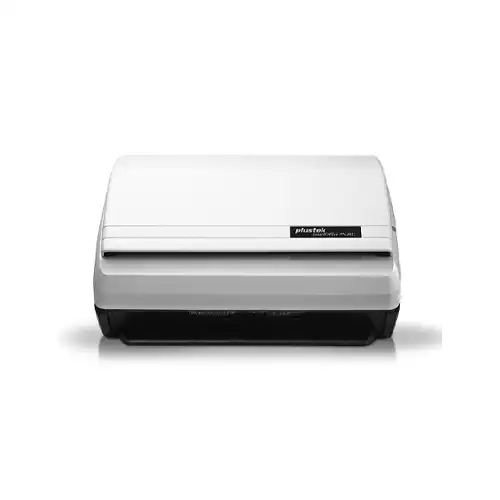

Plustek SmartOffice PN30U Scanner Overview
Image Sensor
| CIS x 2
|
Light Source
| LED
|
Optical Resolution
| 600 dpi
|
Hardware Resolution
| 600 x 600 dpi
|
Scan Modes
| Color: Input 48-bit, Output 24-bit
Grayscale: Input 16-bit, Output 8-bit
Black & White: 1-bit
|
ADF Capacity
| 50 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs), Max. thickness under 5mm (0.2").
20 sheets (Business Cards).
Plastic Card, Max. thickness under 1.2 mm.
|
Scanning Speed ( ADF )
| 30 ppm/ 60 ipm (Color mode, 200 & 300 dpi, A4 Portrait)
|
Scanning Area (W x L)
| Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”)
|
Acceptable Paper Sizes (W x L)
| Max: 220 x 5080 mm (8.66” x 200”)
Min: 63.5 x 50.8 mm (2.5” x 2”)
|
Acceptable Paper Weight (Thickness)
| 50 to 105 g/㎡ (14 to 28 Lbs)
|
Multi-feed Detection
| With ultrasonic technology
|
Daily Duty Scan ( Sheets )
| 4,000
|
Roller Lifetime (Scans)
| 300,000
|
Pad Lifetime (Scans)
| 50,000
|
Action Button
| 3 Buttons: Up, Down, Scan.
9 Function Keys. All Customizable.
|
Power Supply
| 24 Vdc/ 0.75 A
|
Interface
| USB 2.0
RJ45 LAN (only support Windows)
|
Net Weight
| 1.66 Kgs (3.66 Lbs)
|
Dimensions
| 263 x 128 x 148 mm (10.36" x 5.02" x 5.83")
|
| Warranty | 1 years |
Plustek SmartOffice PN30U Scanner price in Bangladesh
The Plustek SmartOffice PN30U scanner is an easy to use network based scanning solution for sharing documents in today's multi-location and global environment. It delivers speed, image quality, and great paper handling, along with easy integration and compatibility with document imaging applications. Designed to perform in today's demanding working environments, it effortlessly handles mission-critical or routine daily scanning tasks, thanks to scanning speeds up to 30ppm in color (200 & 300dpi).
Scan to any PC on your network
The SmartOffice PN30U is perfect for small and medium sized offices that have the need to scan documents, but do not have the daily scan volume to justify a dedicated scanner for each employee. All PC users in the office can share using the SmartOffice PN30U
Ultrasonic Multi-Feed Detection
With the ultrasonic multifeed detection capability, the scanner allows you to set overlapped paper by detecting paper thickness between documents. The ultrasonic function can be turned off when scanning document with labels, sticky notes, or taped receipts. This innovative design prevents double feeding and effectively scans documents of different weights or thickness.
Advanced One-Button Scanning
With Plustek's DocAction exclusive software application, users only need to properly place the document on the scanner, the press the"Scan" button. Auto Deskew, Auto Crop, Auto Size for Page Detection, Gamma, Contrast, Brightness, Color Dropout (RGB), Image Edge Fill, Preview, Page Size, Scan Mode, Multi-image Output, Job Function, Merge Page/Split Page, Card Scanning Mode, Outputs scanned documents in a variety of formats such as PDF, PDF/A, JPEG and TIFF formats. It can also recognize text using OCR and create multi-page pdfs with automatic document feeders. With the wired networking capability, the PN30U offers network scanning to e-mails, a shared folder and a FTP server.
