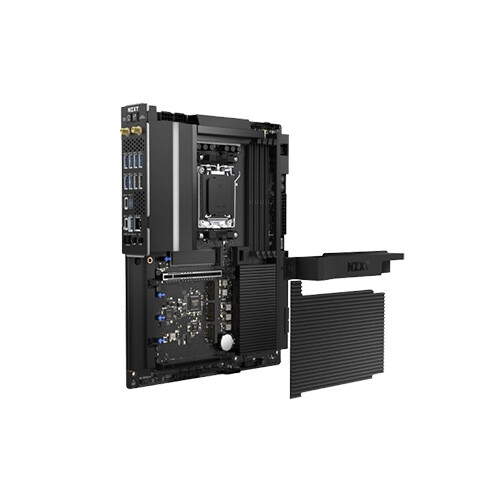

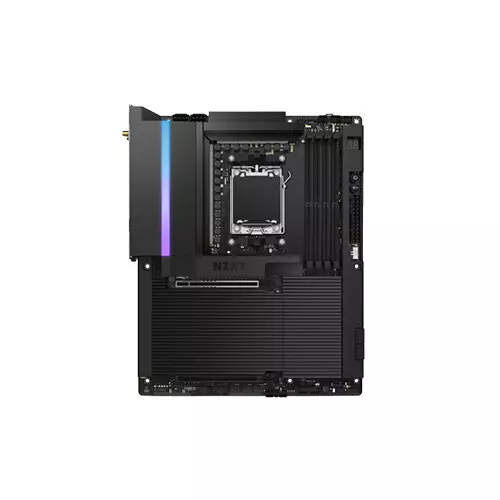

NZXT N9 X870E Wi-Fi 7 AMD DDR5 ATX Motherboard
- Chipset - AMD X870E
- Form Factor - ATX
- Bluetooth - BT 5.4
- Wireless - Tri-Band WiFi 7
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
AMD® Socket AM5 Ryzen Processors
7000, 8000, and 9000* Series
AMD X870E
Memory
DIMM Type DDR5 288-pin
Max Memory Capacity 192 GB
Memory Architecture Dual Channel
Storage
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for NVMe storage devices
M.2 Type 2242/2260/2280 Slots
(M-Key) 4
M.2 Slots
M2_1
Blazing M.2 Socket, PCIe 5.0 (supports x4 mode) @ 128 Gb/s via CPU
Supports 2280 form factor
M2_2, M2_3, M2_4
Hyper M.2 Socket, PCIe 4.0 (supports x4 mode) @ 64 Gb/s via Chipset
Supports 2280 form factor
Graphics
Graphics Controller AMD RDNA Graphics
(Requires a supported AMD Ryzen CPU with embedded graphics)
Integrated Graphics Output
2 x USB4, Supports HDCP 2.3
Networking & Connectivity
Realtek RTL8126CG
5 Gigabit LAN 10/100/1000/2500/5000 MB/s
Tri-Band WiFi 7
MediaTek MT7925B232M Wi-Fi 7
Supports IEEE 802.11 a/b/g/n/ac/ax/axe/be
Supports 2.4 GHz / 5 GHz / 6 GHz* frequency band
Supports 160 MHz channel bandwidth with 6 GHz* frequency band
1 antenna to support 2 (transmit) x 2 (receive) diversity technology
Supports Bluetooth
Supports MU-MIMO
Bluetooth 5.4
Audio & Microphone
Realtek ALC4080
Ports
4
PCIe Slots
PCIEX16_1
PCIe 5.0 x16 (supports x16 mode) via CPU
PCIEX16_2
PCIe 3.0 x 16 (supports x2 mode) via Chipset
M.2 (M-Key) Slot 4
M.2 (E-Key) Slot 1
For included wireless card
SATA 6Gbps Port 4
USB 3.2 Gen 2 Header (for Type-C) 1
USB 3.2 Gen 1 Header (for Type-A) 2 (Up to 2 ports per header)
USB 2.0 Header 2 (Up to 2 ports per header)
Front Panel Audio 1
4-pin PWM Fan Header
1 x CPU_FAN
1 x AIO_PUMP
3 x SYS_FAN
NZXT RGB + PWM Header (8-pin) 2
NZXT RGB Header (4-pin) 1
Supports up to 5 NZXT
RGB devices, 40 LEDs total per header.
5V ARGB Header 2
Supports up to 40 LEDs per header
ATX Power Header
1 x 24-pin ATX Power
2 x 8-pin ATX 12V Power
Additional Features
1 x Power Button
1 x Reset Button
1 x Digital Debug LED
1 x POST LEDs
USB 4 (Type C) (40 Gb/s)
USB 3.2 Gen 2 (Type-A) 5
USB 3.2 Gen 1 (Type-A) 3
USB 2.0 (Type-A) 2
Wireless Antenna 2 (2T2R)
LAN (RJ45) 1
Audio Jacks
1 x Line Out
1 x Microphone
1 x Optical SPDIF Out
Additional Features
1 x BIOS Flashback Button
1 x Clear CMOS Button
Software
Windows 10 64-bit or newer
Warranty Information
3 years
DESCRIPTION
NZXT N9 X870E Wi-Fi 7 AMD DDR5 ATX Motherboard in Bangladesh
NZXT N9 X870E Wi-Fi 7 AMD DDR5 ATX Motherboard delivers premium performance for high-end PC builds. It supports AMD Socket AM5 Ryzen 7000, 8000, and 9000 series processors. The AMD X870E chipset ensures powerful and stable operation. It includes DDR5 memory support with up to 192GB capacity. Dual-channel architecture improves speed and multitasking performance. The board offers four M.2 slots for high-speed storage expansion. One PCIe 5.0 slot delivers ultra-fast data transfer speeds. Other M.2 slots use PCIe 4.0 for reliable performance. RAID support ensures data protection and flexible storage options. The motherboard includes PCIe 5.0 x16 for modern GPUs. It also has additional PCIe slots for expansion needs. Networking features include 5 Gigabit LAN for fast wired connections. It supports tri-band Wi-Fi 7 for next-generation wireless performance. Bluetooth 5.4 ensures smooth connectivity with devices. The Realtek ALC4080 codec provides clear and immersive audio output. USB4 Type-C ports offer high-speed data transfer and display support. Multiple USB ports allow easy connection of peripherals. Internal headers support RGB lighting and cooling systems. NZXT RGB and ARGB headers enhance system aesthetics. Cooling support includes CPU fan, AIO pump, and system fan headers. The board includes debug LED and POST indicators for troubleshooting. BIOS Flashback and Clear CMOS buttons simplify system management. It supports Windows 10 and newer operating systems. This motherboard suits gamers, streamers, and creators. It offers strong performance, fast connectivity, and modern features. Its design ensures clean cable management and airflow. Overall, it provides excellent value for high-performance builds in Bangladesh.
Buy NZXT N9 X870E Wi-Fi 7 AMD DDR5 ATX Motherboard in Bangladesh from Tech Land BD
Tech Land BD offers genuine NZXT Motherboards at the best price in Bangladesh. They provide official warranty and trusted after-sales support. Their team helps customers choose the right components easily. They ensure fast delivery across Bangladesh. Customers enjoy secure payment options and reliable service. Tech Land BD has strong reputation for authentic products. Many gamers trust them for premium hardware. They often provide special deals and discounts. You can rely on Tech Land BD for a smooth shopping experience.
FAQ:
1. Which processors does NZXT N9 X870E support?
It supports AMD Ryzen 7000, 8000, and 9000 series processors.
2. Does this motherboard support Wi-Fi 7?
Yes, it features tri-band Wi-Fi 7 for faster wireless connectivity.
3. How many M.2 slots are available?
It includes four M.2 slots with PCIe 5.0 and PCIe 4.0 support.
