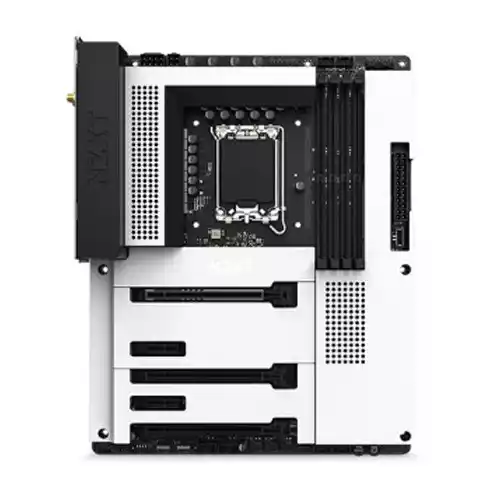

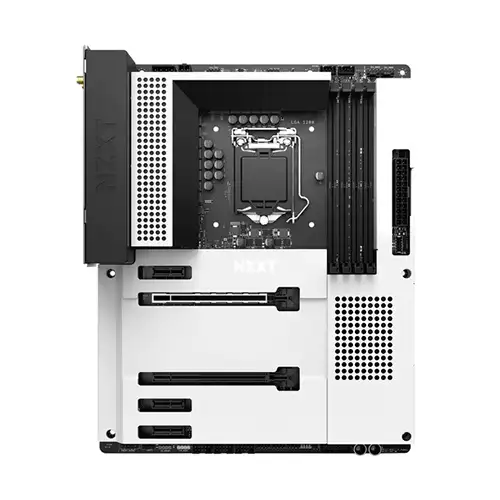

NZXT N7 Z590 LGA 1200 10th and 11th Gen WiFi ATX Motherboard (White)
- Intel Z590 Chipset
- LGA1200 Socket
- 4 x Dual-Channel DDR4 RAM slots
- Wi-Fi 6E (802.11ax) | Bluetooth 5.2
SPECIFICATIONS
Processor
Intel Core Processors. Please refer to the CPU support list.
Turbo Boost Max 3.0 Technology: Supported
Mainboard
Memory
Memory Support: DDR4 2133, 2400, 2666, 2800, 2933, 3200, 4400, 4600 MHz
Maximum Capacity: 128 GB
Channel Architecture: Dual Channel
ECC Support: Non-ECC Unbuffered
Storage
M.2: 1 x 2242, 2260, 2280 (PCIe 3.0 x4, SATA (Unspecified))
U.2 None
Optane Memory Support: Yes
RAID Support:RAID 0, 1, 5, 10
Graphics
HDMI 2.0 / HDMI 1.4b
HDMI Max Resolution: 4096x2160@60Hz
Networking & Connectivity
Protocol: 802.11 a/b/g/n/ac/ax
Frequency Bands: 2.4 / 5 / 6 GHz
MU-MIMO Support: Supported
Bluetooth: V5.2
Audio & Microphone
channel: 8-Channel High Definition Audio
Playback: 32-bit / 192kHz DAC
Capacitors: Nichicon Fine Gold Series
Ports
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)
3 x USB 2.0 Header (Supports 6 USB Type-A Port)
Multi-GPU Support 2-Way AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
5 x 4-Pin System
Liquid Cooling 1 x 4-Pin Pump
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
LED Header 2 x RGB
Diagnostics Power, Reset
3 x USB 3.1 / USB 3.2 Gen 2 Type-A
4 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Display 1 x HDMI 2.0
Audio: 1 x 3.5 mm
1 x S/PDIF
Ethernet / Controller: 1 x Realtek RTL8125BG 2.5 Gigabit
Wi-Fi Antenna: 2 x Connector
Buttons: Clear CMOS
Physical Specification
Warranty Information
DESCRIPTION
Features:
- The N7 Z590 uses a 12+2 DrMOS power phase design to balance electrical current and deliver efficient power to your installed components.
- Fan and RGB lighting can be adjusted with the included NZXT CAM software, allowing you to fine-tune your fans in performance and style.

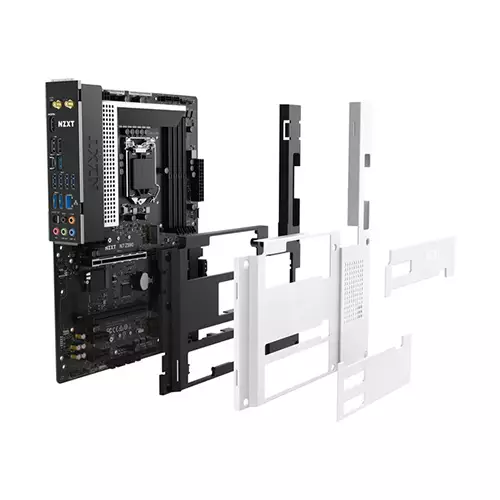

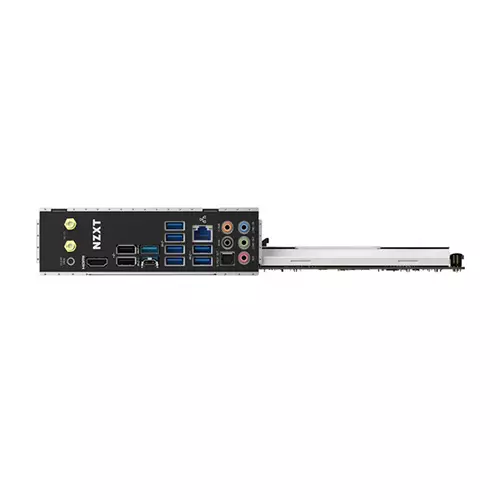

- Integrated I/O shield provides an efficient layout for connectors and makes installation quick and easy.
- Intel Optane Memory support allows you to use optional Intel M.2 drives to boost the performance of hard-disk campaigns within your system, giving you SSD-like performance.
- Multi-GPU support with AMD CrossFireX allows you to equip your rig with two graphics cards to enhance visual fidelity.
- The N7 Z590 supports memory overclocking up to 4266 MHz and Intel XMP 2.0, ensuring you get the most out of your memory.
- Immerse yourself deep into your media with 8-channel high-definition audio, delivering clean sound whether you are playing games or enjoying streaming media
NZXT N7 Z590 ATX Motherboard in Bangladesh
Embrace style and functionality with the N7 Z590 LGA1200 ATX Motherboard from NZXT. Sporting the sleek and traditional NZXT design, the N7 Z590 motherboard provides you with ample connectivity and high-quality performance suitable for gamers.
NZXT N7 Z590 ATX Motherboard Built on the Z590 chipset, you can access an LGA1200 socket, four dual-channel DDR4 RAM slots, six SATA III ports, and two M.2 interfaces. Equip your rig with an array of graphics and utility cards with one PCIe 4.0 x16, one PCIe 3.0 x16 (in x4 mode), and three PCIe 3.0 x1 slots. Connect various resource-demanding peripherals such as cameras and external drives with USB 3.2 Gen 1 and Gen 2 Type-A ports. A single USB 3.2 Gen 2x2 port offers up to 20 Gb/s data transfer speeds, suitable for workstation hubs, audio interfaces, and more high-powered devices. You can use Bluetooth 5.2 technology to leverage wireless devices such as controllers and speakers. Wi-Fi 6E (802.11ax) technology enables you to connect to your wireless network easily or use the RJ45 LAN port if you prefer a hard-wired connection.
