| Stock Status | Discontinue |
| Product ID | 10266 |
| Brand | |
| Product model | X470 GAMING PLUS MAX |
| Warranty | 3 years |
| Total Reviews | Based on 0 reviews. - Write a review |
| Processor | |
| Supported CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 |
| Mainboard | |
| Chipset | AMD X470 Chipset |
| Memory | |
| Memory | 4 DIMMs, Dual Channel DDR4-3866+(OC) |
| Storage | |
| Supported Storage | 2 x M.2 slots, 6 x SATA 6Gb/s |
| Graphics | |
| Graphics | 2 x PCI-E 3.0 x16 slots + 1 x PCI-E 2.0 x16 slot Supports 3-way CrossFire |
| Audio & Microphone | |
| Audio | 8-Channel(7.1) HD Audio with Audio Boost |
| Networking & Connectivity | |
| LAN | Realtek 8111H Gigabit LAN |
| Ports | |
| Slots | 3 x PCI-E x1 slots |

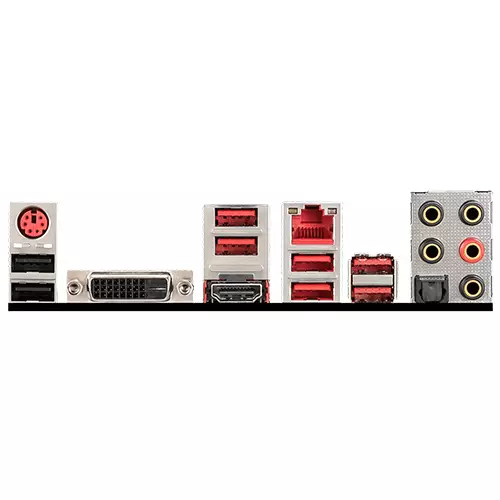

| External I/O Ports | 1. PS/2 Combo Port 2. USB 3.2 Gen1 3. LAN Port 4. HD Audio Connectors 5. USB 2.0 Ports 6. DVI-D Port 7. HDMI Port 8. USB 3.2 Gen1 9. USB 3.2 Gen2 10. Optical S/PDIF OUT |
| USB | 2 x USB 3.2(Gen2) + 8 x USB 3.2(Gen1) + 6 x USB 2.0 |
| Warranty Information | |
| Warranty | 03 Years |
| Specifications : |
●︎ Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4 ●︎ Supports DDR4 Memory, up to 4133(OC) MHz ●︎ Lightning Fast Game experience: TURBO M.2, AMD StoreMI Technology, AMD Turbo USB 3.2 Gen2 ●︎ Core Boost: With premium layout and optimized power design to support more cores and provide better performance. ●︎ Mystic Light and Mystic Light Sync: 7 colors / 7 effects in one click. Synchronize other RGB solutions for customization. ●︎ Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience ●︎ MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 3-Way AMD Crossfire. |
| **03 Year Warranty |
MSI RGB AMD MOTHERBOARD

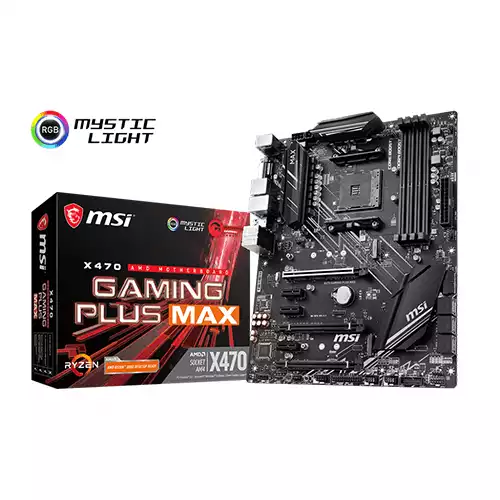

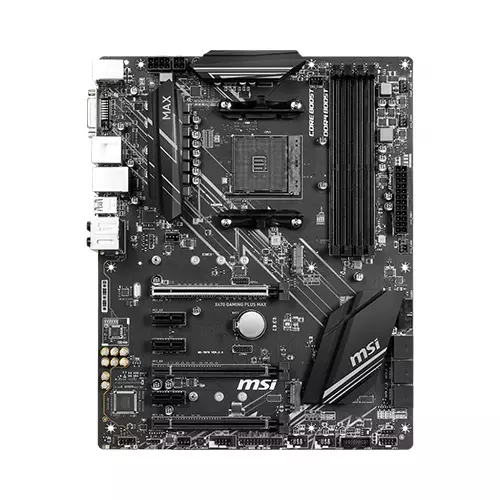

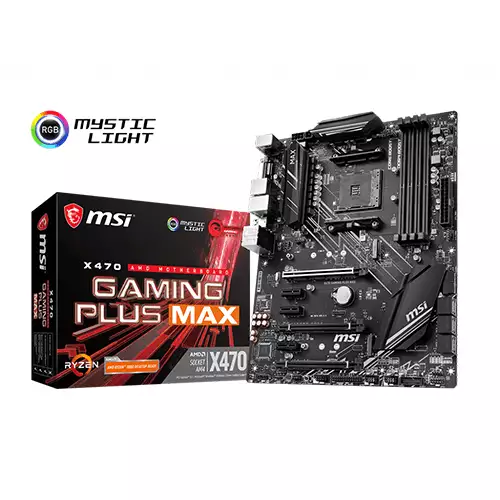

The X470 Gaming Plus MAX AM4 ATX Motherboard from MSI is built on the AMD X470 chipset, supporting AMD Ryzen series and A-Series/Athlon processors with an AM4 socket. It has four DDR4 slots that can hold up to 64GB of dual-channel RAM at speeds of up to 3466 MHz and above when overclocked. For storage, there are six SATA III ports and two M.2 slots that can operate at speeds of up to 32 Gb/s when used with a compatible NVMe drive. While this motherboard does have DVI-D and HDMI ports for onboard graphics, it's also equipped with two PCIe 3.0 x16 slots for dedicated GPUs as well as one PCIe 2.0 x16 and three PCIe 2.0 x1 slots for additional PCIe-based hardware. Other notable features include Realtek ALC892 7.1-channel HD audio, Realtek 8111H Gigabit LAN, and MSI Mystic Light RGB lighting.
