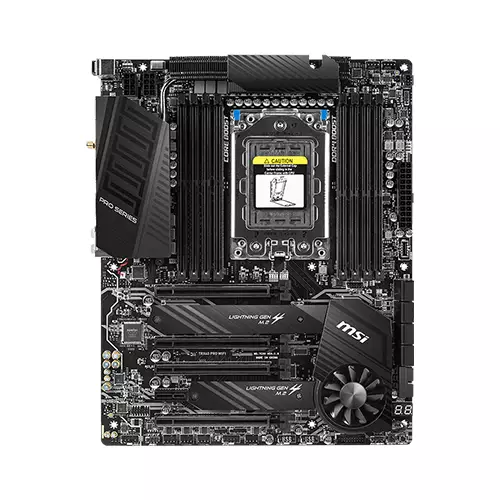

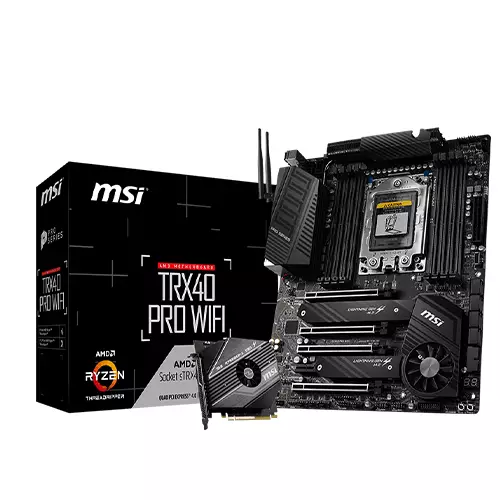

MSI TRX40 Pro Wifi sTRX4 Atx Amd Motherboard
MSI TRX40 Pro Wifi sTRX4 Atx Amd Motherboard
MSI TRX40 Pro Wifi sTRX4 Atx Amd Motherboard - 1
MSI TRX40 Pro Wifi sTRX4 Atx Amd Motherboard - 2

MSI TRX40 Pro Wifi sTRX4 Atx Amd Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061591
SKU : TRX40KJHFK
Brand : MSI
Model : Msi Trx40 Pro Wifi
Warranty : 3 Years
  • Chipset: AMD TRX40 Chipset
  • Memory: DDR4-4666MHz (OC)
  • LAN: 2 x Intel I211AT Gigabit LAN
  • Audio: Realtek ALC1220 Codec

SPECIFICATIONS

Processor

Supported CPU Supports 3rd Gen AMD®
Ryzen™ Threadripper™ Desktop
Processors for Socket sTRX4

Mainboard

Chipset AMD TRX40 Chipset

Memory

Memory 8 DIMMs, Quad Channel, DDR4-4666MHz (OC)

Storage

Supported Storage AMD® TRX40 Chipset
8 x SATA 6Gb/s ports
AMD® Processor
2 x M.2 slots (Key M)
M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices

Networking & Connectivity

LAN 2 x Intel I211AT Gigabit LAN

Audio & Microphone

Audio Realtek® ALC1220 Codec

Ports

Slots 4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)
1 x PCIe 3.0 x1 slot
Internal I/O Ports 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
8x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen2 Type-C port
2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin Water Pump Fan connector (supports up to 2A)
4x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin 5050 RGB LED connector
2x 3-pin ARGB LED connectors
1x 3-pin CORSAIR LED connector
1x Slow mode booting jumper
1x Power button
1x Reset button
External I/O Ports Clear CMOS Button
Wireless / Bluetooth
Gigabit LAN
Gigabit LAN
Audio Connectors
Flash BIOS Button
USB 3.2 Gen1 Type-A
USB 3.2 Gen2 Type-A
USB 3.2 Gen2x2 20G Type-C
Optical S/PDIF out
USB AMD® TRX40 Chipset
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
6 x USB 3.2 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
4 x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors
AMD® Processor
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
ASMedia® ASM3242 Chipset
1 x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

Physical Specification

Form Factor ATX

Warranty Information

Warranty 03 Years

DESCRIPTION

MSI TRX40 Pro Wifi Motherboard

Features :
  • Supports 3rd Gen AMD RyzenTM ThreadripperTM Desktop Processors for Socket sTRX4
  • Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency 4666(OC) MHz
  • Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
  • Set Core Power Free: Extended Heatsink Design, stacked fin array, Core Boost, Digital PWM IC, 12+3 digital power phases, dual 8 pin CPU power connectors, DDR4 Boost
  • Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
  • Twin Lightning Gen4 M.2: Running at PCI-E Gen4 x4 maximizes performance for NVMe based SSDs.
  • M.2 XPANDER-Z GEN4: Offers two extra M.2 slots to increase your storage capacity at maximum speed.
  • Dual LAN onboard and latest Wi-Fi 6 solution:  Premium network solution for professional and multimedia use, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering a secure, stable, and fast network connection.
  • Audio Boost 4: Reward your ears with studio-grade sound quality.
  • Multi-GPU: With Steel armor PCI-E slots. Supports 3-Way SLI / Crossfire
**03 Years Warranty.

ENHANCED PERFORMANCE

MSI motherboards featured all the latest solutions for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield

performance

DIY FRIENDLY

MSI motherboards been designed with tons of smart features for convenient setup and usage, such as pin-header keep out zone, friendly SATA & USB location and multiple cooling solutions, so DIY users can pick and choose any gaming rig they want.

Msi Trx40 Pro Wifi Motherboard in bd

EXHILARATING AND INSPIRING

Each MSI motherboard is built based on a specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through a huge surface and sleek but simple cuts in order to make the heatsink and appearance look ripped and powerful. Combined with neutral colors, such as black, grey, and silver, as the main background, the MSI motherboard can perfectly fit different RGB LED effects and strongly shows the users tunes.

Msi Trx40 Pro Wifi Motherboard in bd

STAY COOL FOR A RELIABLE SYSTEM

Cooling your PC is essential for reliable performance. MSI motherboards feature excellent power design with solid and heavy heatsinks. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.

Msi Trx40 Pro Wifi Motherboard in bd


REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI TRX40 Pro Wifi sTRX4 Atx Amd Motherboard Price in Bangladesh 2026 ?

The MSI Msi Trx40 Pro Wifi Price in BD is 49,500৳ . This MSI TRX40 Pro Wifi sTRX4 Atx Amd Motherboard Manufacturing by MSI Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI Msi Trx40 Pro Wifi by 49,500৳ and its regular price is 52,300৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
