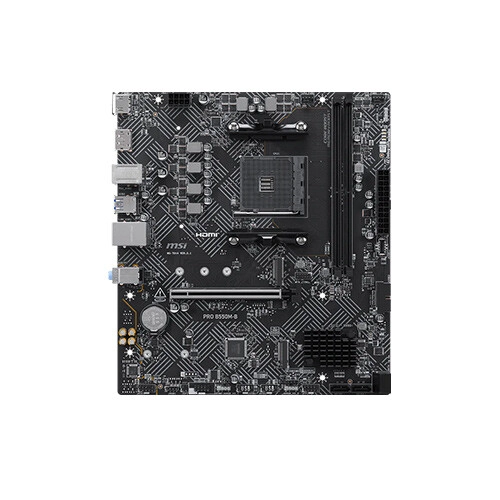

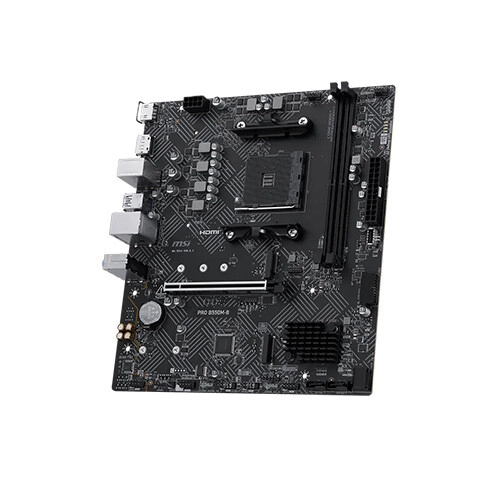

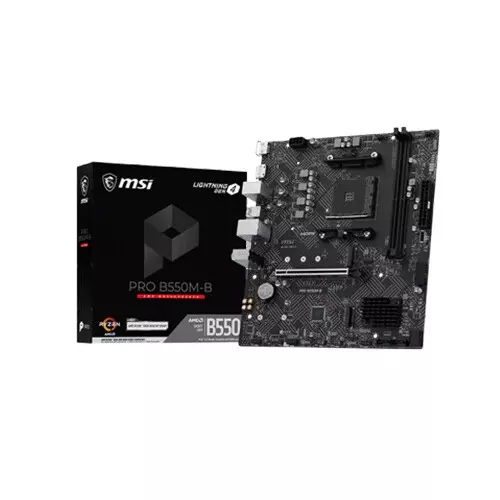

MSI PRO B550M-B AMD AM4 M-ATX Motherboard
- Memory Capacity - 64GB
- Memory Type - DDR4
- Form Factor - M-ATX
- Chipset - AMD B550
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Supports AMD Ryzen 5000 Series, 5000 G-Series,
4000 G-Series, 3000 Series and 3000
G-Series desktop processors
Socket AM4
AMD B550
Memory
2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 2667/ 2800 /2933 /
3000 /3066 /3200 /3466 /3600/ 3733 /3866 /
4000 /4133 /4266 /4400/ 4600+ MHz by
A-XMP OC MODE
Max. overclocking frequency:
1DPC 1R Max speed up to 4600+ MHz
1DPC 2R Max speed up to 3866+ MHz
Supports JEDEC Speed
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Memory Overclocking by A-XMP OC mode
Storage
Supports RAID 0, RAID 1, RAID 5,
and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and
RAID 10 for M.2 NVMe storage devices
Networking & Connectivity
Realtek RTL8111H 1Gbps LAN
Audio & Microphone
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Ports
1x HDMI
Support HDMITM 2.1,
maximum resolution of 4K 60Hz
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
3x Addressable V2 RGB LED
connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
HDMI
DisplayPort
Keyboard / Mouse
USB 5Gbps Type-A
LAN Port
Audio connectors
USB 2.0
USB 5Gbps Type-A
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x HDMI
Support HDMITM 2.1,
maximum resolution of 4K 60Hz
Software
Support for Windows 11 64-bit, Windows 10 64-bit
Physical Specification
mATX
Warranty Information
3 years
DESCRIPTION
MSI PRO B550M-B AMD AM4 M-ATX Motherboard in Bangladesh
MSI PRO B550M-B AMD AM4 M-ATX Motherboard is an excellent choice for users building a reliable AMD desktop. It supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series desktop processors with the AM4 socket. The AMD B550 chipset delivers dependable performance for gaming, productivity, and content creation. The motherboard features two DDR4 memory slots and supports up to 64GB of RAM. Memory speeds reach up to 4600+ MHz through A-XMP overclocking, ensuring smooth multitasking and faster system responsiveness. It also supports dual-channel memory, non-ECC unbuffered modules, and JEDEC memory standards for broad compatibility. The board offers flexible storage options with RAID support. Users can configure RAID 0, RAID 1, RAID 5, and RAID 10 for SATA drives. It also supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices. The integrated Realtek RTL8111H Gigabit LAN controller provides stable wired network performance for gaming, streaming, and office work. The motherboard provides multiple USB connectivity options, including USB 5Gbps Type-A and a front USB Type-C header. Internal headers support RGB lighting, addressable RGB devices, TPM 2.0, front USB ports, system fans, and front audio connections. The micro-ATX form factor fits compact and mid-sized desktop cases while maintaining excellent expandability. MSI builds this motherboard with quality components to ensure long-term stability and reliable daily operation. It supports both Windows 11 and Windows 10 64-bit operating systems. Whether you are assembling a gaming PC, workstation, or home computer, the MSI PRO B550M-B delivers dependable performance and excellent compatibility. It offers outstanding value for users seeking a feature-rich AMD motherboard. Buyers in Bangladesh can confidently choose this motherboard for a stable and future-ready desktop platform.
Buy MSI PRO B550M-B AMD AM4 M-ATX Motherboard in Bangladesh from Tech Land BD
Tech Land BD is one of the most trusted computer hardware retailers in Bangladesh. The store supplies 100% genuine MSI motherboards with an official warranty and reliable after-sales support. Customers enjoy competitive prices, secure payment methods, and fast nationwide delivery. The experienced team helps buyers choose compatible processors, RAM, storage, and other PC components. Tech Land BD focuses on authentic products and customer satisfaction. Buyers can shop online or visit the showroom with confidence. If you want the MSI M-ATX Motherboard at the best price in Bangladesh, Tech Land BD is the ideal destination.
FAQ
Which processors are compatible with the MSI PRO B550M-B?
The motherboard supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, 3000, and 3000 G-Series processors using the AM4 socket.
How much memory does the MSI PRO B550M-B support?
It supports up to 64GB DDR4 memory across two DIMM slots with overclocking speeds up to 4600+ MHz.
Does the MSI PRO B550M-B support RAID?
Yes. It supports RAID 0, 1, 5, and 10 for SATA drives and RAID 0, 1, and 10 for M.2 NVMe storage.
