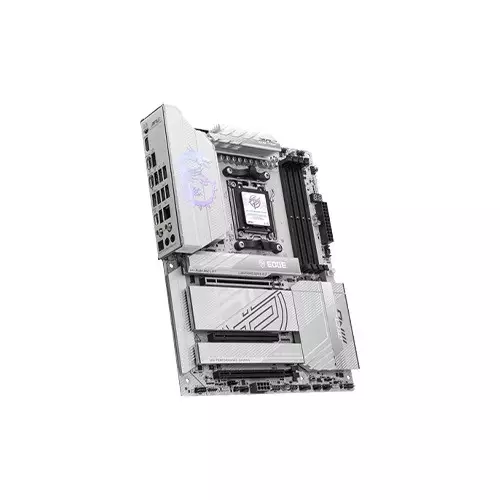

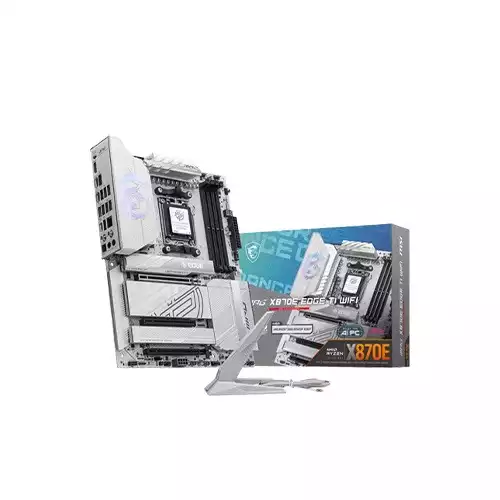

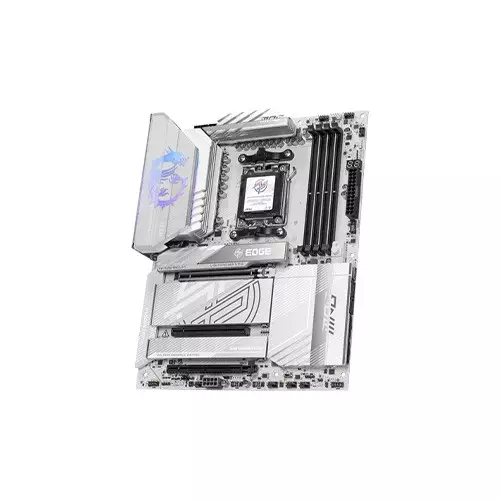

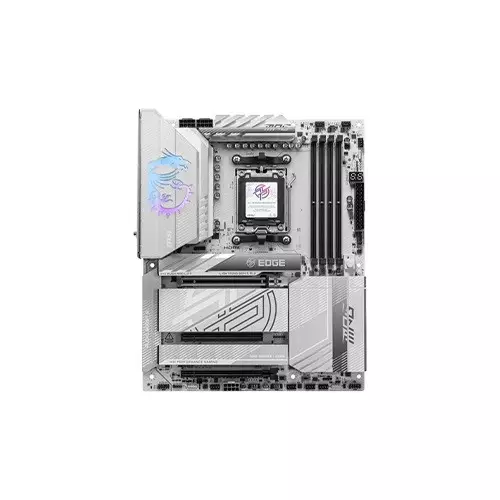

MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard
MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard
MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard - 1
MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard - 2
MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard - 3
MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard - 4

MSi MPG X870E EDGE TI WIFI AM5 AMD X870E DDR5 ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0402506481
Brand : MSI
Model : MPG X870E EDGE TI WIFI
Warranty : 3-Years
  • Form Factor - ATX / 243.84mmx304.8mm
  • Chipset - AMD X870E
  • CPU - Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
  • OPERATING SYSTEM - Support for Windows 11 64-bit
🎧 FREE HS35 V2 HEADSET WITH PC BUILD

Product Pricing

Night Offer Price 00:00:00

৳50,900 ৳54,500
+ Available Payment Method

EMI Start From*

৳1,792

SPECIFICATIONS

Processor

Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000

Series Desktop Processors Socket AM5

Mainboard

Chipset AMD X870E

Memory

Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8400+ MT/s

• 1DPC 2R Max speed up to 6400+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 4800+ MT/s



Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only*

Storage

Storage 4x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

4x SATA 6G



M.2_1 slot

• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)



M.2_2 slot

• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)

• Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)



* The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.

* USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4
bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You
can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.
The USB4 host controller supports up to PCIe 4.0 x4.

Graphics

Graphics 1x HDMI

Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*

2x Type-C DisplayPort

USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C,

maximum resolution of 4K@60Hz*

Networking & Connectivity

LAN 1x Realtek 8126 5G LAN
Bluetooth Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be



Supports Bluetooth 5.4**, MLO, 4KQAM



* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.

Bluetooth 5.4 will be ready in Windows 11 version 24H2.

Audio & Microphone

Audio Realtek ALC4080 Codec

7.1-Channel USB High-Performance Audio

Supports up to 32-Bit/384 kHz playback on front panel

Supports S/PDIF output

Ports

Slots 3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)



PCI_E1 slot

• Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)

• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)

• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
Internal I/O Ports 1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

6x System Fan

1x EZ Conn-header (JAF_2)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 20Gbps Type C ports

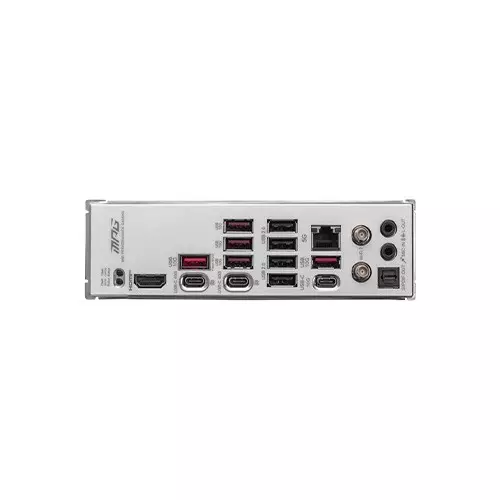

External I/O Ports Clear CMOS Button

USB 10Gbps Type-A

USB 2.0

5G LAN

Wi-Fi / Bluetooth

Audio Connectors

Flash BIOS Button

HDMI

USB 40Gbps Type-C

USB 10Gbps Type-A

USB 10Gbps Type-C

Optical S/PDIF Out
USB 4x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Front)

5x USB 10Gbps Type A (Rear)

1x USB 10Gbps Type C (Rear)

1x USB 20Gbps Type C (Front)

2x USB 40Gbps Type C (Rear)

Software

Operating System Support for Windows 11 64-bit

Others

Other Features RAID - Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices

Physical Specification

Color Black
Form Factor ATX

243.84mmx304.8mm

Technical Info

LED Type 4x EZ Debug LED

1x EZ Digi-Debug LED
Brand MSi
Model MPG X870E EDGE TI WIFI

Warranty Information

Warranty 3-Years

DESCRIPTION

MSI MPG X870E EDGE TI WIFI Motherboard Price in Bangladesh

MSI MPG X870E EDGE TI WIFI is a high-end ATX motherboard featuring the AMD X870E chipset, designed for AMD Ryzen 9000, 8000, and 7000 Series processors with AM5 socket. It delivers cutting-edge performance with DDR5 memory support up to 256GB, achieving speeds up to 8400+ MT/s (OC). Equipped with PCIe 5.0 x16 support, this motherboard is perfect for high-performance GPUs, ensuring seamless gaming, streaming, and content creation. Storage options include four M.2 slots, with dual PCIe 5.0 x4 support, making it future-proof for ultra-fast SSDs. Networking is top-tier with Realtek 5G LAN and Wi-Fi 7, ensuring high-speed internet connectivity. The USB4 (40Gbps) ports, HDMI 2.1 (8K@60Hz), and USB 20Gbps Type-C offer next-gen connectivity for peripherals and high-resolution displays. Featuring Realtek ALC4080 7.1-Channel HD Audio, customizable RGB lighting, and EZ Debug LEDs, the MSI MPG X870E EDGE TI WIFI is a premium choice for gamers, content creators, and PC enthusiasts. Available now at Tech Land BD with a 3-year warranty!


Which processors are supported by the MSI MPG X870E EDGE TI WIFI?

It supports AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket.

Does this motherboard support DDR4 RAM?

No, it exclusively supports DDR5 memory with speeds up to 8400+ MT/s (OC).

How many M.2 slots are available?

It has four M.2 slots, including two PCIe 5.0 x4 slots for ultra-fast NVMe SSDs.
