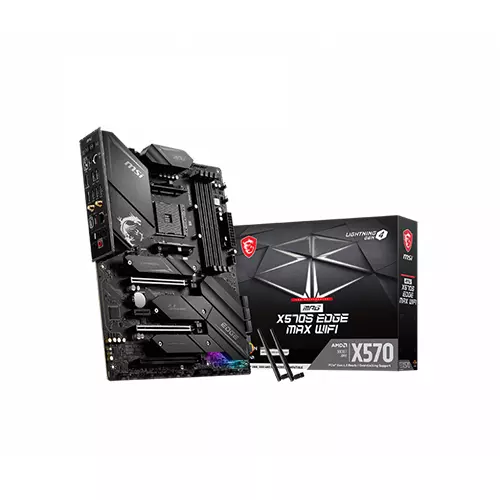

MSI MPG EDGE MAX WIFI X570S AM4 PCIE 4.0 ATX AMD MOTHERBOARD
MSI MPG EDGE MAX WIFI X570S AM4 PCIE 4.0 ATX AMD MOTHERBOARD

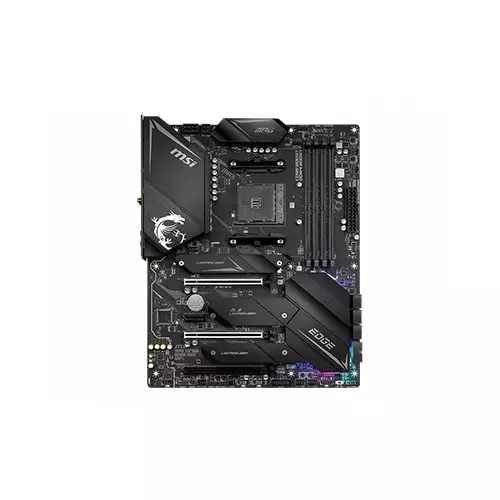

MSI MPG EDGE MAX WIFI X570S AM4 PCIE 4.0 ATX AMD MOTHERBOARD - 2

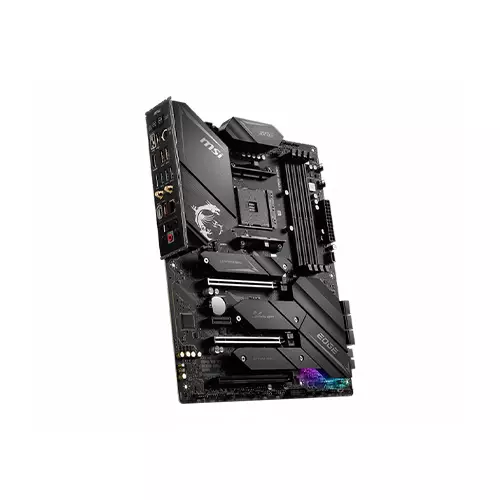

MSI MPG EDGE MAX WIFI X570S AM4 PCIE 4.0 ATX AMD MOTHERBOARD - 3
MSI MPG EDGE MAX WIFI X570S AM4 PCIE 4.0 ATX AMD MOTHERBOARD - 4

MSI MPG EDGE MAX WIFI X570S AM4 PCIE 4.0 ATX AMD MOTHERBOARD

0 Reviews
Stock : Discontinued
PID : P00025064893
SKU : TL-E MAXWIFIX570S
Brand : MSI
Model : MPG EDGE MAX WIFI X570S
Warranty : 3 Years
  • Form Factor ATX
  • CPU Socket AM4
  • Chipset AMD X570
  • Memory Type DDR4

SPECIFICATIONS

Processor

Supported CPU Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-
Series, 2000 Series and 2000 G-Series desktop processors
Supports Socket AM4

Mainboard

Chipset AMD X570 Chipset

Memory

Memory 4x DDR4 memory slots, support up to 128GB

Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1

Max frequency by A-XMP OC mode:

For Ryzen™ 5000 G-Series & 4000 G-Series processors

1DPC 1R Max speed up to 5300 MHz

1DPC 2R Max speed up to 4266 MHz

2DPC 1R Max speed up to 4400 MHz

2DPC 2R Max speed up to 3600 MHz

For Ryzen™ 5000 Series & 3000 Series processors

1DPC 1R Max speed up to 5100 MHz

1DPC 2R Max speed up to 4000 MHz

2DPC 1R Max speed up to 4000 MHz

2DPC 2R Max speed up to 3600 MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Storage

Supported Storage 6x SATA 6Gb/s ports (From X570 chipset)

3x M.2 slots (Key M)

Supports PCIe 4.0 / PCIe 3.0

PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors

Support SATA 6Gbps

M2_1 (From processor)

Supports 2242/ 2260/ 2280/ 22110 storage devices

M2_2 (From X570 chipset)

Supports 2242/ 2260/ 2280 storage devices

M2_31 (From X570 chipset)

Supports 2242/ 2260/ 2280 storage devices

Graphics

Multi-GPU Supports AMD CrossFire™ Technology
Graphics 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz

Networking & Connectivity

LAN 1x Realtek RTL8125B 2.5 Gbps LAN controller
WiFi Intel® Wi-Fi 6E AX210

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps
Bluetooth Supports Bluetooth® 5.2, FIPS, FISMA

Audio & Microphone

Audio Realtek® ALC4080 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Ports

Slots Supports PCIe 4.0 / PCIe 3.0

PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors

1x PCIe x16 slot (From processor)

PCI_E1 supports x16 for AMD Ryzen™ 5000 Series,5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors

PCI_E1 supports x8 for AMD Ryzen™ 2000 G-Series and 3000 G-Series desktop processors

2x PCIe x16 slots (From X570 chipset)

PCI_E3 supports x4

PCI_E4 supports 3.0 x1 only

1x PCIe 3.0 x1 slot (From X570 chipset)
Internal I/O Ports 1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x 4-pin ATX 12V power connector

6x SATA 6Gb/s connectors

3x M.2 slots (M-Key)

2x USB 2.0 connectors (support additional 4 USB ports)

2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports)

1x USB 3.2 Gen 2 10Gbps Type-C connector

1x 4-pin CPU fan connector

1x 4-pin water-pump connector

6x 4-pin system fan connectors

1x Front panel audio connector

2x System panel connectors

1x TPM module connector

1x Chassis Intrusion connector

1x 2-pin Thermal sensors connector

1x Tuning Controller connector

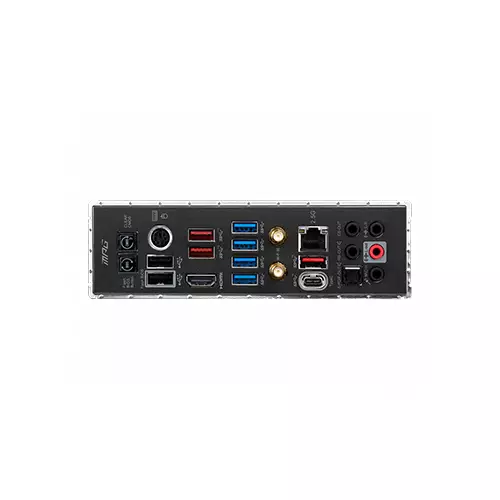

External I/O Ports Clear CMOS Button

Keyboard / Mouse

USB 3.2 Gen 2 10Gbps Type-A

2.5G LAN

Audio Connectors

Flash BIOS Button

USB 2.0

HDMI

USB 3.2 Gen 1 5Gbps Type-A

Wi-Fi / Bluetooth

USB 3.2 Gen 2 10Gbps Type-A/C

Optical S/PDIF Out
USB 1x USB 3.2 Gen 2 10Gbps Type-C internal connector

4x USB 3.2 Gen 1 5Gbps ports are available through internal USB connectors

2x USB 2.0 ports on the back panel

Asmedia® 1074 Chipset

4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

GL850G Hub

4x USB 2.0 ports are available through the internal USB connectors

AMD Processor

4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports
and 1 Type-C port on the back panel)

Physical Specification

Form Factor ATX Form Factor
Dimension 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Warranty Information

Warranty 2 years

DESCRIPTION

MSI MPG EDGE MAX WIFI X570S Motherboard

Take a step into the future with The MSI X570S EDGE MAX Wifi, here to support the very latest AMD Ryzen processors; bolstered with an arsenal of top-shelf modern features like; the latest 4th gen PCI-e and M.2 technologies, Type-C connectivity, DDR4 Memory boosts, a premium thermal design including aluminum cover, VRM heat pipes, and MOSFET baseplate Plus onboard M.2 Shield Frozr and incredible Wi-Fi 6e technology. The MSI X570S motherboards have what it takes to push the boundaries of performance into unknown territories, so buckle up and get ready for the ride of your life.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI MPG EDGE MAX WIFI X570S AM4 PCIE 4.0 ATX AMD MOTHERBOARD Price in Bangladesh 2026 ?

The MSI MPG EDGE MAX WIFI X570S Price in BD is 20৳ . This MSI MPG EDGE MAX WIFI X570S AM4 PCIE 4.0 ATX AMD MOTHERBOARD Manufacturing by MSI Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI MPG EDGE MAX WIFI X570S by 20৳ and its regular price is 22,220৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
