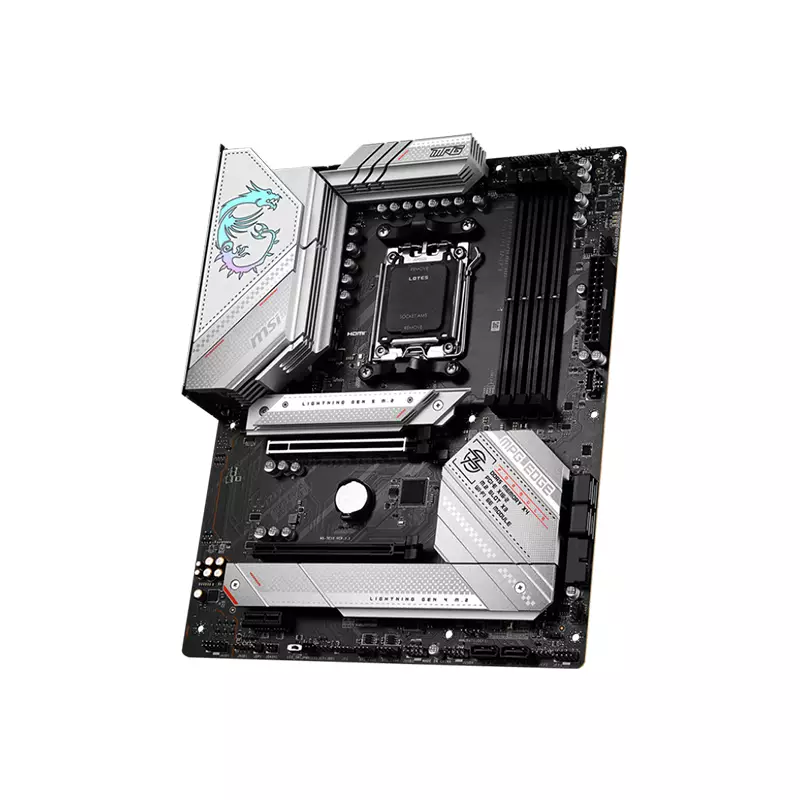

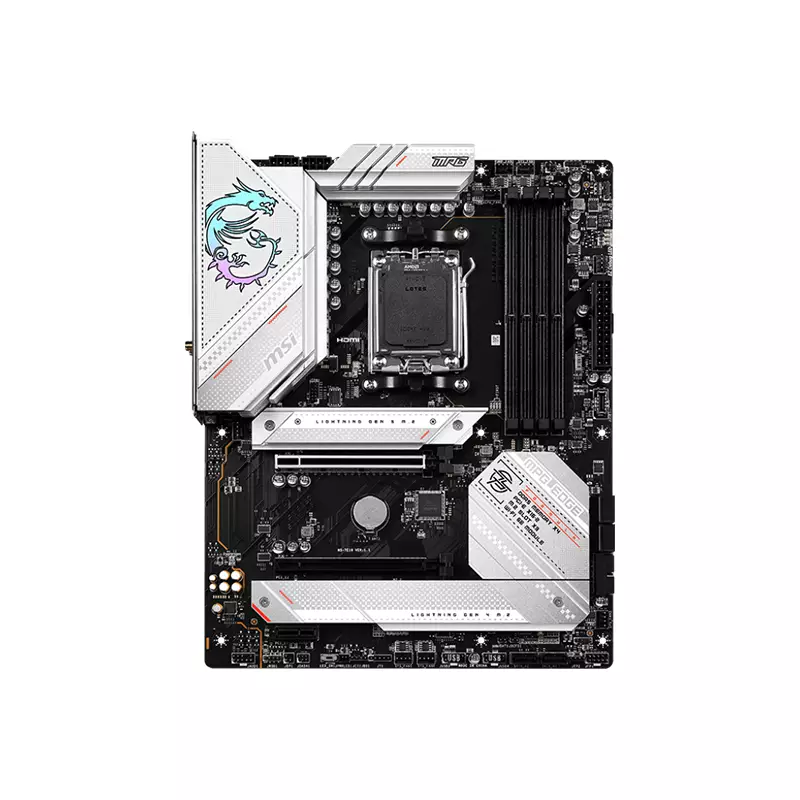

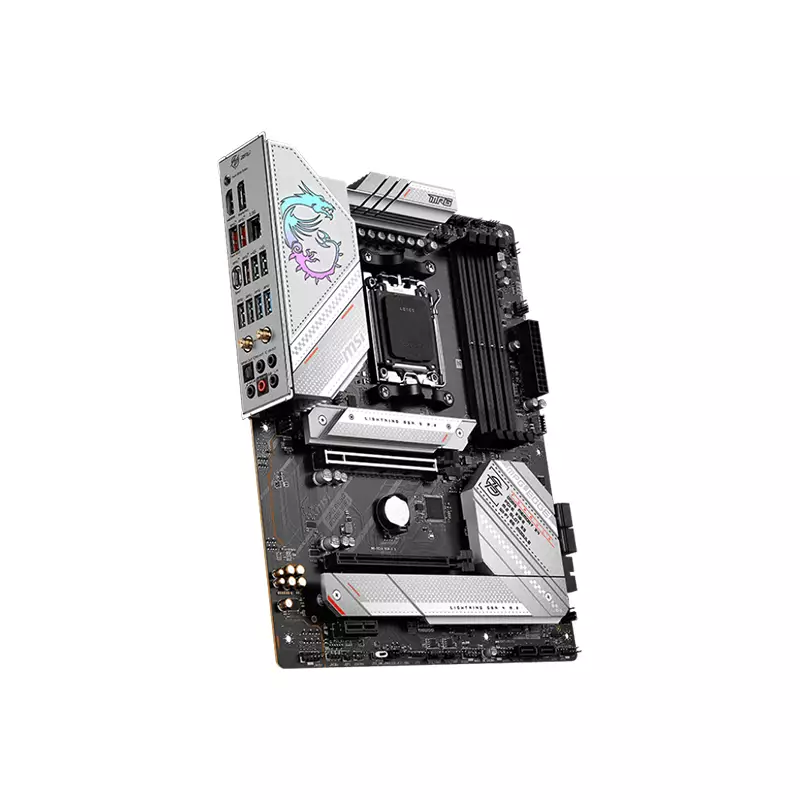

MSI MPG B650 EDGE WIFI AMD AM5 DDR5 ATX MOTHERBOARD
- Chipset: AMD B650
- Sockets Supported: AM5
- Memory Max.: 192GB
- Memory Slot: 4
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Socket AM5
Mainboard
Memory
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Storage
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
Graphics
Support HDMI 2.1 HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4 HBR3, maximum resolution of 8K 60Hz
Networking & Connectivity
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Audio & Microphone
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel

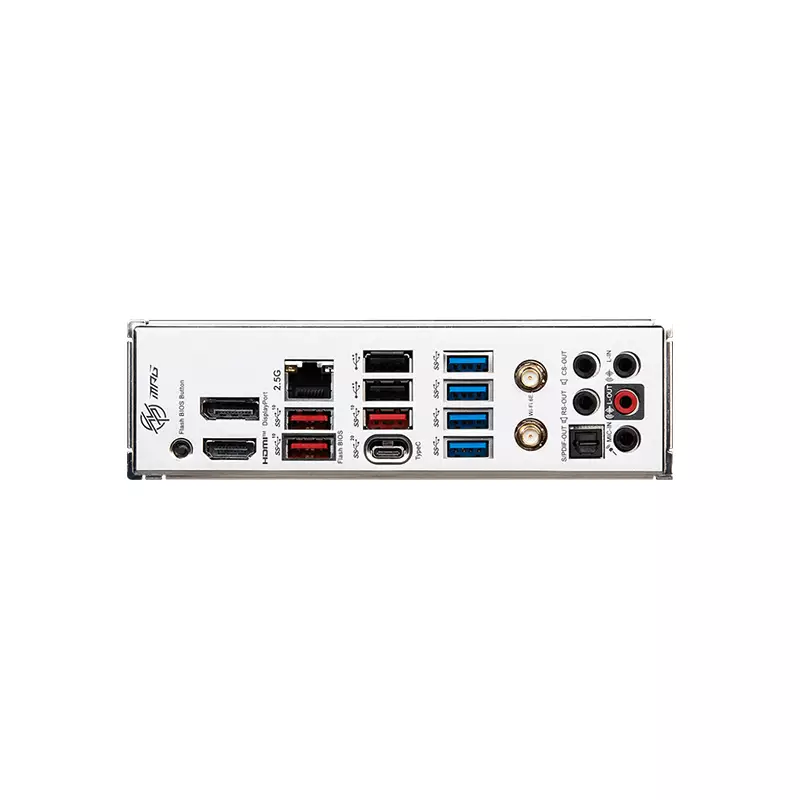

Ports
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
2.5G LAN
USB 2.0 (Type-A)
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 1 5Gbps (Type-A)
Optical S/PDIF Out
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
Software
Special Features
1x EZ LED Control switch
Others
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Physical Specification
Warranty Information
DESCRIPTION

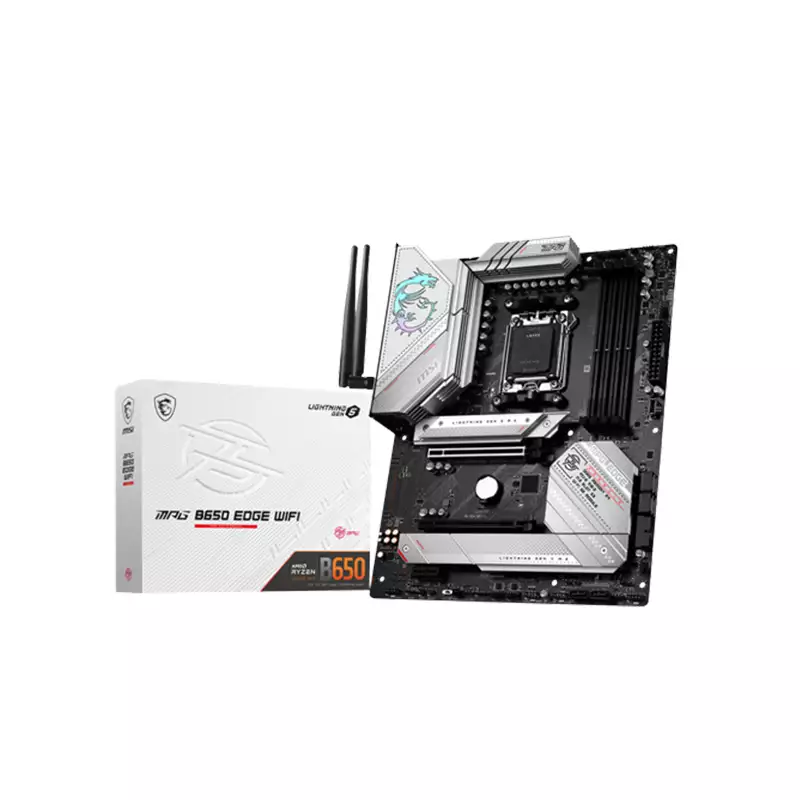

MSI MPG B650 EDGE WIFI AMD AM5 DDR5 ATX MOTHERBOARD
Introducing the MSI MPG B650 EDGE WIFI AMD AM5 DDR5 ATX Motherboard, a powerhouse of technological innovation designed to elevate your computing experience. Engineered with the state-of-the-art AMD B650 chipset, this motherboard seamlessly supports the latest AMD Ryzen™ 7000 Series Desktop Processors with its AM5 socket. Accompanied by 4x DDR5 memory slots, offering an astonishing maximum capacity of 192GB, the memory support ranges from DDR5 4800 (JEDEC) MHz to overclocked speeds of DDR5 6000+ MHz. The onboard graphics boast 1x HDMI™ 2.1 HDR and 1x DisplayPort 1.4 HBR3, delivering up to 4K 60Hz and 8K 60Hz resolutions respectively, exclusively available on processors featuring integrated graphics. The motherboard's expansion slot configuration includes 2x PCI-E x16 slots, 1x PCI-E x1 slot, and a variety of PCIe speeds, ensuring seamless connectivity for all your expansion needs. With 3x M.2 and 6x SATA 6G storage options, including support for RAID configurations, this motherboard offers versatile storage solutions. Connectivity is further enhanced by USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, and USB 3.2 Gen2x2 ports, while networking capabilities are driven by Realtek® 2.5Gbps LAN and AMD Wi-Fi 6E. The audio experience is enriched by the Realtek® ALC4080 Codec, providing high-performance 7.1-channel USB audio. The motherboard's internal I/O boasts various connectors for power, fans, RGB LED, and more, while its back panel is equipped with an array of ports including DisplayPort, 2.5G LAN, USB, Wi-Fi/Bluetooth, and audio connectors. Designed to support both Windows® 11 64-bit and Windows® 10 64-bit operating systems, this motherboard comes with a generous 3-year warranty, reflecting MSI's commitment to quality and performance. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Motherboard available at Techland BD is well recognized. The large selection of MSI Motherboard available at Techland BD is well recognized.
