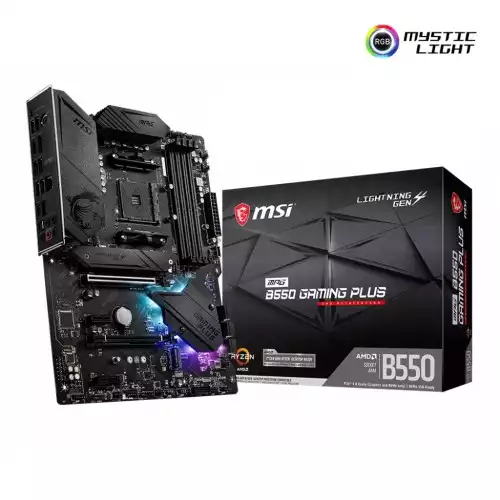

MSI MPG B550 GAMING PLUS MOTHERBOARD
|
CPU
| - Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
|
CHIPSET
| |
MEMORY
| - 4x DDR4 memory slots, support up to 128GB 1
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4400 MHz
- 1DPC 2R max speed 3866 MHz
- 2DPC 1R max speed 4000 MHz
- 2DPC 2R max speed 3600 MHz
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
|
EXPANSION SLOT
| - 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
- 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
- 2x PCIe 3.0 x1 slots
|
GRAPHICS
| - MULTI-GPU
- Supports 2-Way AMD CrossFire™ Technology
- Onboard
- 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
- 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
- Maximum shared memory of 16 GB
|
STORAGE
| - AMD B550 Chipset
- 6x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 slot (from AMD Processor)
- Supports PCIe 4.0/ 3.0 x4 1
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0x4
- Supports 2242/ 2260/ 2280 storage devices
|
USB
| - AMD B550 Chipset
- 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
- AMD Processor
- 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
- 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
|
AUDIO
| - Realtek® ALC1200 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
|
| NETWORKING | - LAN
- 1x Realtek® RTL8125B 2.5Gbps LAN controller
|
INTERNAL CONNECTORS
| - 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1xTPM module connector
- 1x Clear CMOS jumper
|

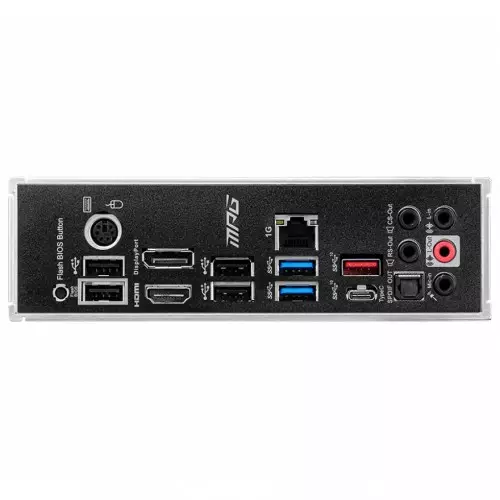

BACK PANEL PORTS
| - PS/2 Combo Port
- DisplayPort
- LAN Port
- USB 3.2 Gen 2 10Gbps (Type-A)
- HD Audio Connectors
- Flash BIOS Button
- USB 2.0
- HDMI
- USB 2.0
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 3.2 Gen 2 10Gbps (Type-C)
- Optical S/PDIF OUT
|
MSI MPG B550 GAMING PLUS MOTHERBOARD Comes with 03 years warranty
|

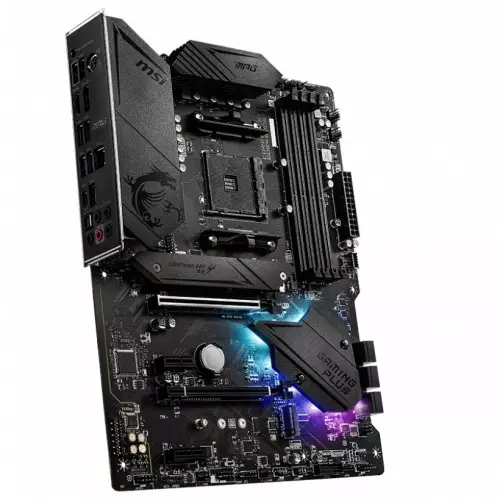

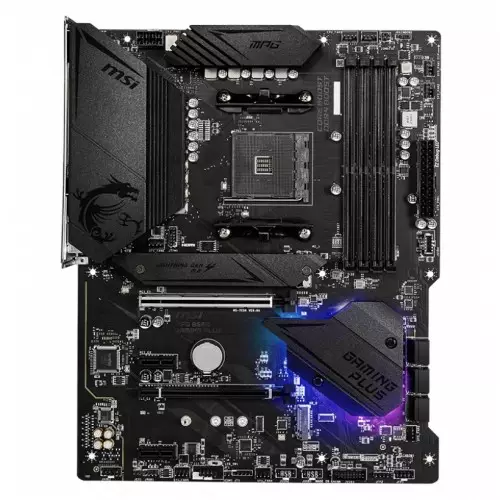

MSI MPG B550 GAMING PLUS MOTHERBOARD Overview:
The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.
MSI MPG B550 GAMING PLUS MOTHERBOARD Features:
- Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
- Supports DDR4 Memory, up to 4400(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
- Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
- Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
- Audio Boost: Reward your ears with studio grade sound quality
