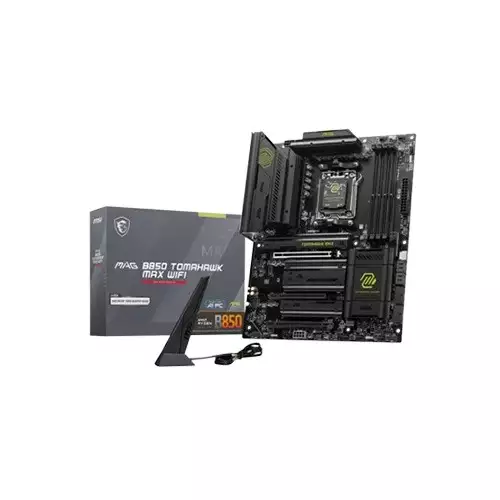

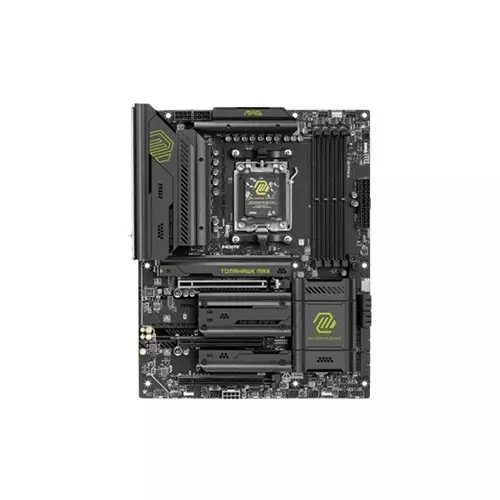

MSi MAG B850 Tomahawk MAX Wifi AM5 AMD B850 DDR5 ATX Motherboard
- Chipset - AMD B850
- Form Factor - ATX 243.84mmx304.8mm
- Socket - Socket AM5
- Supported CPU - Supports AMD Ryzen 9000/ 8000/ 7000
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Mainboard
Memory
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
Networking & Connectivity
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Audio & Microphone
7.1-Channel High Definition Audio
Ports
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors
)
• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
* PCI_E2, PCI_E3 & PCI_E4 share the bandwidth, PCI_E3 slot will run at x2
speed when installing devices in the PCI_E2 or PCI_E4 slot.
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)

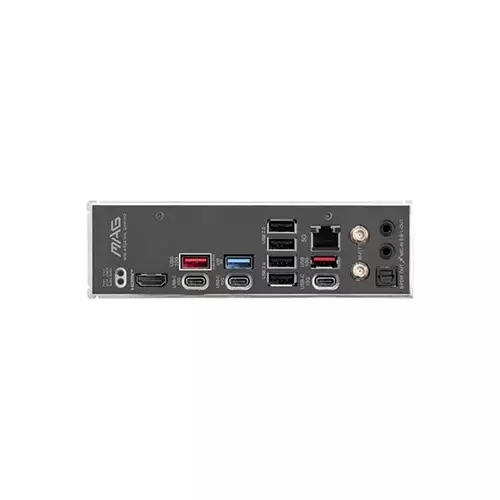

4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
Physical Specification
243.84mmx304.8mm
Technical Info
Warranty Information
DESCRIPTION
MSI MAG B850 Tomahawk MAX WiFi AM5 ATX Motherboard Price in Bangladesh
MSI MAG B850 Tomahawk MAX WiFi AM5 DDR5 ATX Motherboard is a powerful and future-ready platform, engineered for gamers and PC enthusiasts looking to harness the full potential of AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Featuring the latest AMD B850 chipset and Socket AM5, this motherboard supports cutting-edge DDR5 memory up to 8200+ MHz (OC), allowing for blazing-fast data access and unparalleled multitasking. Its robust 4x DDR5 UDIMM slots support a max of 256GB dual-channel memory with AMD EXPO and JEDEC speeds. Designed with gamers in mind, the board includes Wi-Fi 7 for ultra-fast wireless connectivity and Realtek 8126VB 5G LAN for low-latency, high-speed wired networking. The four PCI-E x16 slots, including one with PCIe 5.0 x16 bandwidth, ensure compatibility with next-gen graphics cards and expansion devices. For content creators and gamers alike, it offers extensive connectivity options, including USB 10Gbps Type-A and Type-C ports, HDMI 2.1 (4K@60Hz), and multiple ARGB headers for personalized lighting setups. With enhanced cooling capabilities, including support for multiple fans and AIO pumps, and durable build quality, the MSI MAG B850 Tomahawk MAX stands as a premium choice for high-performance PC builds. Now available at Tech Land BD, get the best deal on this feature-rich motherboard and elevate your AMD-powered system to the next level.
Is this motherboard compatible with Ryzen 7000 series CPUs?
Yes, it fully supports Ryzen 9000, 8000, and 7000 Series processors.
Does it support PCIe 5.0 for graphics cards?
Yes, the primary PCI_E1 slot supports PCIe 5.0 x16 for next-gen GPUs.
Can I use DDR4 RAM with this motherboard?
No, it only supports DDR5 memory modules.
