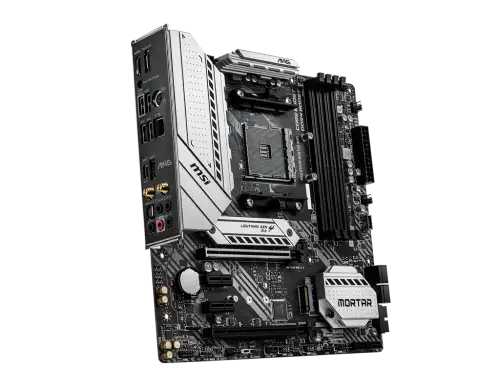

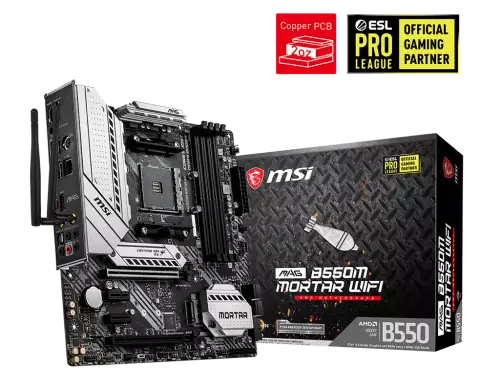

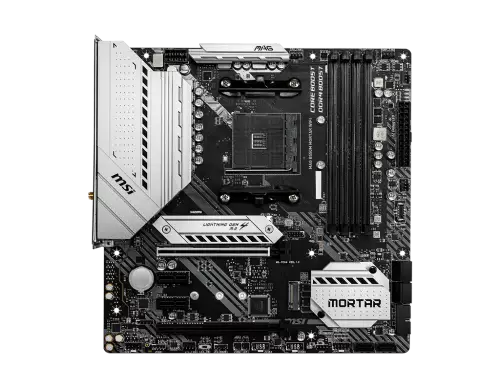

MSI MAG B550M MORTAR WiFi MOTHERBOARD
MSI MAG B550M MORTAR WiFi MOTHERBOARD
MSI MAG B550M MORTAR WiFi MOTHERBOARD - 1
MSI MAG B550M MORTAR WiFi MOTHERBOARD - 2
MSI MAG B550M MORTAR WiFi MOTHERBOARD - 3

MSI MAG B550M MORTAR WiFi MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0402506027
Brand : MSI
Model : MAG B550M MORTAR WiFi
Warranty : 3 years
  • Chipset: AMD B550 Chipset
  • Supported CPU: AM4 socket 3rd
  • LAN: Realtek RTL8125B
  • Form Factor: Micro-ATX

Product Pricing

Discount Price

৳18,200 ৳18,500
+ Available Payment Method

EMI Start From*

৳641

SPECIFICATIONS

Processor

Supported CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors

Mainboard

Chipset AMD B550 Chipset

Memory

Memory 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(JEDEC)/ 3000(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

Storage

Supported Storage 6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices

Networking & Connectivity

LAN 1x Realtek® RTL8125B 2.5G LAN

Audio & Microphone

Audio 7.1-Channel High Definition Audio
Supports S/PDIF output

Ports

Slots 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1
1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2
2x PCIe 3.0 x1 slots
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

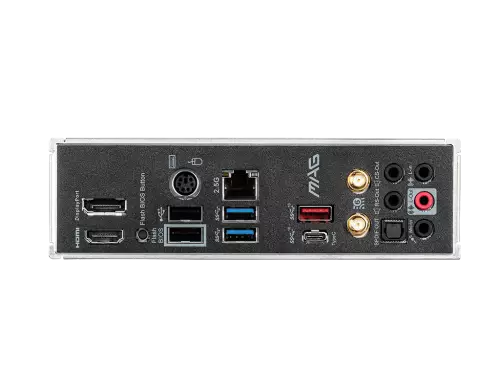

External I/O Ports DisplayPort
PS/2 Combo Port
2.5G LAN Port
USB 3.2 Gen 2 10Gbps (Type-A)
HD Audio Connectors
HDMI Port
Flash BIOS Button
USB 2.0 port
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
Optical S/PDIF OUT
USB 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
HDMI 1x HDMI

Physical Specification

Form Factor Micro-ATX

Warranty Information

Warranty 03 Years Warranty

DESCRIPTION

MSI MAG B550M MORTAR WIFI MOTHERBOARD

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers.

  • Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4400+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™
