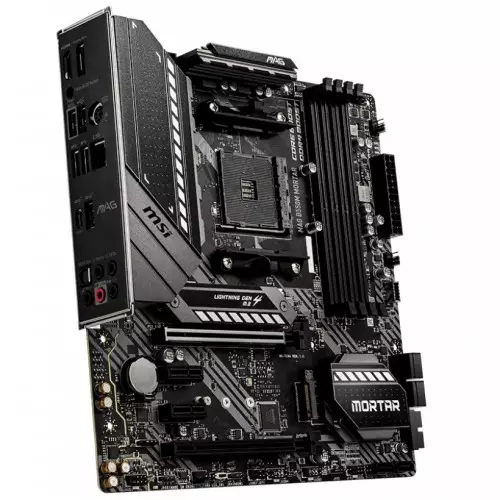

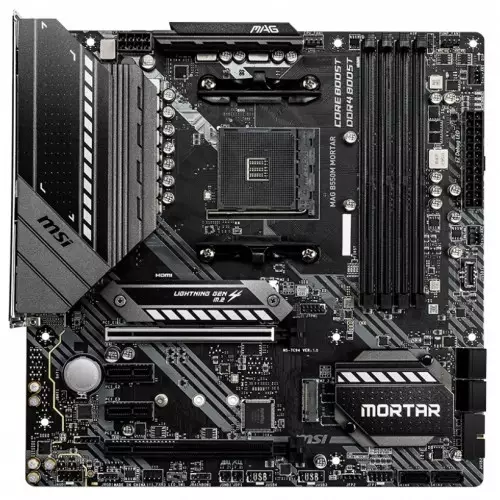

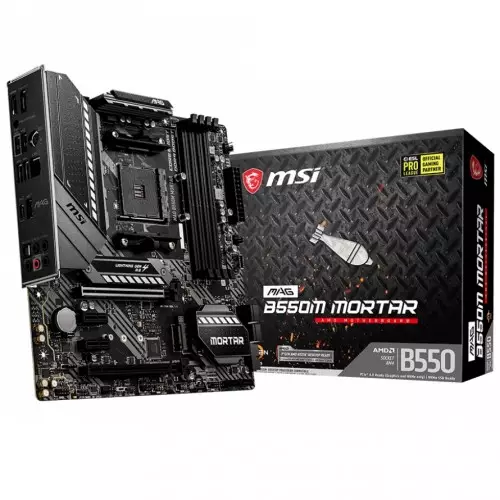

MSI MAG B550M MORTAR MOTHERBOARD
MSI MAG B550M MORTAR MOTHERBOARD
MSI MAG B550M MORTAR MOTHERBOARD - 0
MSI MAG B550M MORTAR MOTHERBOARD - 1
MSI MAG B550M MORTAR MOTHERBOARD - 2

MSI MAG B550M MORTAR MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0402506020
Brand : MSI
Model : MAG B550M MORTAR
Warranty : 3 years
  • CHIPSET: AMD B550 Chipset
  • CPU: Supports AM4 socket 3rd Gen AMD Ryzen
  • PS/2 Combo Port
  • 7.1-Channel High Definition Audio

Product Pricing

Discount Price

৳15,900 ৳16,200
+ Available Payment Method

EMI Start From*

৳560

DESCRIPTION

MSI MAG B550M MORTAR MOTHERBOARD

CPU
  • Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
CHIPSET
  • AMD B550 Chipset
MEMORY
  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
  • 1DPC 1R max speed 4400 MHZ
  • 1DPC 2R max speed 3733 MHZ
  • 2DPC 1R max speed 3866 MHZ
  • 2DPC 2R max speed 3466 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory
EXPANSION SLOT
  • 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1
  • 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2
  • 2x PCIe 3.0 x1 slots
ONBOARD GRAPHICS
  • Supports 2-Way AMD CrossFire™ Technology
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
  • Maximum shared memory of 16GB
STORAGE
  • AMD B550 Chipset
  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
  • M2_1 slot (from AMD processor)
  • Supports PCIe 4.0/ 3.0 x4 1
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_2 slot (from AMD B550 chipset)
  • Supports PCIe 3.0x4
  • Supports 2242/ 2260/ 2280 storage devices
USB
  • AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
  • AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
AUDIO and LAN
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
  • 1x Realtek® RTL8125B 2.5Gbps LAN controller
INTERNAL CONNECTORS
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 3x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper

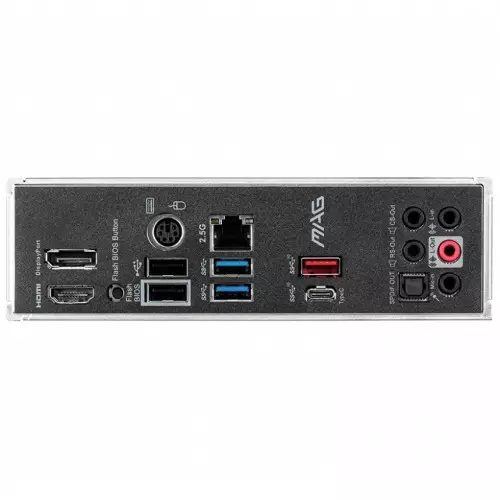

BACK PANEL PORTS
  2. DisplayPort
  3. PS/2 Combo Port
  4. 2.5G LAN Port
  5. USB 3.2 Gen 2 10Gbps (Type-A)
  6. HD Audio Connectors
  7. HDMI Port
  8. Flash BIOS Button
  9. USB 2.0 port
  10. USB 3.2 Gen 1 5Gbps (Type-A)
  11. USB 3.2 Gen 2 10Gbps (Type-C)
  12. Optical S/PDIF OUT
MSI MAG B550M MORTAR MOTHERBOARD Comes with 03 years warranty

MSI MAG B550M MORTAR MOTHERBOARD Overview:


The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

MSI MAG B550M MORTAR MOTHERBOARD Features:

  • Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
  • Supports DDR4 Memory, up to 4400+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
  • Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
  • 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
  • Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
  • Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™
