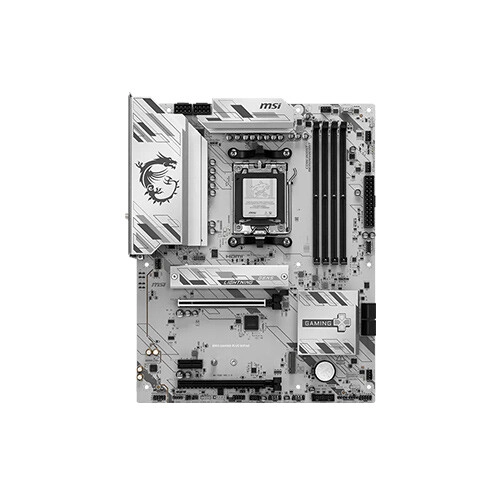

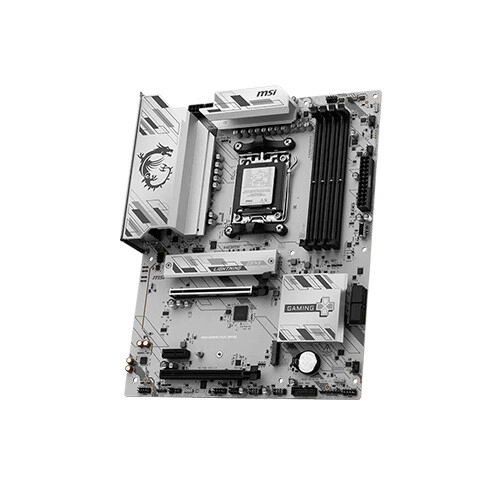

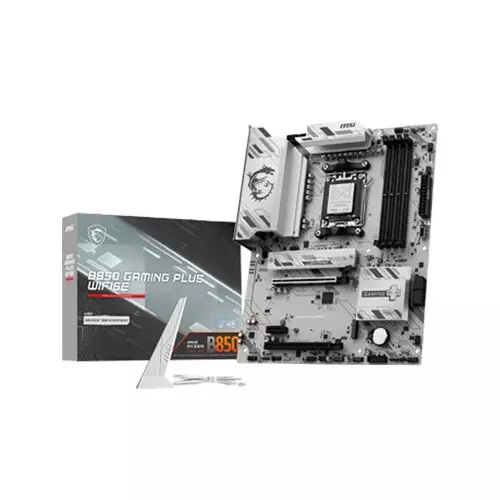

MSI B850 GAMING PLUS WIFI6E AMD ATX Motherboard
- Memory size - 256GB
- Memory type - DDR5
- Chipset - AMD B850
- Form Factor - ATX
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
AMD B850
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200 - 5600
(OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors
max. overclocking frequency:
1DPC 1R Max speed up to 8200+ MT/s
1DPC 2R Max speed up to 6400+ MT/s
2DPC 1R Max speed up to 6400+ MT/s
2DPC 2R Max speed up to 6000+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and
AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock
Driver bypass mode only
Storage
Supports RAID 0, RAID 1 and RAID
10 for SATA storage devices
Supports RAID 0 and RAID 1
for M.2 NVMe storage devices
2x M.2
M.2_1 Source (From CPU) supports
up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports
up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
Supports up to PCIe 5.0 x4
(For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4
(For Ryzen 8000 Series processors)
M2_2 slot
Supports up to PCIe 4.0 x4
(For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
Supports up to PCIe 4.0 x2
(For Ryzen 8500/ 8300 Series processors)
Networking & Connectivity
Realtek 8125D 2.5G LAN
Wi-Fi 6E Solution
The Wireless module is pre-installed
in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX,
2.4GHz / 5GHz / 6GHz
(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.3, FIPS, FISMA
Audio & Microphone
Realtek ALC897
7.1-Channel High Definition Audio
Ports
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
Supports PCIe 4.0 x16 (For Ryzen
9000/ 7000 Series processors)
Supports PCIe 4.0 x8
(For Ryzen 8700/ 8600/ 8400 Series processors)
Supports PCIe 4.0 x4
(For Ryzen™ 8500/ 8300 Series processor)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED
connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
Clear CMOS Button

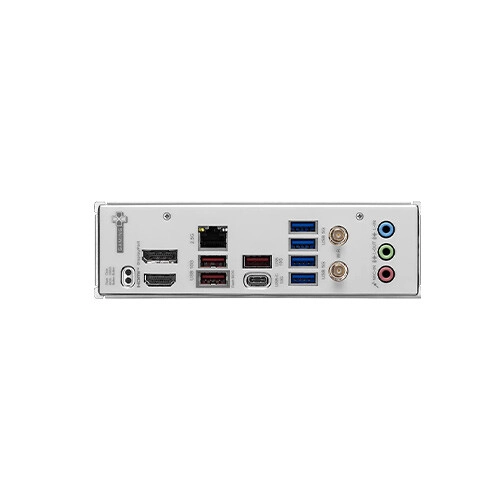

DisplayPort 1.4
2.5G LAN
USB 10Gbps (Type-A)
Wi-Fi / Bluetooth
HD Audio Connectors
Flash BIOS Button
HDMI
USB 10Gbps (Type-A)
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x HDMI
Support HDMI 2.1,
maximum resolution of 4K 60Hz
Software
Support for Windows 11 64-bit
Others
LED FEATURE - 4x EZ Debug LED
1x EZ Memory Detection LED
Physical Specification
ATX
243.84mmx304.8mm
Warranty Information
3 years
DESCRIPTION
MSI B850 GAMING PLUS WIFI6E AMD ATX Motherboard in Bangladesh
MSI B850 GAMING PLUS WIFI6E AMD ATX Motherboard is a powerful platform for gamers, creators, and PC enthusiasts who want reliable performance and future-ready features. It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors through the latest AM5 socket. The AMD B850 chipset delivers excellent stability for gaming, content creation, and everyday computing. The motherboard supports up to 256GB of DDR5 memory across four DIMM slots and offers memory overclocking speeds up to 8200+ MT/s with compatible Ryzen processors. AMD EXPO support helps users achieve higher memory performance with ease. For storage, the board features two M.2 slots and four SATA 6Gb/s ports. The primary M.2 slot supports PCIe 5.0 x4 SSDs, while the second slot supports PCIe 4.0 x4 SSDs for high-speed storage performance. RAID support for both SATA and NVMe drives adds flexibility for advanced storage configurations.
Bluetooth 5.3 provides reliable wireless connectivity for peripherals. The Realtek ALC897 7.1-channel high-definition audio codec delivers clear and immersive sound for gaming, movies, and music. Rear connectivity includes USB 10Gbps Type-A and Type-C ports, HDMI 2.1, DisplayPort 1.4, Flash BIOS button, and a Clear CMOS button. Internal connectors support USB Type-C, RGB lighting, multiple system fans, TPM 2.0, and front-panel USB connectivity. MSI also includes EZ Debug LEDs and EZ Memory Detection LED to simplify troubleshooting during system assembly. The ATX form factor provides ample expansion options for gaming builds and workstation PCs. Designed for performance, stability, and easy upgrades, the MSI B850 GAMING PLUS WIFI6E AMD ATX Motherboard is an excellent foundation for a next-generation AMD system. Buy the MSI B850 GAMING PLUS WIFI6E AMD ATX Motherboard at the best price in Bangladesh from Tech Land BD with an official warranty and dependable after-sales support.
Buy MSI B850 GAMING PLUS WIFI6E AMD ATX Motherboard in Bangladesh from Tech Land BD
TechLand BD is one of the leading destinations for genuine MSI ATX motherboards in Bangladesh. The store offers authentic motherboards at competitive prices with official warranty support. Customers receive expert advice, fast nationwide delivery, and dependable after-sales service. Every product comes from trusted sources to ensure quality and reliability. Tech Land BD helps gamers, professionals, and PC builders choose the right hardware for every budget. If you want genuine MSI products and excellent customer service, Tech Land BD is the best place to buy the MSI B850 GAMING PLUS WIFI6E motherboard.
Which processors are compatible with the MSI B850 GAMING PLUS WIFI6E?
It supports AMD Ryzen 9000, Ryzen 8000, and Ryzen 7000 Series desktop processors with the AM5 socket.
What is the maximum supported memory?
The motherboard supports up to 256GB DDR5 memory across four DIMM slots with speeds up to 8200+ MT/s (OC).
Does this motherboard support PCIe 5.0 SSDs?
Yes. The primary M.2 slot supports PCIe 5.0 x4 NVMe SSDs with compatible Ryzen processors.
