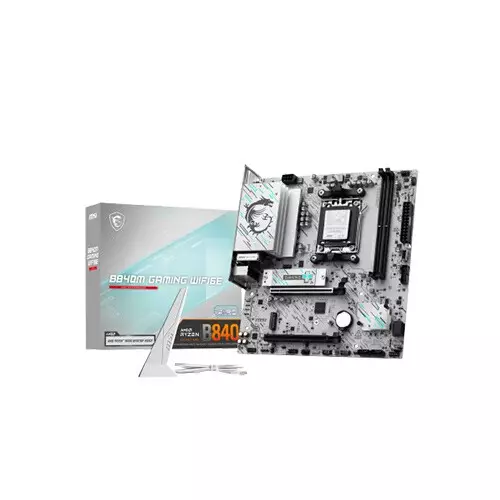

MSI B840M GAMING WIFI6E DDR5 AM5 mATX Motherboard

MSI B840M GAMING WIFI6E DDR5 AM5 mATX Motherboard

0 Reviews
Stock : Up Coming
PID : P0332508009
Brand : MSI
Model : B840M GAMING WIFI6E
Warranty : No Warranty
  • Chipset - AMD B840
  • BIOS - Flash BIOS Button
  • Supported RAM - 2x DDR5
  • Graphics Output - 1x HDMI

SPECIFICATIONS

Processor

Supported CPU

Supports AMD Ryzen 9000/ 8000/
7000 Series Desktop Processors

Socket AM5
Chipset

AMD B840

Mainboard

BIOS

Flash BIOS Button

Memory

Memory

Type -

DDR5

Slots -

2 x UDIMM

Supported Memory

Memory Support DDR5 8000 - 5600
(OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen 9000 Series Processors max.
overclocking frequency:

1DPC 1R Max speed up to 8000+ MT/s

1DPC 2R Max speed up to 7200+ MT/s

Supports AMD POR Speed and
JEDEC Speed

Supports Memory Overclocking
and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver
bypass mode only

Maximum Memory -

128GB

Storage

Raid

Supports RAID 0, RAID 1 and
RAID 10 for SATA storage devices
Supported Storage

2x M.2

M.2_1 Source (From CPU)
supports up to PCIe 4.0 x4 ,
supports 2280/2260 devices

M.2_2 Source (From CPU)
supports up to PCIe 4.0 x4 ,
supports 2280/2260 devices

4x SATA 6G

Graphics

Graphics

Graphics

1x HDMI

Support HDMI 2.1,
maximum resolution of 4K 60Hz

1x DisplayPort

Support DisplayPort 1.4,
maximum resolution of 4K 60Hz

Networking & Connectivity

LAN

Realtek 8125D 2.5G LAN
WiFi

Wi-Fi 6E Solution

The Wireless module is
pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX,
2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth

Supports Bluetooth 5.3, FIPS, FISMA

Audio & Microphone

Audio

Realtek ALC897 Codec

7.1-Channel High Definition Audio

1x Front Audio (JAUD)

Ports

Slots

PCI -

2x PCI-E x16 slot

PCI_E1 Gen PCIe 4.0
supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0
supports up to x4 (From Chipset)

PCI_E1 slot

Supports PCIe 4.0 x16
(For Ryzen 9000/ 7000 Series processors)
Supports PCIe 4.0 x8
(For Ryzen 8700/ 8600/ 8400 Series processors)

Supports PCIe 4.0 x4
(For Ryzen 8500/ 8300 Series processor)

M.2 Socket -

2x M.2

M.2_1 Source (From CPU)
supports up to PCIe 4.0 x4 ,
supports 2280/2260 devices

M.2_2 Source (From CPU)
supports up to PCIe 4.0 x4 ,
supports 2280/2260 devices

4x SATA 6G
Internal I/O Ports

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

3x Addressable V2 RGB LED
connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 5Gbps Type A ports

1x USB 5Gbps Type C ports

TPM (Trusted Platform Module )

1x TPM pin header(Support TPM 2.0)
External I/O Ports

Clear CMOS Button

USB 5G

2.5G LAN

Wi-Fi / Bluetooth

Audio connectors

Flash BIOS Button

HDMI™

DisplayPort

USB 2.0
USB

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 5Gbps Type A (Rear)

2x USB 5Gbps Type A (Front)

1x USB 5Gbps Type C (Front)
HDMI

1x HDMI 2.1

Special Features

Special Features

4x EZ Debug LED

1x EZ Memory Detection LED

Physical Specification

Form Factor

mATX

226mmx243.84mm

Warranty Information

Warranty

3 years

DESCRIPTION

MSI B840M GAMING WIFI6E DDR5 AM5 mATX Motherboard in Bangladesh

MSI B840M GAMING WIFI6E DDR5 AM5 mATX Motherboard (White), available at Tech Land BD, is a stylish and efficient choice for gamers and professionals building compact systems with AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket with the AMD B840 chipset. Supporting up to 128GB of DDR5 memory across two UDIMM slots, it offers overclocking speeds up to 8000+ MT/s for Ryzen 9000 series, delivering high performance for gaming and multitasking. Its Wi-Fi 6E provides ultra-fast wireless speeds up to 2.4Gbps, complemented by a Realtek 2.5G LAN for robust wired connectivity. The motherboard features two M.2 slots, both supporting PCIe 4.0 x4 for Ryzen 9000/7000 series, and four SATA 6G ports with RAID 0, 1, and 10 support for flexible storage configurations. The PCIe 4.0 x16 slot ensures compatibility with modern GPUs, enhanced by the EZ PCIe Clip II for easy installation. For visuals, it includes HDMI 2.1 and DisplayPort 1.4, both supporting 4K at 60Hz, paired with Realtek ALC897 for immersive 7.1-channel HD audio. The board offers a variety of USB ports, including USB 5Gbps Type-C, and features like EZ Debug LEDs and a user-friendly BIOS with AI Boost and Latency Killer for optimized performance. Its sleek white design, combined with M.2 Shield Frozr and Frozr AI Cooling, ensures efficient thermal management. Purchase the MSI B840M GAMING WIFI6E from Tech Land BD to create a compact, high-performance PC tailored for gaming and productivity in Bangladesh.

Does it support Intel 12th/13th/14th Gen CPUs?

Yes, it supports Intel LGA 1700 processors, including 12th, 13th, and 14th Gen Core i3/i5/i7/i9.


What type of RAM does it support?

It supports DDR4 memory (up to 5333+ MHz OC) in dual-channel mode.


Does it have built-in Wi-Fi?

Yes, it features Wi-Fi 6E (802.11ax) and Bluetooth 5.2 for wireless connectivity.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI B840M GAMING WIFI6E DDR5 AM5 mATX Motherboard Price in Bangladesh 2026 ?

The MSI B840M GAMING WIFI6E Price in BD is 19,500৳ . This MSI B840M GAMING WIFI6E DDR5 AM5 mATX Motherboard Manufacturing by MSI Comes With No Warranty Warranty & Based on 0 reviews. Tech Land BD Offers you MSI B840M GAMING WIFI6E by 19,500৳ and its regular price is 21,000৳ Which is also Up Coming Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
