MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard
MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard

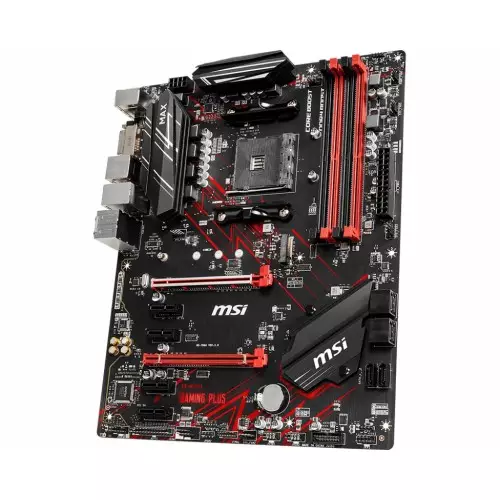

MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard - 1

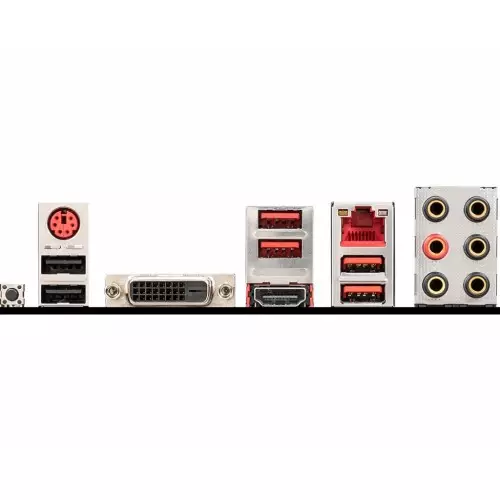

MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard - 2

MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025061884
Brand : MSI
Model : B450 GAMING PLUS MAX
Warranty : 3 Years
  • Chipset: AMD B450 Chipset
  • Supported CPU: 2nd and 3rd Gen AMD Ryzen
  • LAN: 1 x Realtek 8111H
  • Audio: AMD B450 Chipset

SPECIFICATIONS

Processor

Supported CPU Supports 1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4

Mainboard

Chipset AMD B450 Chipset

Memory

Memory Type : DDR4
Slots : 4 x DDR4 memory slots, support up to 64GB
Supported Memory - Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- For AMD Ryzen Gen3 (R5/R7/R9)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
- For AMD Other CPU
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
Maximum Mamory MAX MEMORY (GB): 64

Storage

Supported Storage AMD CPU:
2 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)1
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
AMD B450 Chipset:
4 x SATA 6Gb/s ports

Graphics

Graphics Graphics - 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz1
- 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1
- Only support when using Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics and Athlon with Radeon Vega Graphics processors
Max Shared Memory - Maximum shared memory of 2048 MB

Networking & Connectivity

LAN - 1 x Realtek 8111H Gigabit LAN controller

Audio & Microphone

Audio AMD B450 Chipset

Ports

Slots 1 x PCIe 3.0 x16 slot (PCI_E1)
1st, 2nd and 3rd Gen AMD Ryzen support x16 mode
Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support x8 mode
Athlon with Radeon Vega Graphics support x4 mode
1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
4 x PCIe 2.0 x1 slots1
M.2 Socket - 1 x M.2 slot (Key M)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Parallel port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors
USB AMD B450 Chipset:
- 2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
- 2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
- 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal
USB 2.0 connectors)
AMD CPU:
- 2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
HDMI - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz

Physical Specification

Form Factor ATX

Warranty Information

Warranty 03 Years

DESCRIPTION

MSI B450 GAMING PLUS MAX Motherboard

MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 and DDR4 Memory, up to 4133(OC) MHz. You will get Lightning Fast Game experience with TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology. Here is added Core Boost with premium layout and fully digital power design to support more cores and provide better performance, DDR4 Boost with Advanced technology to deliver pure data signals for the best gaming performance and stability with Audio Boost that reward your ears with studio grade sound quality for the most immersive gaming experience. And also you simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card. This AMD MSI motherboard is built with Flash BIOS Button, Gaming Device Port, LAN Port, AMD Turbo USB 3.2 Gen2 and Golden Audio Jacks. In this motherboard the Core Boost supports more cores and provide better performance. Gaming heatsinks with Passion Red scheme for maximum cooling and performance, DDR4 Boost optimized traces and isolated memory circuitry, Turbo M.2 NVMe support, up to 32 Gb/s using PCI-Express Gen3 x4, Supports STORE MI. The PCI-E Steel Armor protecting VGA cards against bending and EMI and PCI-E Steel Slot protecting VGA cards against bending and Audio Boost is built with amplifier which optimized gaming audio using best components, with Nahimic3. MSI motherboards are designed to make the system assembly process as convenient as possible. An array of system tuning features and troubleshooting tools are available to ease installation and setup. xperience.

[product_table id="34" limit="10" type="filter" filter_category="7271"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard Price in Bangladesh 2026 ?

The MSI B450 GAMING PLUS MAX Price in BD is 52,000৳ . This MSI B450 GAMING PLUS MAX AM4 AMD ATX Motherboard Manufacturing by MSI Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI B450 GAMING PLUS MAX by 52,000৳ and its regular price is 55,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
