MSI B450 GAMING PRO CARBON AC AMD Socket AM4 Motherboard
- Chipset: AMD® B450 Chipset
- Supported CPU: Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ wit...
- LAN: 1(Intel® I211AT)
- Slots: 1 x PCIe 3.0 x16 slot (PCI_E1) Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation
SPECIFICATIONS
Processor
Mainboard
Memory
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz(by A-XMP OC MODE)
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Storage
4 x SATA 6Gb/s ports1
1 x M.2 slot (M2_2, Key M)1
Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices
AMD® CPU
1 x M.2 slot (M2_1, Key M)1
Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
2 x SATA 6Gb/s ports1
Graphics
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz2
Networking & Connectivity
Audio & Microphone
7.1-Channel High Definition Audio
Supports S/PDIF output
Ports
Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors
Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors
Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1,2
3 x PCIe 2.0 x1 slots2
DisplayPort
Wi-Fi / Bluetooth
LAN Port
HD Audio Connectors
BIOS Flashback Button
USB 2.0 Port
HDMI Port
USB 3.1 Gen1
USB 3.1 Gen2 Type-A + C
Optical S/PDIF OUT
MSI

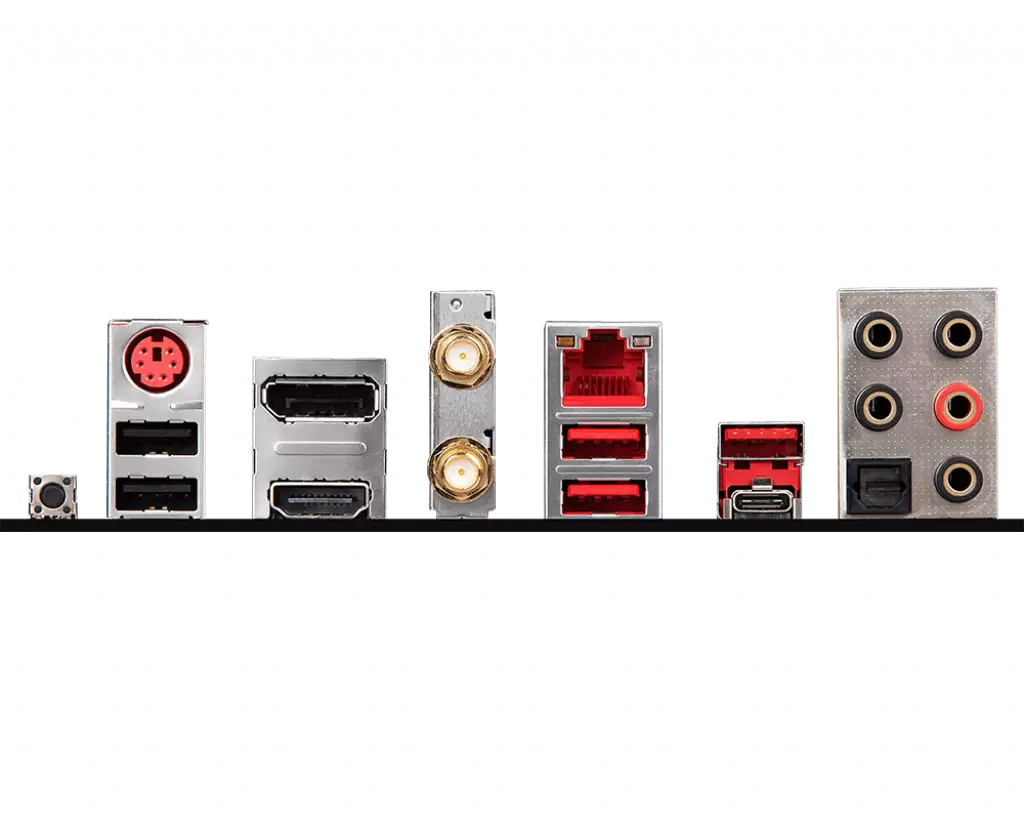

B450 GAMING PRO CARBON AC back panel ports
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB 3.1 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® CPU
2 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
Physical Specification
Warranty Information
DESCRIPTION

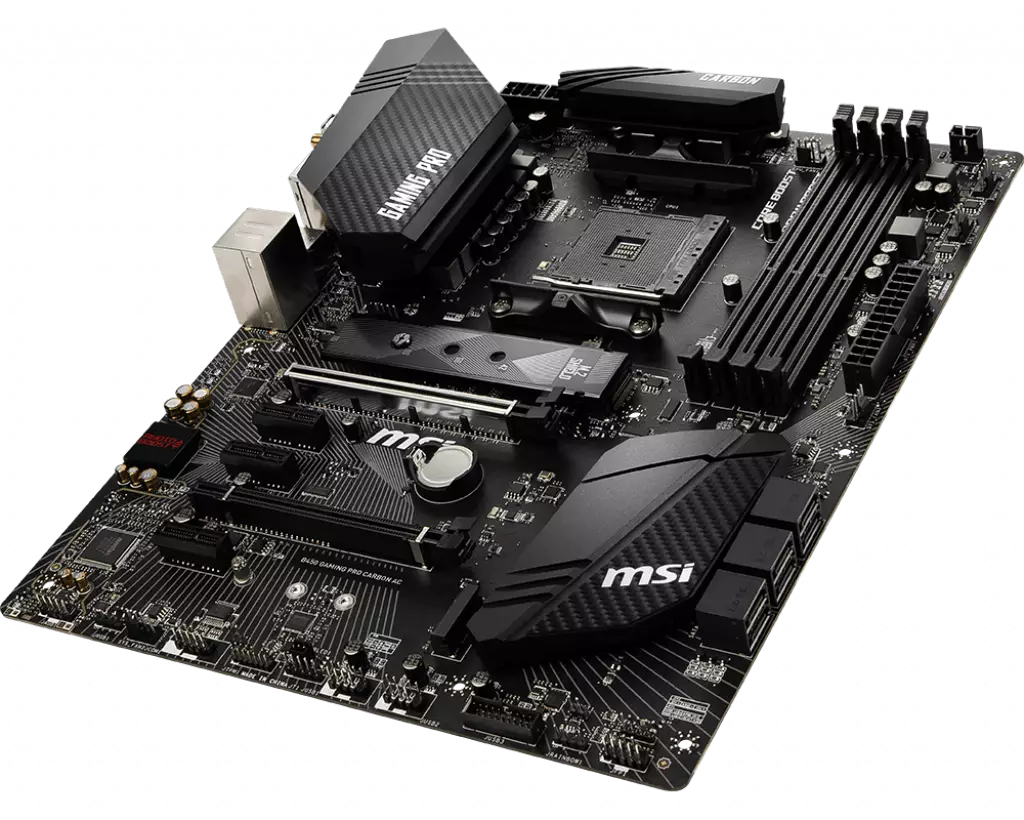

MSI B450 GAMING PRO CARBON AC Motherboard
●︎ Supports AMD Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
●︎ Supports DDR4-3466(OC) Memory
●︎ Mystic Light and Mystic Light Sync: 16.8 million colors / 17 effects in one click. Synchronize RGB/RAINBOW strips and other RGB solutions for customization.
●︎ Lightning Fast Game experience: TURBO M.2 with M.2 Shield, StoreMI, AMD Turbo USB 3.1 GEN2
●︎ Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality for the most immersive gaming experience
●︎ Set Core Power Free: Core Boost, 8+4 pin CPU power connector, Extended Heatsink Design
●︎ Core Boost: With premium layout and digital power design to support more cores and provide better performance.
●︎ DDR4 Boost: Give your DDR4 memory a performance boost with A-XMP
●︎ GAMING LAN and Wireless support, powered by Intel®: The best online gaming experience with lowest latency and bandwidth management.
●︎ MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire™
●︎ BIOS FLASHBACK+: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
●︎ In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost
●︎ GAMING CERTIFIED: 24-hour on and offline game and motherboard testing by eSports players.. Click here for more more information about MSI B450 GAMING PRO CARBON AC AMD Motherboard
**3 years warranty.
| Related Video: |

STAY COOL WHILE GAMING
Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.
YOUR IN-GAME ADVANTAGE
Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.
BE THE FIRST ON THE BATTLEFIELD
This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.
IMMERSE YOURSELF INTO VIRTUAL WORLDS
Integrating the very best of cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.
SOUND THAT PULLS YOU INTO THE GAME
Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay.
DOMINATE THE GAME WITH THE LOWEST LATENCY
Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.
A GAMERS' BIOS
We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.
